Zamel PCM-07/U Instruction Manual

PCM-07/U TIME RELAY
DESCRIPTION
The multifunctional digital time relay
PCM-07/U has a time function in automa-
tion and control systems. It is equipped
with 25 independent operating modes
released by power supply voltage or an
external impulse command on S terminal
(coming from L or N line). It has a really
wide time adjustment range from 0,1 sec.
to 99 h 59 min. 59,9 sec. And it has per-
manent switch on / switch off functions by
means of IN input. The mode change is
possible without waiting for the current cy-
cle to be finished.
FEATURES
● 25 operating modes (external release
or from power supply voltage),
● double-modular casing with a security
cover,
● S input (start) and an additional IN
control input (permanent switch on /
switch off),
● time measure accuracy,
● wide time adjustment range,
● permanent switch on or switch off
function,
● voltage relay output – two change over
contacts of max 16 A capacity,
● LCD display backlight,
● double-modular casing,
● TH-35 DIN rail installation.
The device is designed for
single-phase installation and
must be installed in accor-
dance with standards valid
in a particular country. The
device should be connected
CAUTION
according to the details inc-
luded in this operating manual. Installation,
connection and control should be carried
out by a qualified electrician staff, who act
in accordance with the service manual and
the device functions. Disassembling of the
device is equal with a loss of guarantee
and can cause electric shock. Before in-
stallation make sure the connection cables
are not under voltage. The cruciform head
screwdriver 3,5 mm should be used to in-
stal the device. Improper transport, storage,
and use of the device influence its wrong
functioning.
It is not advisable to instal the device in the
following cases: if any device part is missing
or the device is damaged or deformed. In
case of improper functioning of the device
contact the producer.
The symbol means selective
collecting of electrical and electronical
equipment. It is forbidden to put
the used equipment together
with other waste
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Power supply terminals: A1, A2
Input rated voltage: 24÷250 V AC, 30÷300 V DC
Nominal frequency: 50 / 60 Hz
Rated power consumption: 2 W / 14 VA
Operating mode release terminals: S, S
Permanent switch on/switch off terminals: IN, IN
Number of operating modes: 25
Operating modes: manual, automatic
Time adjustment range t: 0,1 sec ÷ 99 h 59 min 59,9 sec
Time adjustment accuracy: 0,1 s
LCD display backlight: amber
Time measure accuracy: max. ±3 s / 24 h with 25 °C
Hold up programme time: 10 years
Receiver input (supply) terminals: 11, 12, 14, 21, 22, 24
Output relay parameters: 2 NO/NC 16 A 250 V AC1 4000 VA
Number of terminal clamps: 12
Section of connecting cables: 0,2 ÷ 2,50 mm
Ambient temperature range: -20 ÷ +60
Operating position: freely
Protection degree: IP20 (PN-EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Reference standards: PN-EN 60730-1; PN-EN 60730-2-7

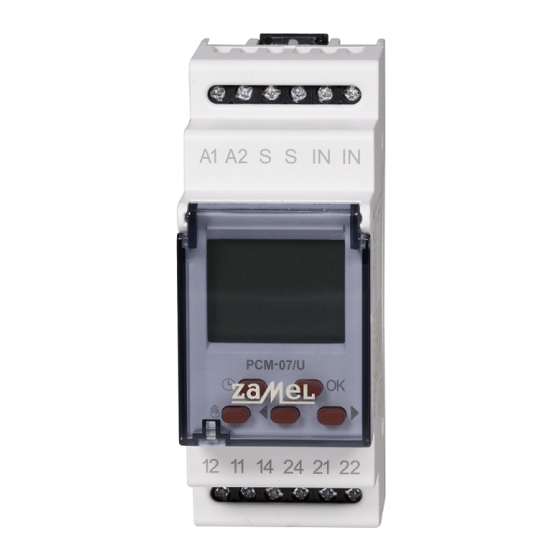

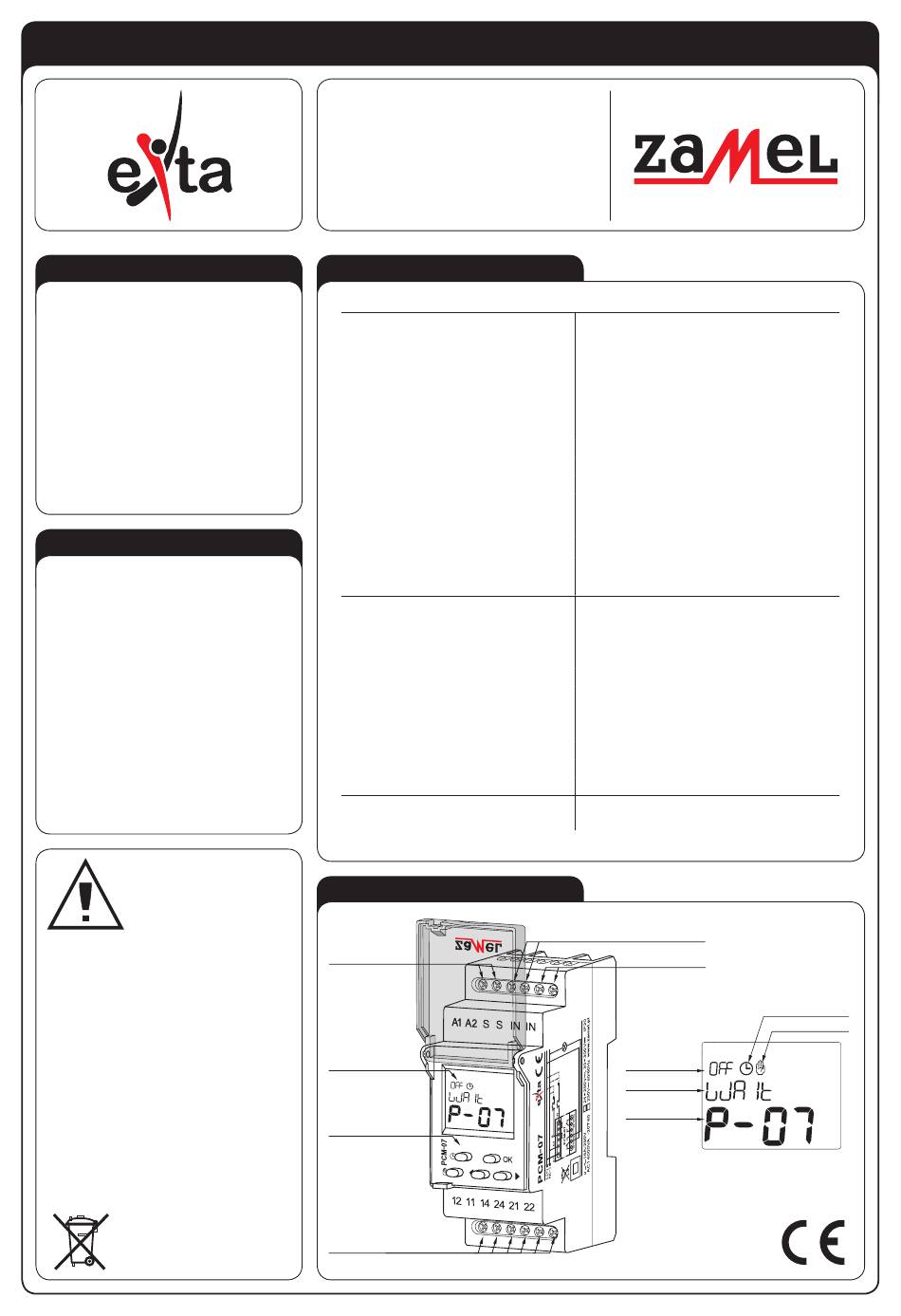

APPEARANCE
Power supply terminals
(A1, A2)
LCD display
Control push buttons
Relays output (supply) terminals
(12, 11, 14, 24, 21, 22)
INSTRUCTION MANUAL
PCM-07/U
2
C
o
Mounting: rail TH 35 (PN-EN 60715)
Dimensions: double-modular (35 mm) 90x35x66 mm
Weight: 0,130 kg
PN-EN 61000-4-2,3,4,5,6,11
Operating mode release
terminals (S, S)
Permanent
switch on/switch off
terminals (IN, IN)
Relay mode
Information field
Operating mode
number or time
adjustment number
Automatic mode
Manual mode
VER. 002_01.09.2009
