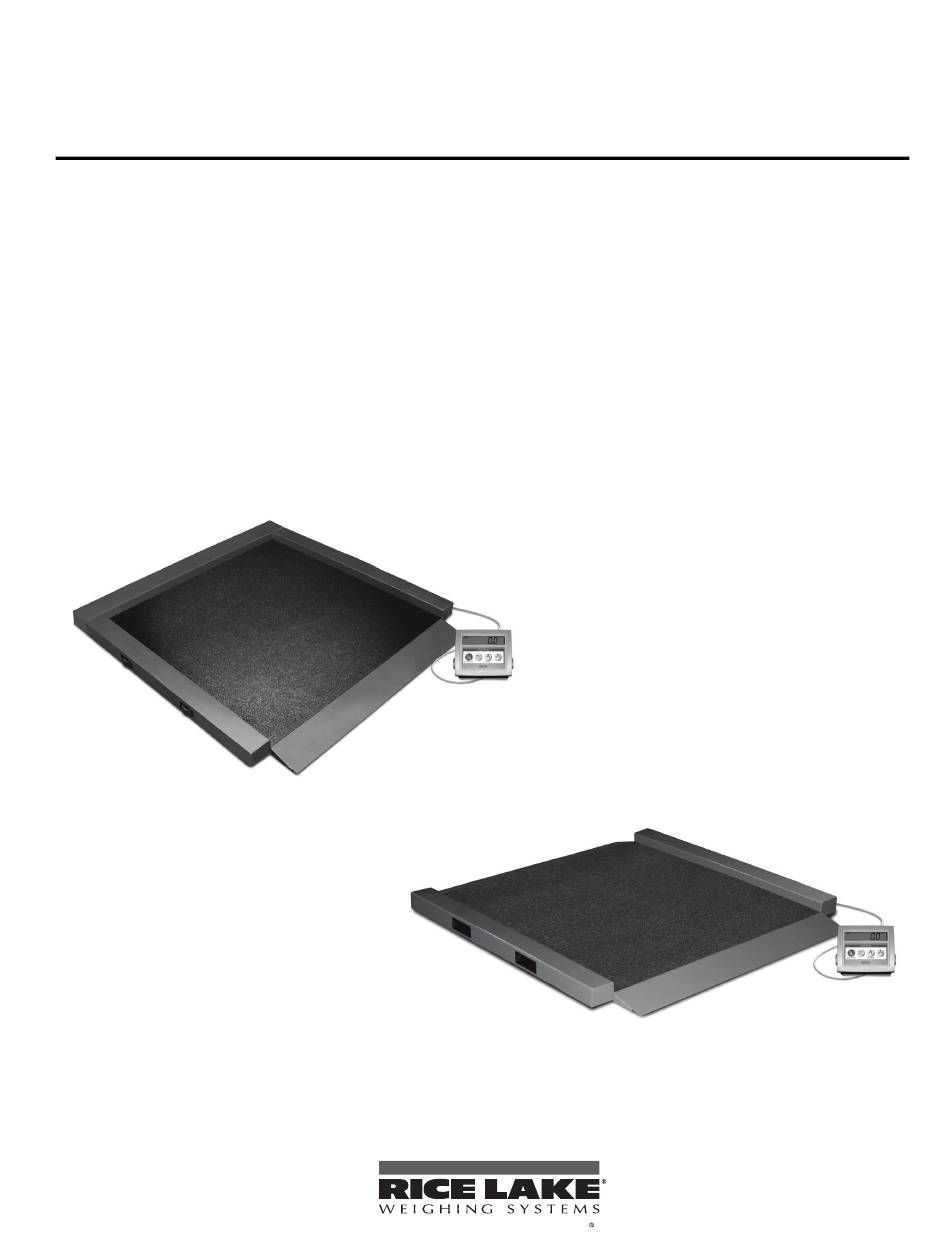

- Page 1 Rice Lake Bariatric Wheelchair Wheelchair Scale Software Revision 11387 Operation Manual To be the best by every measure 114724...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com or obtained by calling 715-234-9171 and asking for the training department October 2010 Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America Specifications subject to change without notice. - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Rice Lake Bariatric Wheelchair Scale Operation Manual...
-
Page 5: Introduction And System Overview

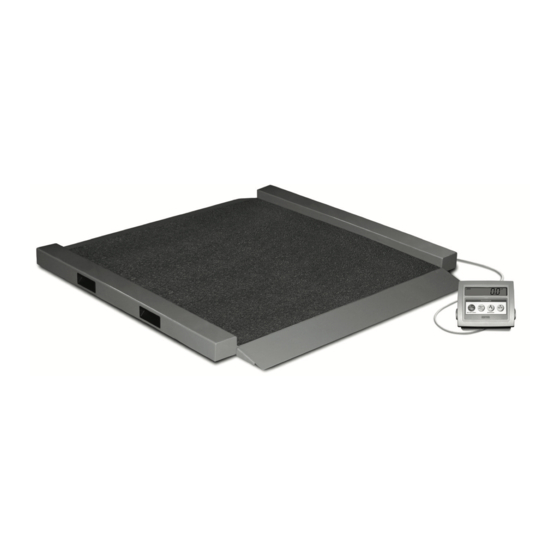

The Rice Lake Bariatric Wheelchair Scale is a fully electronic, low profile floor scale that measures 34 in x 34 in (.86 m x .86 m), and has a capacity up to 1000 lbs (500 kg). The Rice Lake Bariatric Wheelchair uses four corner-mounted, alloy steel shear beam load cells, with the cells recessed into the frame channels for protection. -
Page 6: Scale Setup
Wheelchair Scale. Unpacking Your Scale The Rice Lake Bariatric Wheelchair Scale comes shipped in a wooden two piece box. Place the unopened box in an open area that has ample room for unpacking the scale. Recommended tools needed to set up your scale include: •... -
Page 7: Scale Feet Adjustment
4. Stand the scale on its side so that the plastic packaging material can be removed. Figure 2-2. Remove Plastic Wrapping off of Scale Scale Feet Adjustment The scale feet are shipped attached to the scale. Adjustments need to be made in order for the scale to sit properly on the floor. -
Page 8: Cable Connections
Figure 2-5. Indicator Cable Exiting the Side of the Scale Platform 5. When the interface cable is protected and in its final position, complete connections to the indicator as described in Section 3.1. Rice Lake Bariatric Wheelchair Scale Operation Manual... -
Page 9: Indicator Setup
Indicator Setup To protect the indicator during transit, the indicator is shipped in a separate box inside the main shipping container. The following sections apply to indicator connections and setup. Load Cell Connections Your scale comes with ten feet of load cell cable which comes from the bottom of the scale (shown in Figure 3-1). -
Page 10: Ac Power Connections
AC Power Connections The Rice Lake Bariatric Wheelchair Scale has a 120 VAC adaptor or 230 VAC adaptor to use when power is readily available. The AC power adaptor plugs into the back of the indicator as shown in Figure 3-4. -
Page 11: Getting Ready To Weigh A Patient
Battery Charging When the AC adaptor is connected to a power source, the rechargeable battery goes into recharge mode. NOTE: To maintain battery longevity we recommend you charge it on a regular basis rather than waiting until it is fully discharged. -
Page 12: Scale Operation
5. If the display hold feature is on (OP6=1), the weight will remain on the display even after the patient steps off the scale. To clear the weight, press the key. On-Off/Zero 6. To turn off the scale, press and hold the key until appears on the display. On-Off/Zero Rice Lake Bariatric Wheelchair Scale Operation Manual... -
Page 13: Using The Body Mass Index (Bmi) Function
Using the Body Mass Index (BMI) Function Body mass index (BMI) is the relationship between weight and height associated with body fat and health risk. It is a reliable indicator of body fatness for people and even though BMI does not measure body fat directly, research has shown the BMI correlates to direct measures of body fat. -
Page 14: Using The Tare Function
5. You can now accurately weigh the patient. 6. To cancel the tare weight, press and hold the key until disappears from the display. The tare TARE TARE weight is also cancelled when the scale is turned off. Rice Lake Bariatric Wheelchair Scale Operation Manual... -
Page 15: Rs-232 Communications
The scale comes with an RS-232 port which enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing System. Figure 4-1 on page 7 shows where the RS-232 connection is. -
Page 16: Maintenance
Transporting & Storing the Scale For ease of portability, the Rice Lake Bariatric Wheelchair Scale comes with two built in handles and wheels. This allows the user to transport the scale from one location to another. Use the following steps to transport the scale or to store it. - Page 17 3. Roll scale to another location or for storage. Figure 6-3. Roll Away For Transporting or Storage Maintenance...
-
Page 18: Rice Lake Bariatric Wheelchair Scale Specifications
75 hours Automatic power-off can be configured Environmental Operating Temperature 50 to +104°F (14 to 40°C) Storage Temperature 32 to 158°F (0 to 70°C) Humidity 85% relative humidity Certifications and Approvals RoHS Compliant Rice Lake Bariatric Wheelchair Scale Operation Manual... -
Page 19: For More Information
For More Information System Manuals • Rice Lake Bariatric Wheelchair Scale Technical and Operating Manual, PN 118308 Literature • Wheelchair Scales, 4 Color, PN 115157 Web Site • http://www.ricelake.com/health Contact Information Hours of Operation Knowledgeable customer service representatives are available 6:30 a.m. - 6:30 p.m. Monday through Friday and 8 a.m. -
Page 20: Rice Lake Bariatric Wheelchair Scale Limited Warranty
Rice Lake Bariatric Wheelchair Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 22 PN 114724 11/10...
