  • Page 1 Operating instructions DIAS 10 Range hood...
  • Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DIAS 10 63009 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...

  • Page 3: Table Of Contents

    Contents Safety precautions  4 Index  19 Symbols used............ 4 Notes  21 General safety precautions........ 4 Service & Support  23 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Appliance description  7 Appliance description ...........  7 Recirculation model .......... 7 Equipment ...............  7 Construction ............

  • Page 4: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 5: Instructions For Use

    1 Safety precautions ▪ The extracted air must not be motels and other accommod- fed into a chimney which is ation establishments; in bed used for exhausting fumes and breakfast establishments. from appliances burning gas ▪ Do not operate the appliance or other fuels.
  • Page 6 1 Safety precautions ▪ Use original spare parts only. Caution: Burns hazard! ▪ Retain these operating instructions for ▪ Do not leave the appliance unattended future reference. when deep-frying on the cooking sur- Note on use face. The cooking oil in the deep-frying ▪...

  • Page 7: Appliance Description

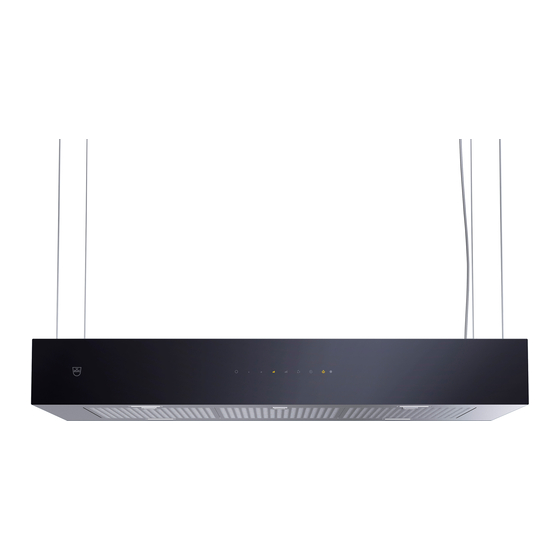

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The appliance may only be operated in the recirculation mode. Recirculation model The cooking fumes and smells above the cooking area are first filtered through the metal grease filters and then passed through the activated charcoal filters.

  • Page 8: Operating And Display Elements

    2 Appliance description Operating and display elements Switch off / activate/deactivate wipe protection Power level 1 / activate/deactivate remote control Power level 2 Power level 3 Intensive level CleanAir function (air extraction every hour for 10 minutes) After-running time – delays the switching-off of the appliance by 15 minutes Illumination ON/OFF and change light intensity (hold depressed for two seconds)

  • Page 9: Operating The Appliance

    3 Operating the appliance Operating the appliance Operation using the operating and display elements Switching the appliance on ▸ Touching the / / button switches the appliance on at power level 1, 2, 3 or intensive. – The corresponding button illuminates to indicate which power level is being used. We recommend switching the appliance on at power level 1 some five minutes be- fore starting to cook.

  • Page 10: After-Running Time

    3 Operating the appliance – The intensive level switches off before time. After-running time With the after-running time function, the appliance runs for another 15 minutes and then switches off. ▸ Press the / or button and select the desired power level. ▸...

  • Page 11: Operation With Remote Control

    3 Operating the appliance Resetting the filter saturation indicator ü The grease filters have been cleaned; or ü The activated charcoal filters have been changed. ▸ With the range hood switched off, hold the button depressed until all the LEDs flash three times.

  • Page 12: Care And Maintenance

    4 Care and maintenance ▸ Touch the button. – The after-running time switches on. – The button for the corresponding power level illuminates and the LED for the button flashes for 15 minutes. ▸ Touch the button again. – The LEDs no longer illuminate. –...

  • Page 13: Cleaning The Metal Grease Filters

    4 Care and maintenance Removing the air outlet grilles in the top ▸ Pull handle 4 up and remove the air out- let grille 5. Do not drop or damage the metal grease filters or the air outlet grilles. Cleaning the metal grease filters The lower grease filters 2 must be cleaned at least once a month with normal use or whenever the...

  • Page 14: Installing The Metal Grease Filters And Air Outlet Grilles

    4 Care and maintenance Installing the metal grease filters and air outlet grilles Installing the metal grease filters underneath ▸ Insert each of the metal grease filters 2 into the holder 6. ▸ Pull handle 1 down and allow the metal grease filter 2 to engage. ▸...
  • Page 15 4 Care and maintenance Deactivating the activated charcoal filter display ▸ With the appliance switched off, hold the button depressed for five seconds. – The button flashes once. – The activated charcoal filter display is deactivated. Removing the activated charcoal filters ▸...

  • Page 16: Trouble-Shooting

    5 Trouble-shooting Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical installa- ▸ Reset the automatic circuit breaker. tions in the home is defect- ive.

  • Page 17: Accessories And Spare Parts

    6 Accessories and spare parts Accessories and spare parts Please give model number of the appliance and exact designation of the accessory or spare part when ordering parts. Metal grease filter fitted underneath Air outlet grille fitted in the top Activated charcoal filter Technical data Electrical connection...

  • Page 18: Disposal

    8 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 19 Index Accessories and spare parts ......17 Malfunction Activated charcoal filters ........ 14 Illumination not working...... 16 After-running time..........10 Metal grease filter Switching off before time ...... 11 Cleaning ............ 13 Switching on .......... 11 Installing ............ 14 Air outlet grille Removing ............
  • Page 20 What to do if Range hood not working...... 16 Saturation indicator illuminates .... 16 The appliance is not extracting enough air ................  16 The illumination is not working .... 16 Wipe protection Activating............ 10 Deactivating .......... 10...

  • Page 21: Notes

    Notes...

  • Page 23: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 24 Infrared port for the remote control Flashing: Clean the grease filters Flashing: Clean the activated charcoal filters 1011439-R04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
