Installation instructions

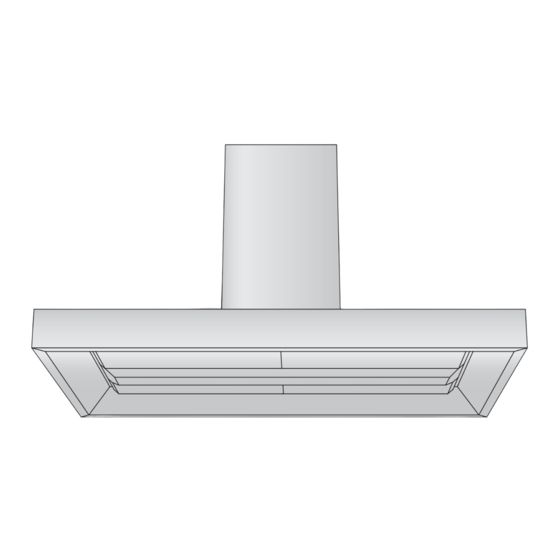

Range hood DI-SMC12
Island hood
Operating mode: extracted air with comfort ventilation system
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
These installation instructions apply to:
016 (DI-SMC12, construction width 120 cm)

General notes

If other firing systems are being used at the same time (e.g. wood, gas, oil or coal-fired heating appliances), safe operation is
only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance. Risk
of toxic fumes! An adequate flow of fresh air must be guaranteed e.g. via non-closable openings in doors or windows and in
combination with an air-intake/exhaust-air wall box or by other technical means.
If the appliance is installed over hobs, each cooking zone must be fitted with an ignition fuse and the minimum distances
(see 'Dimensions') must be adhered to.
Efficient repairs can only be guaranteed if it is possible to uninstall the complete appliance at any time without causing any
damage.

Comfort ventilation appliance

This appliance may only be operated with a suitable comfort ventilation unit made by the company Zehnder Comfosystems.
Other comfort ventilation appliances or external blowers are not equipped with the required safety features.
Suitable comfort ventilation appliances from Zehnder Comfosystems: Comfoair 350, Comfoair 500 (technical modifications reserved).
Always follow the manufacturer's installation instructions and safety precautions.

Identification plate

Remove the grease filters. The identification plate is located on the inside of the appliance.

Supplied installation accessories

All fixing elements are contained in the scope of delivery.

Electrical connections

Electrical connections must be carried out by trained electricians in accordance with the guidelines and standards for low-
voltage installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug
and socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles
switching are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors
ensure safe and fault-free operation. After installation, live parts and cables with basic insulation must not be accessible.
Check old installations.
The appliance is designed for use up to a max. altitude of 2000 m above sea level.
See the identification plate for information on the necessary mains voltage, type of current and fuse protection.
When using the insert box of the Zehnder Comfosystems company, follow the accompanying installation instructions.
