AP410C Hardware Guide

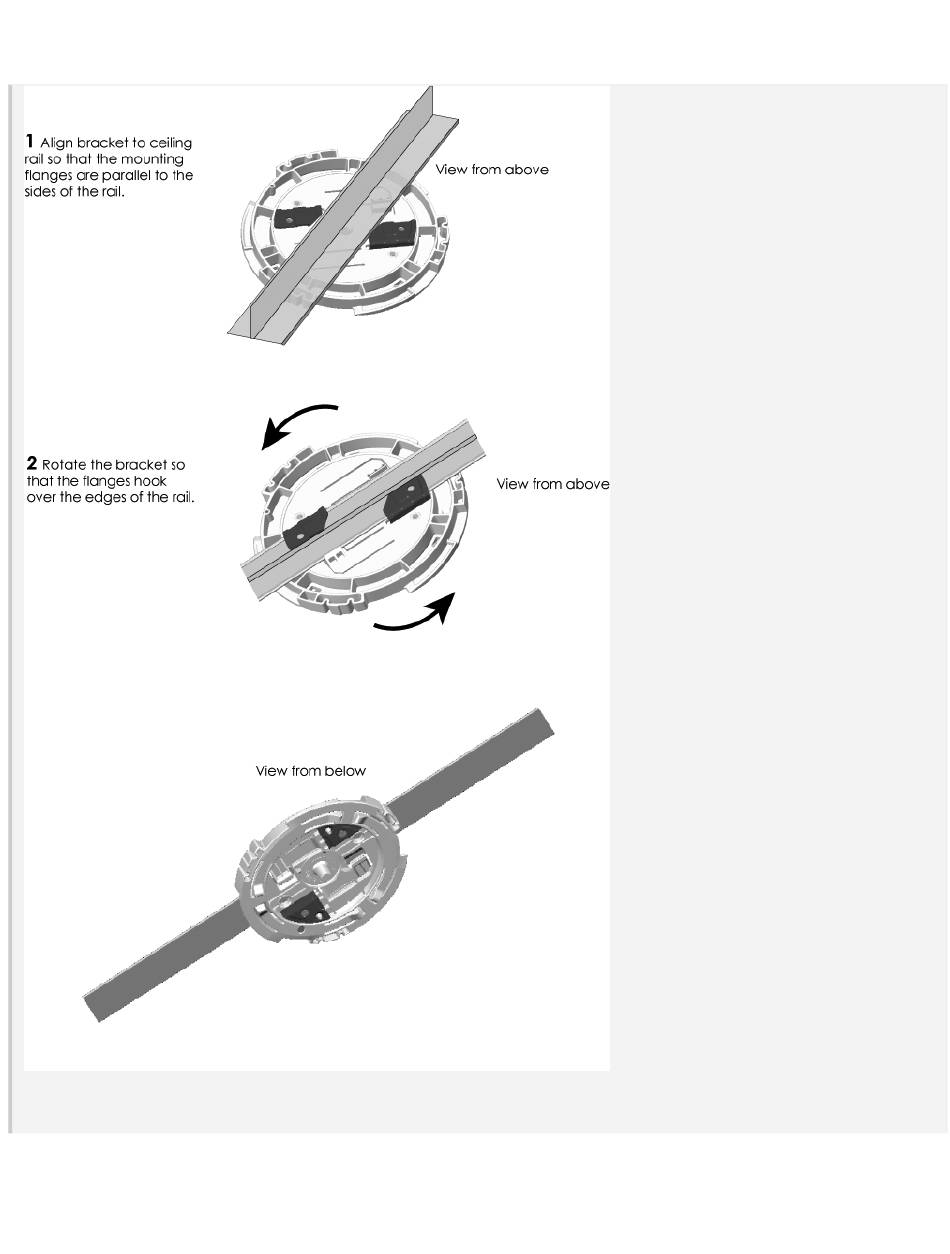

Once the bracket is secure, install the AP using the following steps:
1. Align the red dot on the bottom of the AP with the red dot on the bracket.
2. Lift the AP straight up and keep the red dots aligned until the bracket is seated in the round depression on the bottom of the device.
3. Rotate the AP clockwise until it clicks into place on the bracket.
