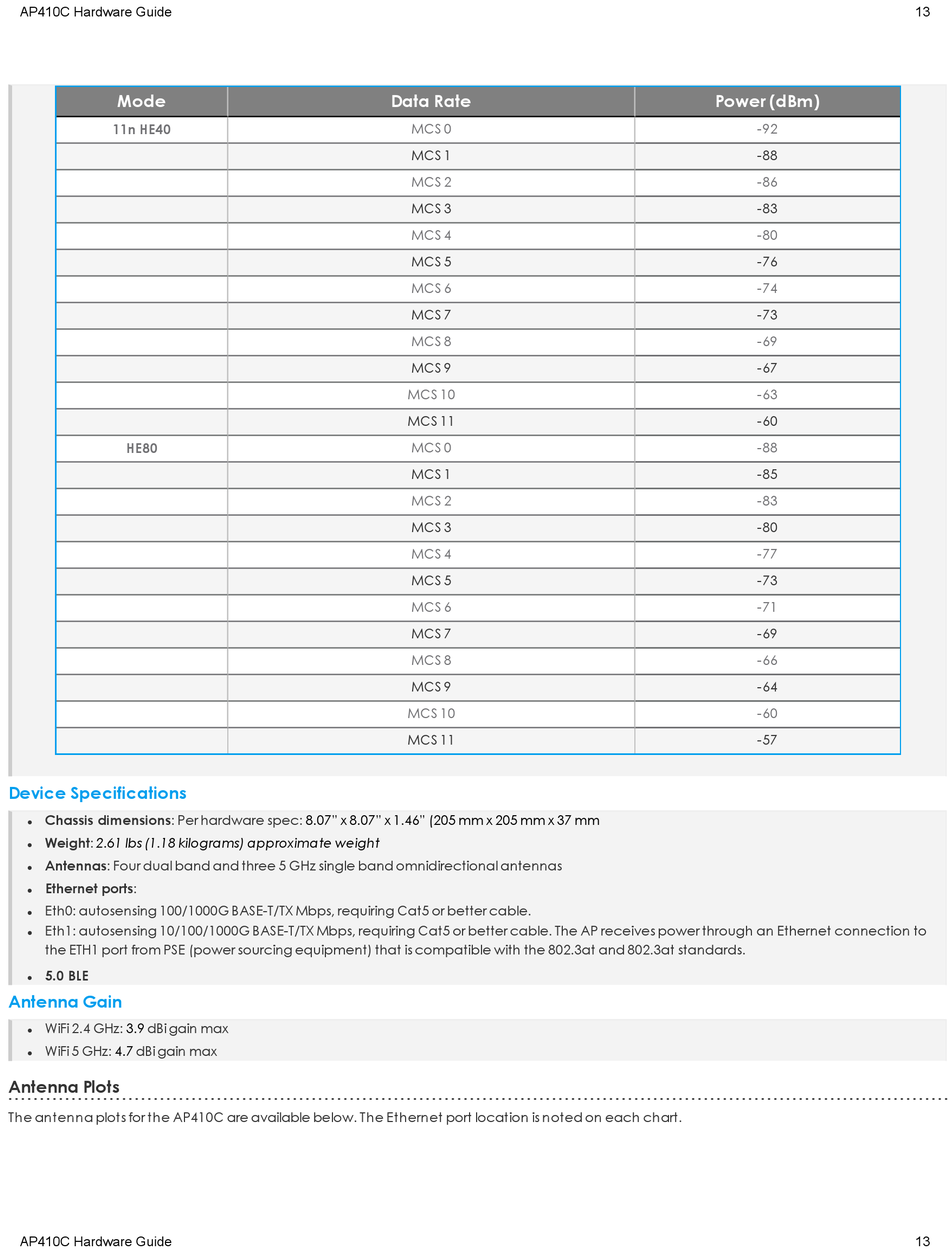

AP410C Hardware Guide
Mode
11n HE40
HE80

Device Specifications

Chassis dimensions: Per hardware spec:
l
Weight: 2.61 lbs (1.18 kilograms) approximate weight
l
Antennas: Four dual band and three 5 GHz single band omnidirectional antennas
l
Ethernet ports:
l
Eth0: autosensing 100/1000G BASE-T/TX Mbps, requiring Cat5 or better cable.
l
Eth1: autosensing 10/100/1000G BASE-T/TX Mbps, requiring Cat5 or better cable. The AP receives power through an Ethernet connection to
l
the ETH1 port from PSE (power sourcing equipment) that is compatible with the 802.3at and 802.3at standards.
5.0 BLE
l

Antenna Gain

WiFi 2.4 GHz: 3.9 dBi gain max
l
WiFi 5 GHz: 4.7 dBi gain max
l

Antenna Plots

The antenna plots for the AP410C are available below. The Ethernet port location is noted on each chart.
AP410C Hardware Guide
Data Rate
MCS 0
MCS 1
MCS 2
MCS 3
MCS 4
MCS 5
MCS 6
MCS 7
MCS 8
MCS 9
MCS 10
MCS 11
MCS 0
MCS 1
MCS 2
MCS 3
MCS 4
MCS 5
MCS 6
MCS 7
MCS 8
MCS 9
MCS 10
MCS 11
8.07" x 8.07" x 1.46" (205 mm x 205 mm x 37 mm
Power (dBm)
-92
-88
-86
-83
-80
-76
-74
-73
-69
-67
-63
-60
-88
-85
-83
-80
-77
-73
-71
-69
-66
-64
-60
-57
13
13
