Hardware Installation

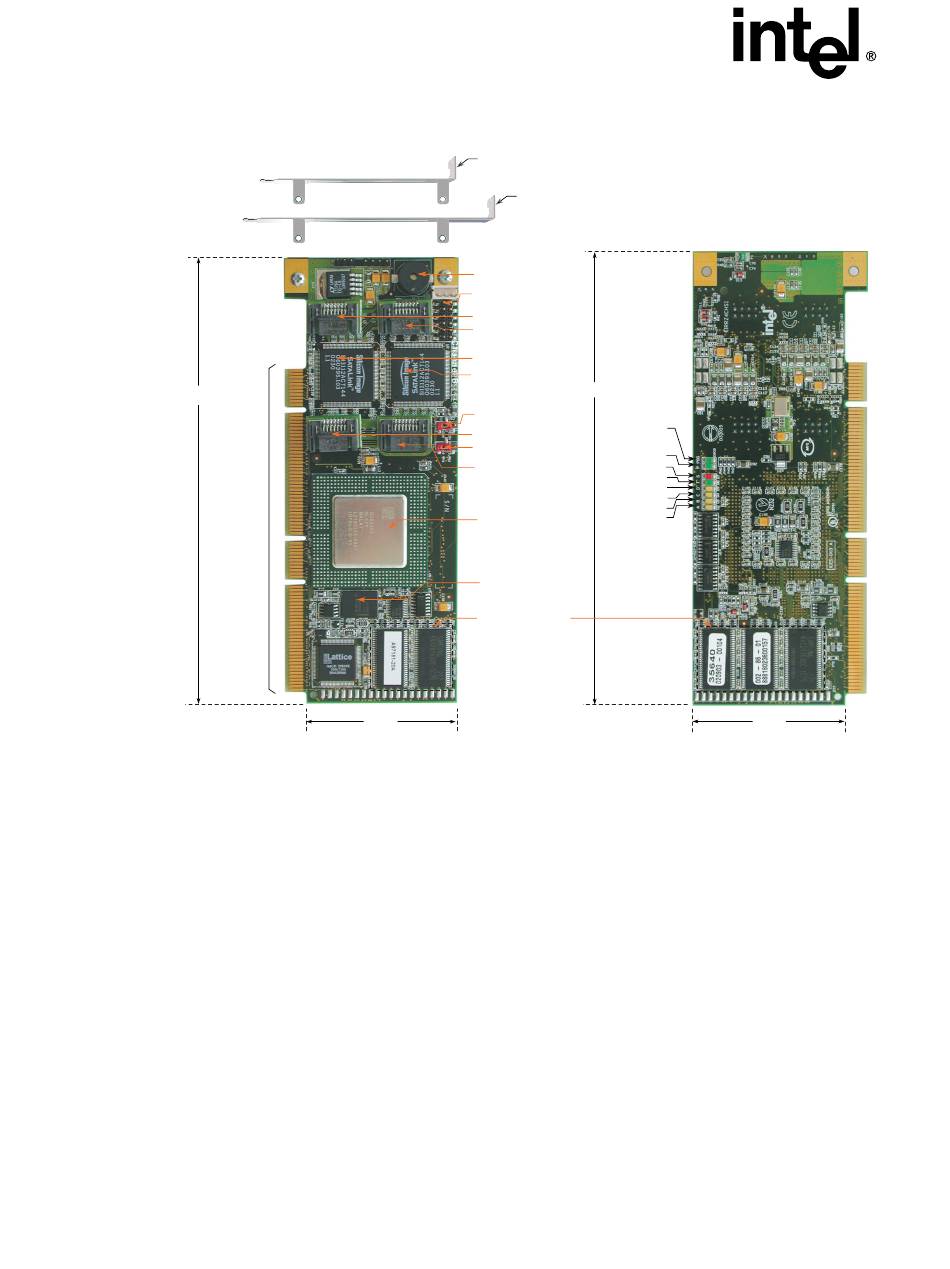

Figure 2-1. IIR Controller Component Layout
167 mm
64-bit /
66MHz,
universally
keyed, 3.3
and 5 volt,
PCI interface
2.1.2

Installing the IIR Controller

1. Power-off the computer system.
2. Disconnect power cord(s) and remove the system cover.
3. Install the IIR controller into an available PCI slot. See
Use the appropriate bracket on the controller for your server platform.
Note:
4. Using SATA cables, connect the SATA drives to the internal SATA connectors
located on the IIR controller.
5. Replace the system cover and reconnect power cord(s).
14
Low-profile bracket
Standard bracket
Alarm
Activity indicator header
SATA connector B:0
SATA connector B:1
SATA processor B
SATA processor A
IOP mode select
jumper
(J1 )
SATA Connector A:0
PCI bus speed jumper
SATA connector A:1
®
Intel 80303
I/O processor
4
MB Intel® Smart 3
FlashFile™ flash memory
64MB ECC SDRAM
data cache
56 mm
Front View
167 mm
PCI bus speed
66MHz = on
33MHz =off
(J4 )
Power
Status
DMA mode
Port-B:1 activity
Port-B:0 activity
Port-A:1 activity
®
Port-A:0 activity
Figure 2-2.
Hardware Installation and User's Guide
56 mm
Back View
