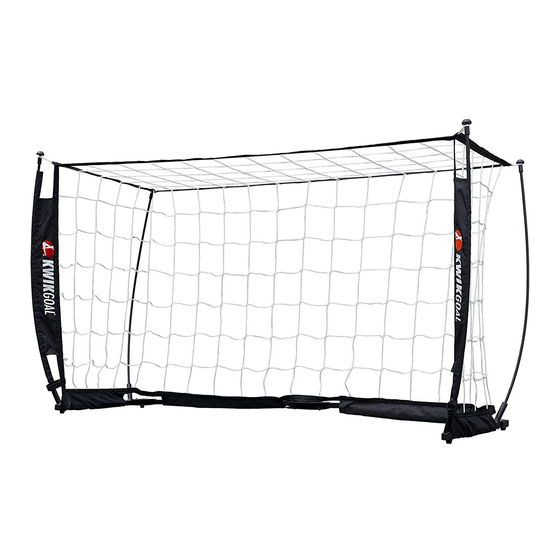

KwikGoal KWIK FLEX 2B1502 Assembly Instructions

Lite goals

ASSEMBLY INSTRUCTIONS FOR 2B1502 & 2B1503 KWIK FLEX LITE GOALS

1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,

notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or

damp packaging may damage contents.

Parts

Goal Frame & Net (1)

Carry Bag (1)

Tension Rod (4)

140 Pacific Drive Quakertown, PA 18951

800-531-4252 Kwikgoal.com

2020 Kwik Goal Ltd.

NZ457 Rev. 01/08/20

Table of Contents

Need help?

Do you have a question about the KWIK FLEX 2B1502 and is the answer not in the manual?

Page 1 Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or damp packaging may damage contents. Parts Goal Frame & Net (1) Carry Bag (1) Tension Rod (4) 140 Pacific Drive Quakertown, PA 18951 800-531-4252 Kwikgoal.com © 2020 Kwik Goal Ltd. NZ457 Rev. 01/08/20...
Page 2 2. Open base frame by swinging outward until button locks in place in center connector as shown. Use care to keep net from getting pinched in moving parts. Base Frame Center Connector Base Frame Open until button locks in place Center Connector Base Frame Base Frame...
Page 3 4. Add tension rods to base as shown. Tension rod at front must go through net pocket and elastic strap. Place front tension rods into base holders prior to attaching net loops. Rear Tension Rod Elastic Strap Rear Tension Rod Net Pocket Front Tension Rod Front Tension Rod...
Page 4 Net Loop Tension Rod 6. Connect backdrop corners of net to tension rod in rear by sliding net loop over end of tension rod. Net Loop Tension Rod Go to Kwikgoal.com for additional product information. NZ457 Rev. 01/08/20...
