Firegear FG-FR-6SSK Installation And Operating Instructions Manual
Fire ring kit
Hide thumbs
Also See for FG-FR-6SSK:
- Installation and operating instructions manual (22 pages) ,
- Installation and operating instructions manual (21 pages)
Table of Contents
Advertisement
Quick Links
Fire Ring Kit
FG-FR-6SSK
FG-FR-12SSK
FG-FR-18SSK
FG-FR-24SSK
FG-FR-30SSK
FG-FR-36SSK
FG-FR-48SSK
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This system requires a minimum 18 square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
Fire Ring Kit
MODELS
Description
6-inch Fire Ring Burner
12-inch Fire Ring Burner
18-inch Fire Ring Burner
24-inch Fire Ring Burner
30-inch Fire Ring Burner
36-inch Fire Ring Burner
48-inch Fire Ring Burner
Outdoor Fire Pit Burners
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Natural Gas (NG)
42,000 Btu's
42,000 Btu's
60,000 Btu's
100,000 Btu's
up to 300,000 Btu's
up to 300,000 Btu's
up to 300,000 Btu's
REV. 7-10-19 Page 1
Advertisement
Table of Contents
Related Manuals for Firegear FG-FR-6SSK
Summary of Contents for Firegear FG-FR-6SSK

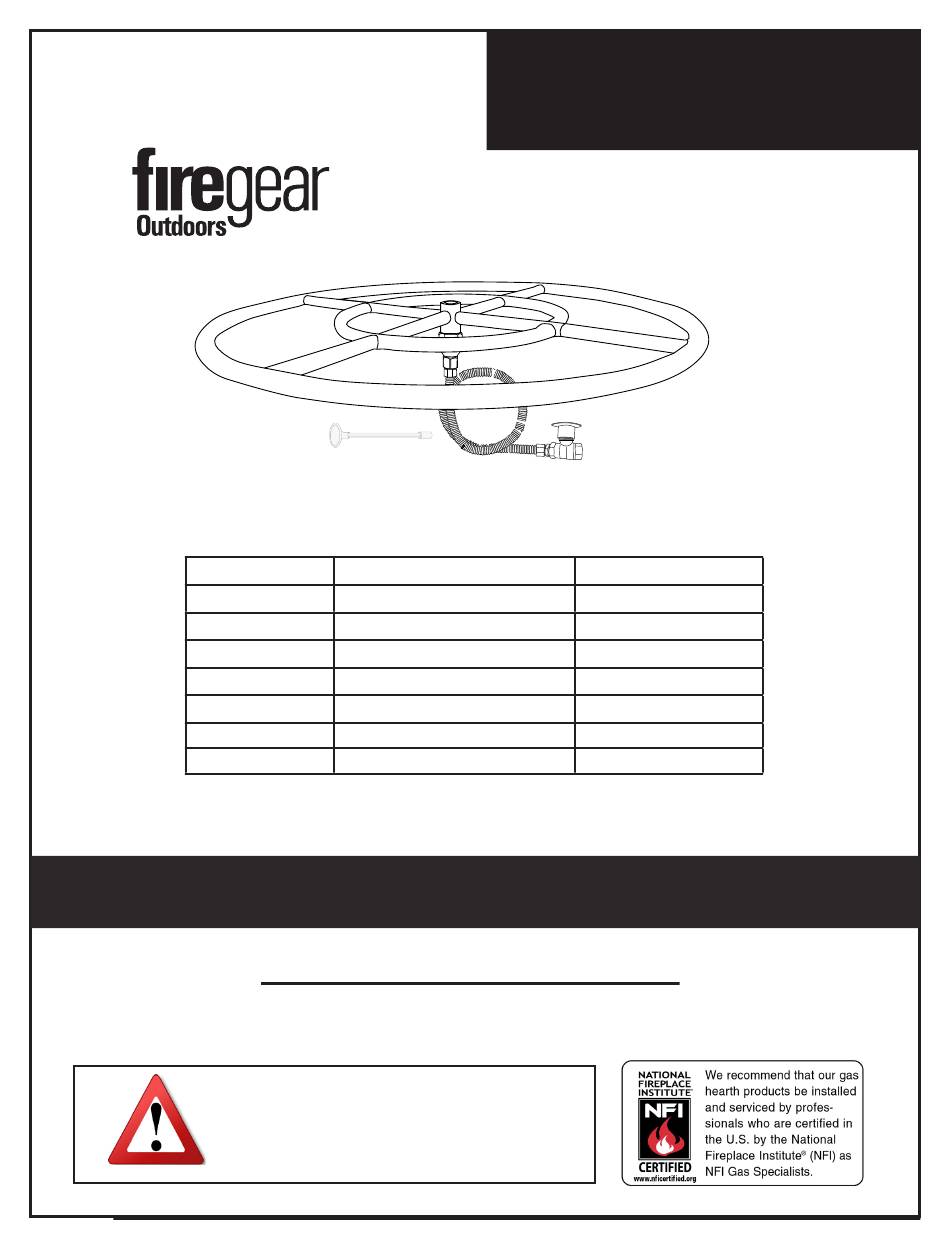

- Page 1 MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: Fire Ring Kit MODELS Fire Ring Kit Description Natural Gas (NG) FG-FR-6SSK 6-inch Fire Ring Burner 42,000 Btu’s FG-FR-12SSK 12-inch Fire Ring Burner 42,000 Btu’s FG-FR-18SSK 18-inch Fire Ring Burner 60,000 Btu’s...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product can expose you to Chromium, which is known to the state of California to cause cancer and birth defects or other reproductive harm. (For more information, go to www.p65warnings.ca.gov) TABLE OF CONTENTS Specifications Preparation for Non-Combustible Structure High Elevation Cross Ventilation Requirements Pipe Sizing Chart... -
Page 4: Specifications
304 Stainless Steel. Burner pans should have ¼” drainage holes to prevent standing water in pan and the center hole for burner connection should be 1-inch diameter for kits FG-FR-6SSK, FG-FR-12SSK, FG-FR-18SSK, and FG-FR-24SSK. The FG-FR-30SSK, FG-FR-36SSK, and FG-FR-48SSK models require a 1¼” center hole. -
Page 5: Preparation For Non-Combustible Structure
Input should be reduced 4% for each 1000 feet 2- 1” x 9” Slots Per Side or beyond the 4500 feet above sea level. Check with your local gas 2- Firegear 6 x12 vents utility for assistance in determining the proper orifice in your Fire Pit location. -
Page 6: Pipe Sizing Chart
GAS PIPE SIZING CHART NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” Natural Gas (NG) flow is given in • 1237 2259 3640 6434... -
Page 7: Installation Into An Approved Enclosure
9. These products are designed for outdoor use only. Not approved for any indoor use or any enclosed space. 10. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 8: Fire Ring Assembly
Before you begin installing the fire ring into a burner pan ensure the center hole is a minimum of 1-inch in diameter ½” Plug (See Fig. 6). Models FG-FR-6SSK, FG-FR-12SSK, FG-FR- 18SSK, and FG-FR-24SSK are supplied with a ½” plug, ½” Center Hub nipple, OAS and FIP x MIP flare fittings (U3-8D-S). -
Page 9: Installing Key Valve
FG-FR-30/36/48 MODELS Min. 1¼-inch Center Hole Before you begin installing the fire ring into your burner pan ensure the center hole is a minimum of 1¼ -inch in diameter (See Fig. 9). Models FG-FR-30SSK, FG-FR-36SSK, and FG-FR-48SSK come with a ¾” plug, ½”... -
Page 10: Typical Installation Drawings
TYPICAL INSTALLATION DRAWINGS Non-Combustible Spur Burner Fire Pit Pan Fire Pit Enclousure Key Valve Shut-Off Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional... -
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
FIRE RING REPLACEMENT PARTS Drawings not to scale Fire Ring Burners REV. 7-10-19 Page 12... -
Page 13: Replacement Parts List
½” OD Flare to ¾” FIP Fitting (provided with 30”, 36”, and 48” Fire Ring kits) (Not shown) U1-8E-S ½” Female to ½” Female Coupling (All LPK kits) (Not shown) 99-8 See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. Fire Ring Burners REV. 7-10-19 Page 13... -
Page 14: Fire Ring Part Contents (Models Fg-Fr-6/12/18/24Ssk)

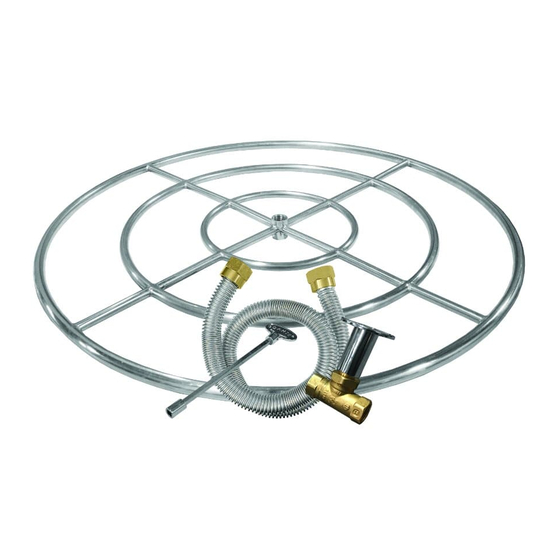

Fire Ring Kit Contents ½” Plug Fire Ring Burner ½” Nipple MODELS: FG-FR-6SSK OAS# FG-FR-12SSK FG-FR-18SSK U3-8D-S FG-FR-24SSK Fire Ring Burners REV. 7-10-19 Page 14... -
Page 15: Fire Ring Part Contents (Models Fg-Fr-30/36/48Ssk)
Fire Ring Kit Contents ¾” Plug Fire Ring Burner U1-8E-S MODELS: Note: No orifice FG-FR-30SSK required for Natural FG-FR-36SSK FG-FR-48SSK Fire Ring Burners REV. 7-10-19 Page 15... -
Page 16: Converting To Lp Gas
All NPT pipe threads must be sealed with approved gas Teflon tape or pipe compound. Ensure the orifice air shutter nut is open to reduce soot build up and the arrow on the orifice air shutter is pointing toward the fire ring. Models: LP Conversion Includes FG-FR-6SSK FR-OAS-LPK52 OAS-LP-52, 113BS-D5, 99-8 FG-FR-12SSK... -
Page 17: Optional Accessories
Provide 18 sq. in of ventilation per side PAVER-CP-MT MT systems of enclosure) PAVER-CO-TMSI TMSI systems Model: VENT-KIT-6X12SS Model: PAVER-VENT-4-LNTS Model: PAVER-VENT-6-LNTS NOTE: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors and other accessories. Fire Ring Burners REV. 7-10-19 Page 17... -
Page 18: Fire Pit Maintenance
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt. 2. Ensure fire pit enclosure has proper drainage for water and proper ventilation to dry out. (855) 498-8324 FOR TECHNICAL SERVICE, CALL: Firegear Outdoors 9230 Conservation Way Fort Wayne, IN 46809 Sales: (888) 672-8929... - Page 19 Lava Rock and Lava Stones are not covered by warranty For Commercial applications, the liability of Firegear Outdoors End User must provide a bill of sale, canceled check, or payment is limited to the express terms of this warranty. We expressly...
- Page 20 Having problems getting your Firegear Outdoors fi re pit to operate? Don’t leave the job site! We want to help! Call 855.498.8324 for Technical Support between the hours of 8:00AM to 5:00PM EST. Text photos to 260.255.5750 or e-mail photos to support@skytechpg.com.
