Steelcase 9000 Panel Transaction Top Series Assembly Directions

Steelcase, Inc.

Grand Rapids, MI 49501

U.S.A.

1-888-783-3522

NOTE: When adding transaction tops top panels, attention must be given to strengthen and stabilize the complete

panel wall system for optimum rigidity.

Tools

Assembly Directions

Series 9000

Panel Transaction Top

Printed In U.S.A.

REV

93-9504058 B

Page 1 of 3

Table of Contents

Need help?

Do you have a question about the 9000 Panel Transaction Top Series and is the answer not in the manual?

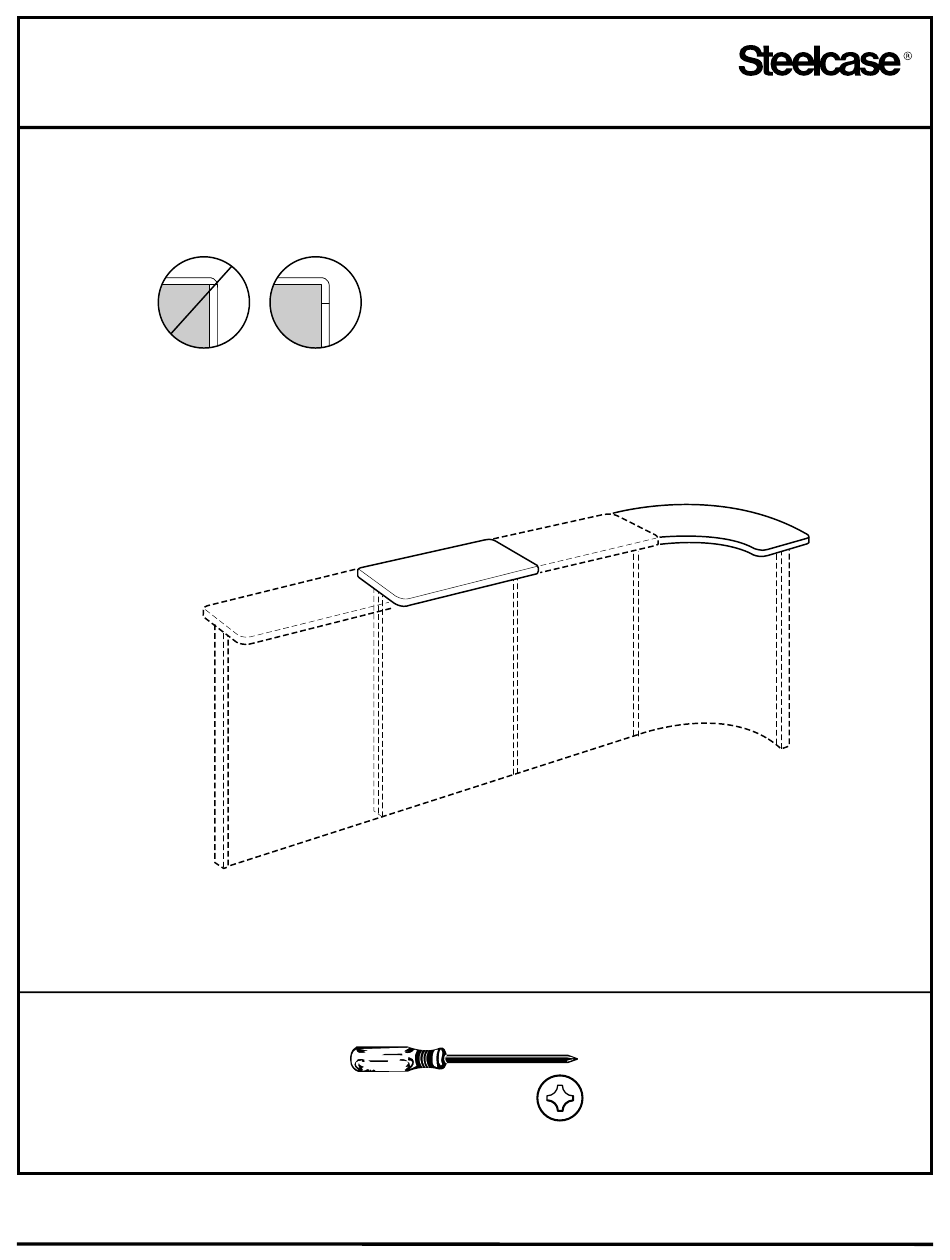

Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Series 9000 Panel Transaction Top ® NOTE: When adding transaction tops top panels, attention must be given to strengthen and stabilize the complete panel wall system for optimum rigidity. Tools Assembly Directions Printed In U.S.A.
Page 2 Make sure ends of top cap are adjusted down firmly against the panel uprights. Next center the transaction top onto top cap. Now install (1) left hand brace into panel upright slots and start (2) screws. Next install remaining braces in the same manner leaving screws loose. NOTE: A total of 6 braces are used with 60"...
Page 3 Loosen screw one-half turn and rotate top plate 90° into position. Then start the remaining (3) screws. TOP PLATE TRANSACTION TOP LOOSEN SCREW 1/2 TURN ROTATE TOP PLATE WOOD SCREW 90° INTO POSITION NO. 10 X 3/4" Position the next transaction top and braces onto adjacent panel assembly, using the same assembly procedure for the first top.
