NOTE: For pedestals manufactured
prior to February 2004, install per
assembly direction 939501118.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2001 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

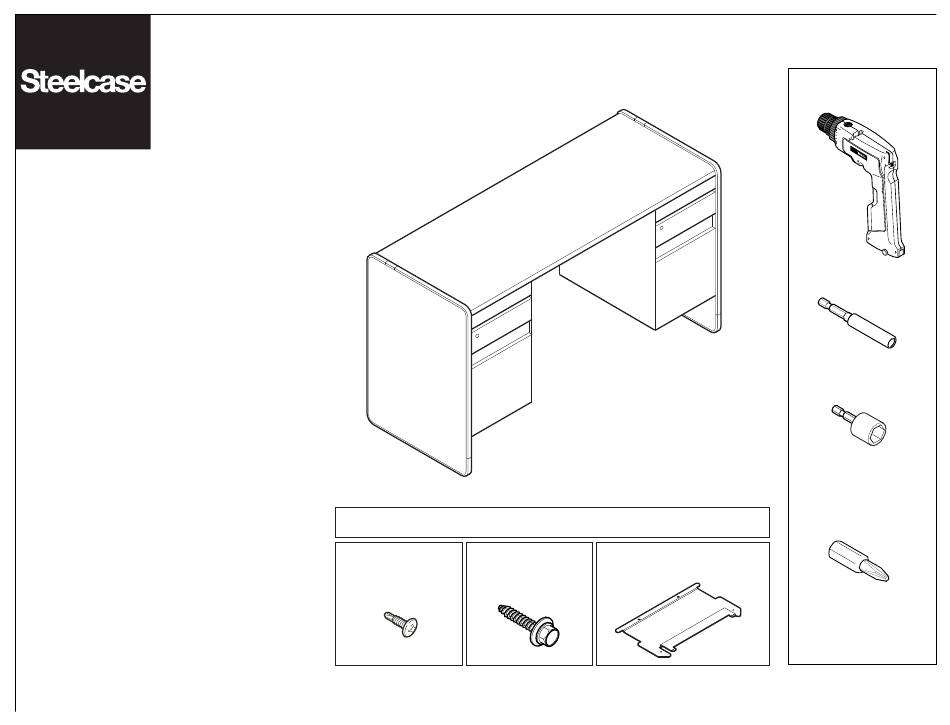

Components
#10 x 1/2" SELF
1/4-14 x 1" WOOD
DRILLING SCREW
TAPPING SCREW
(GQTFC)
(853015040MP)
Series 9000
HANGER BRACKET
(1043853SR)
®
Pedestal
3/8" HEX
SOCKET
#2 PHILLIPS BIT
Page 1 of 5
939503250 Rev D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Pedestal 9000 Series
Summary of Contents for Steelcase Pedestal 9000 Series
- Page 1 939501118. SOCKET Components If you have a problem, question, or request, call #10 x 1/2" SELF 1/4-14 x 1" WOOD HANGER BRACKET your local dealer, or Steelcase Line 1 at DRILLING SCREW TAPPING SCREW (1043853SR) 888.STEELCASE (888.783.3522) (GQTFC) (853015040MP) for immediate action by people who want to help you.
- Page 2 Removal of Drawers Push drawer rails back into pedestal. Pull drawer forward. Remove remaining drawers. Push on tab on each side of the TIP: Mark all drawers so they can be drawer rails. easily re-installed in their original positions. Remove drawer completely. Page 2 of 5 939503250 Rev D...
- Page 3 HANGER BRACKET Hanger Bracket Installation (Pedestals are shipped with brackets already installed) With drawers removed, insert hanger bracket into top of pedestal (1a) and rotate into place (1b). BRACKET FRONT TAB Pivot the hanger bracket #10 X 1/2" SELF-DRILLING SCREWS (GQTFC) until it is flat with the top of the pedestal and slide towards the rear of the pedestal until it...
- Page 4 Pedestal Installation Insert pedestal hanging tabs into worksurface rear brace slots. Secure the pedestal to the worksurface with three (3) 1/4-14 x 1" wood tapping screws (853015040MP). Adjust end panel glides to level the worksurface. 2 SCREWS 1 SCREW 1 SCREW 2 SCREWS Page 4 of 5 939503250 Rev D...
- Page 5 Drawer Re-Assembly NOTE: Remember to re-install drawers in their original positions. Verify that drawer rails are pushed back into pedestal. Pull ball cages on drawer rails to front of drawer rails. Carefully align drawer portion of rail with ball cage of pedestal portion of rail and gently push drawer back into pedestal.
