Steelcase 2300 Series Assembly Instructions Manual

Field installed individual pedestal lock

Download this manual

If you have a problem, question,

or request, call your local dealer,

or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people

who want to help you.

(Outside the U.S.A., Canada,

Mexico, Puerto Rico, and the

U.S. Virgin Islands, call:

1.616.247.2500)

Or visit our website

www.steelcase.com

1998 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

Field Installed 2300 and 3300 Series Individual Pedestal Lock

939500845 Rev B

Need help?

Do you have a question about the 2300 Series and is the answer not in the manual?

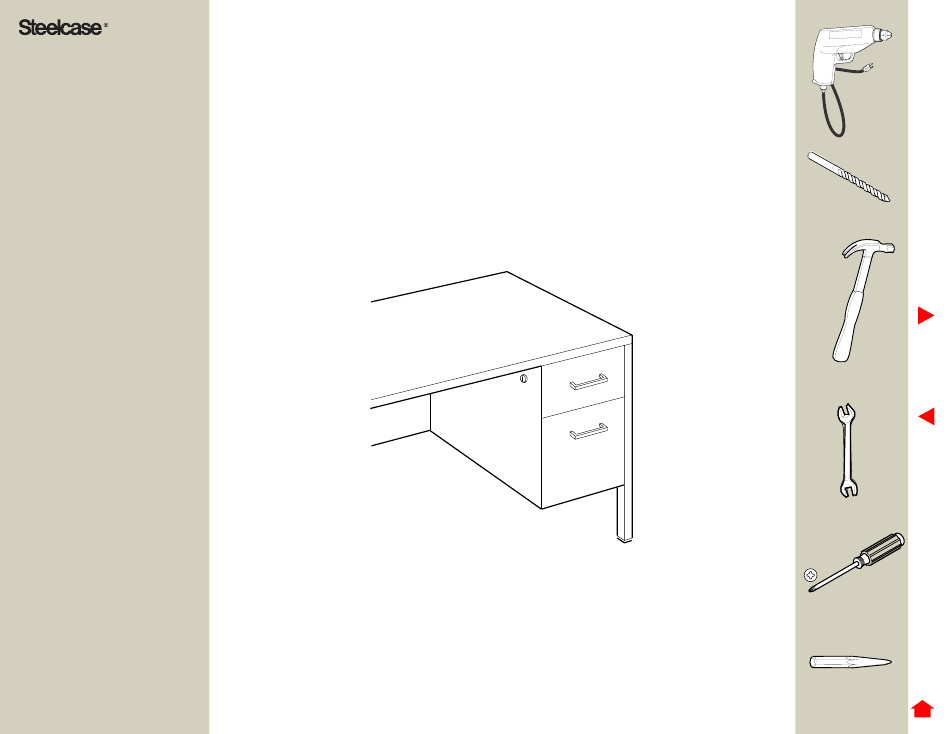

Page 1 Field Installed 2300 and 3300 Series Individual Pedestal Lock If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 Pull Box drawer out until it stops and lift up and out. Pull Box drawer out until it stops, raise up slightly on drawer head and continue to pull drawer out. NOTE: It may be necessary to hold the cradle in position when disengaging the drawer from the cradle.
Page 3 Cut out template on page 5 or 6 and align onto pedestal. Center punch exact location and drill 3/4” Dia. Hole. Install lock. Place end of lock rod through hole in lock bar. Install Lock bar behind case channels. 939500845 Rev B...
Page 4 Insert lock rod into lock cam. Secure assembly to lock and attach spring. Remove drawer from opposite pedestal per Step 1 and 2. Remove all screws attaching pedestals and pack panel to top. Lift end of desk top. Slip lock guard over side of pedestal and install tab on guard into slot in side of pedestal.
Page 5 Front Edge of Pedestal Cut on Dotted Line 3 - 17/32" 2 - 1/2" Front Edge of Pedestal 939500845 Rev B...
Page 6 Front Edge of Pedestal Cut on Dotted Line 4 - 15/32" 2 - 1/2" Front Edge of Pedestal 939500845 Rev B...
