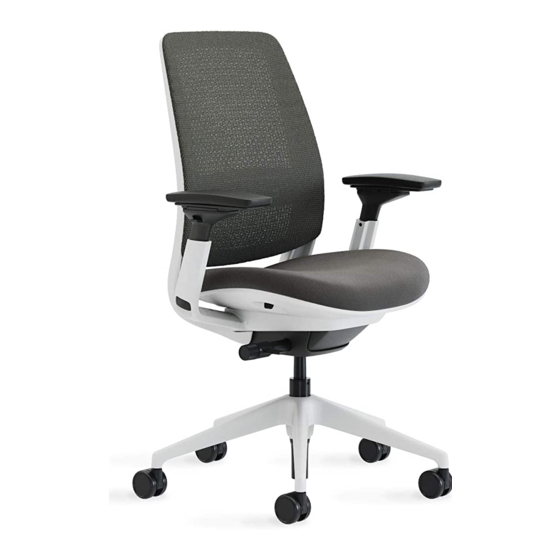

Steelcase 2 Series Removal And Installation Instructions

Removal and installation of chair control shroud
Hide thumbs Also See for 2 Series:

Advertisement

Table of Contents

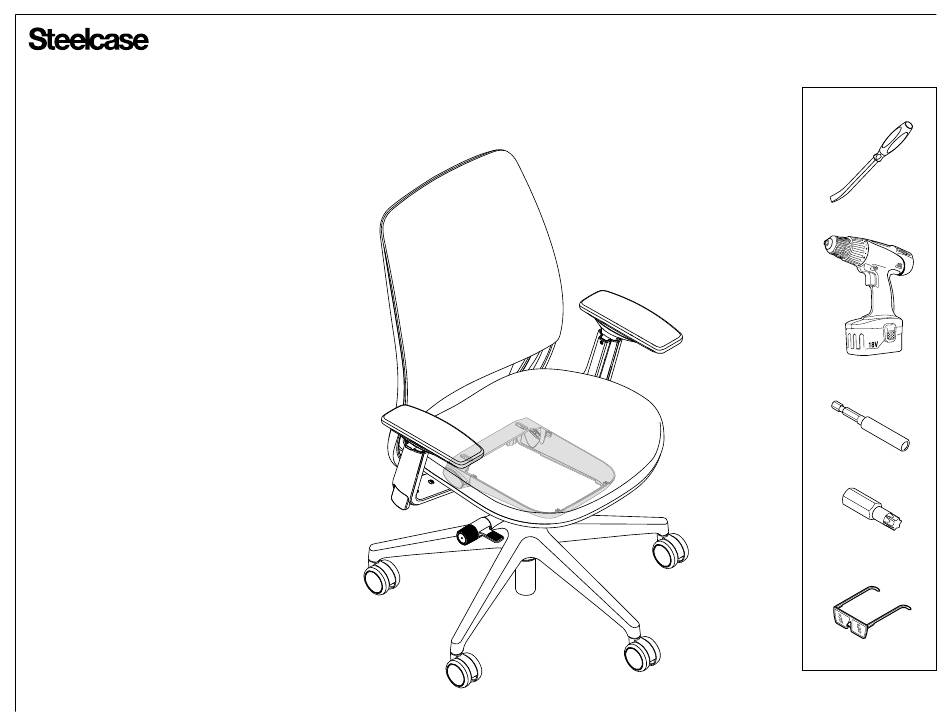

Removal and Installation of Chair Control Shroud

®
on Steelcase Series
®
2 Chair
Torx T-30
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2020 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 7
U.S.A.
145932 Rev B
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase 2 Series

Summary of Contents for Steelcase 2 Series

  • Page 1 2 Chair Torx T-30 If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 ® Pull seat depth lever out (1a) (Optional: Insert paperclip wire as shown in 1b) and slide seat forward. Push and hold two square black buttons near the rear of the seat (2a) as you slide the seat forward and off (2b). SQUARE BLACK BUTTONS Page 2 of 7...
  • Page 3 ® BLACK TAB Put boost knob in the “boost” position (middle knob position). Recline the back and locate small black tab on beige camlock. Press black tab with Prybar until it’s in the groove. Allow back to rock back to upright position while holding Prybar in place.
  • Page 4 ® Remove two (2) screws on each arm. Remove arms. Unclip rear cover by rotating upwards as shown, then pulling off of hinge cover. Page 4 of 7 145932 Rev B...
  • Page 5 ® Replace Seat Shroud Pull the front of the shroud forward and down to disengage front hooks (1a), then push back to disengage rear hooks (1b). Spread the back of the shroud and lift off (1c). Spread the back of the new shroud and place into position (2a).
  • Page 6 ® Reassemble Chair Install rear cover. Rear cover hooks onto shroud pins (1a). Rotate rear cover down and snap into rear snaps (1b). If mounting on an armless chair, install caps on each end of the rear cover (1c). Install arms. Install two (2) screws on each arm.
  • Page 7 ® Page 7 of 7 145932 Rev B...
