Steelcase 2 Series Retrofit Instruction

Converting chair from armless to include arms
Hide thumbs Also See for 2 Series:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

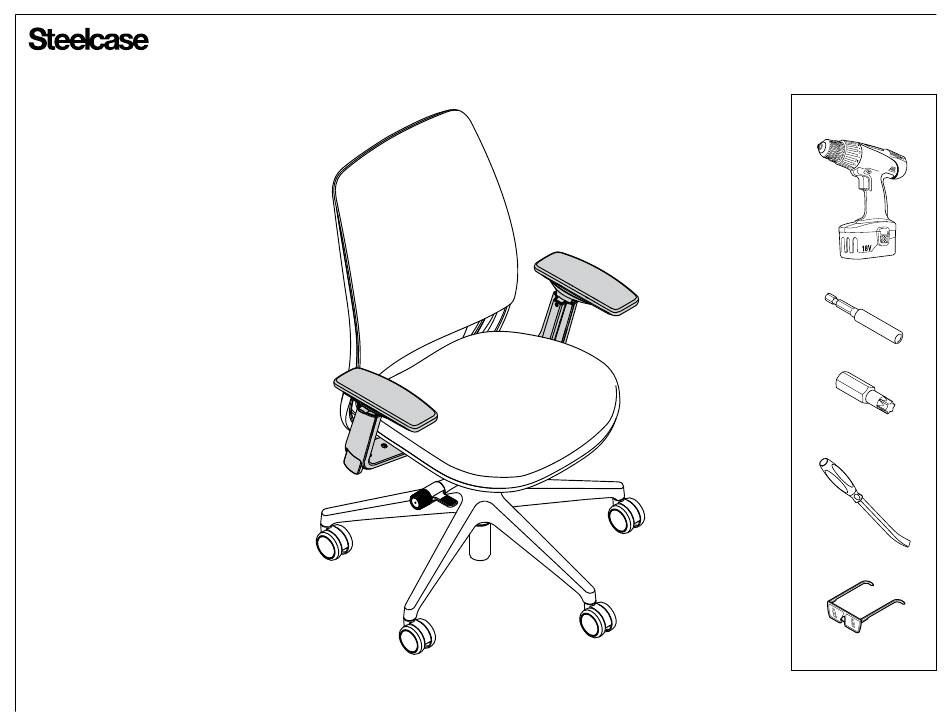

Retrofit Instructions for Converting Steelcase Series
®
2 Chair
®
from Armless to Include Arms
Torx T-30
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2019 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 7
U.S.A.
Doc # 145926 Rev B
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase 2 Series

Summary of Contents for Steelcase 2 Series

  • Page 1 Armless to Include Arms Torx T-30 If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 ® Pull seat depth lever out (1a) (Optional: Insert paperclip wire as shown in 1b) and slide seat forward. Push and hold two square black buttons near the rear of the seat (2a) as you slide the seat forward and off (2b). SQUARE BLACK BUTTONS Page 2 of 7...
  • Page 3 ® BLACK TAB Put boost knob in the “boost” position (middle knob position). Recline the back and locate small black tab on beige camlock. Press black tab with Prybar until it’s in the groove. Allow back to rock back to upright position while holding Prybar in place.
  • Page 4 ® Unclip rear cover by rotating upwards as shown, then pulling off of hinge cover (7a). Armless plugs can be removed at this time (7b). Pull the front of the shroud forward and down to disengage front hooks (8a), then push back to disengage rear hooks (8b).
  • Page 5 ® Place arm bar on top of rails, in shown orientation. Insert four (4) bolts from underside of rail and torque to 3-8 Nm (27-71 in-lbs). Reassemble shroud and rear cover by reversing steps 8c, 8b, 8a and 7a. Page 5 of 7 Doc # 145926 Rev B...
  • Page 6 ® Install arms. Install two (2) screws on each arm. Torque to 3-6 Nm (26-53 in-lbs). Install seat by sliding seat on rails until it clicks and stops. Adjust seat to assure proper assembly. Page 6 of 7 Doc # 145926 Rev B...
  • Page 7 ® Page 7 of 7 Doc # 145926 Rev B...
