Steelcase 3 Series Troubleshooting Manual
Hide thumbs
Also See for 3 Series:
- User manual (6 pages) ,
- Assembly instructions/use and care manual (27 pages)
Advertisement
Quick Links
Troubleshooting Guide
Stretcher
Driveshaft
Top Mounting Plate
SERIES 3 TABLES
HOW THEY WORK
•
Each Lifting Column contains a mechanical lift mechanism that requires an external force to operate.
•
Lifting Columns and Gearboxes are connected to and mechanically synchronized with each other
through a telescoping Driveshaft assembly.
•
A hand-operated crank provides torque to operate the Lifting Columns.
•
Each Lifting Column contains internal stops that define the top and bottom of the range of motion.
•
Only one Crank Handle is used to drive the Lifting Columns, regardless of whether the Table has
two or three Lifting Columns.
•
The Crank Handle raises and lowers 2-leg Tables through a 4:1 ratio Gearbox.
•
The Crank Handle raises and lowers 3-leg (90º Corner) Tables through a 6:1 ratio Gearbox.
•
Certain small Tables have a Top-Crank Handle configuration; all other sizes have a Front-Crank Handle.
Refer to the Spec Guide for more information.
Published 4/2016

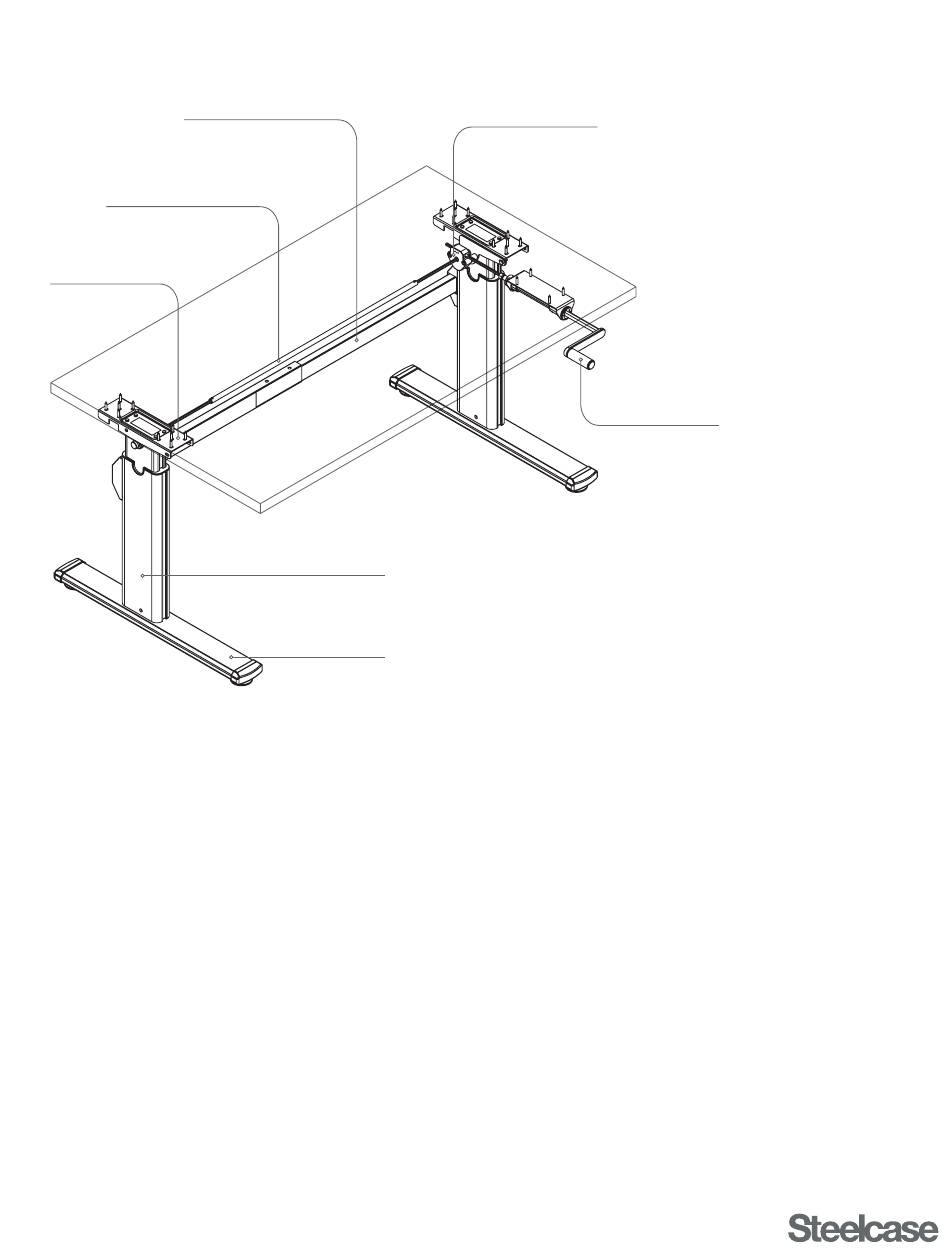

Lifting Column
Foot
Gearbox
Crank Handle
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase 3 Series
Summary of Contents for Steelcase 3 Series
-
Page 1: Troubleshooting Guide
Troubleshooting Guide Stretcher Gearbox Driveshaft Top Mounting Plate Crank Handle Lifting Column Foot SERIES 3 TABLES HOW THEY WORK • Each Lifting Column contains a mechanical lift mechanism that requires an external force to operate. • Lifting Columns and Gearboxes are connected to and mechanically synchronized with each other through a telescoping Driveshaft assembly. - Page 2 Having a spare part that is known to work will quickly lead to accurate identification of faulty components. Without this, it can be little more than guesswork. Steelcase strongly recommends that every dealer maintain a small kit of parts for troubleshooting purposes. This kit of parts should include:...
- Page 3 Any faulty Lifting Columns must be replaced. There are no field-serviceable parts inside the Lifting Column. OBTAINING REPLACEMENT PARTS Contact your local Steelcase dealer to help identify and order Service Parts. If you need help, call 888.STEELCASE. PROBLEM ILLUSTRATIONS – Driveshaft Stabilizers are used on 3-leg Tables to ensure smooth adjustment.
- Page 4 Visit Steelcase.com facebook.com/Steelcase twitter.com/Steelcase youtube.com/SteelcaseTV 4/2016 © 2016 Steelcase Inc. All rights reserved. All specifications subject to change without notice. Trademarks used herein are the property of Steelcase Inc. or of their respective owners. Part No. 939502306 – Rev. C...
