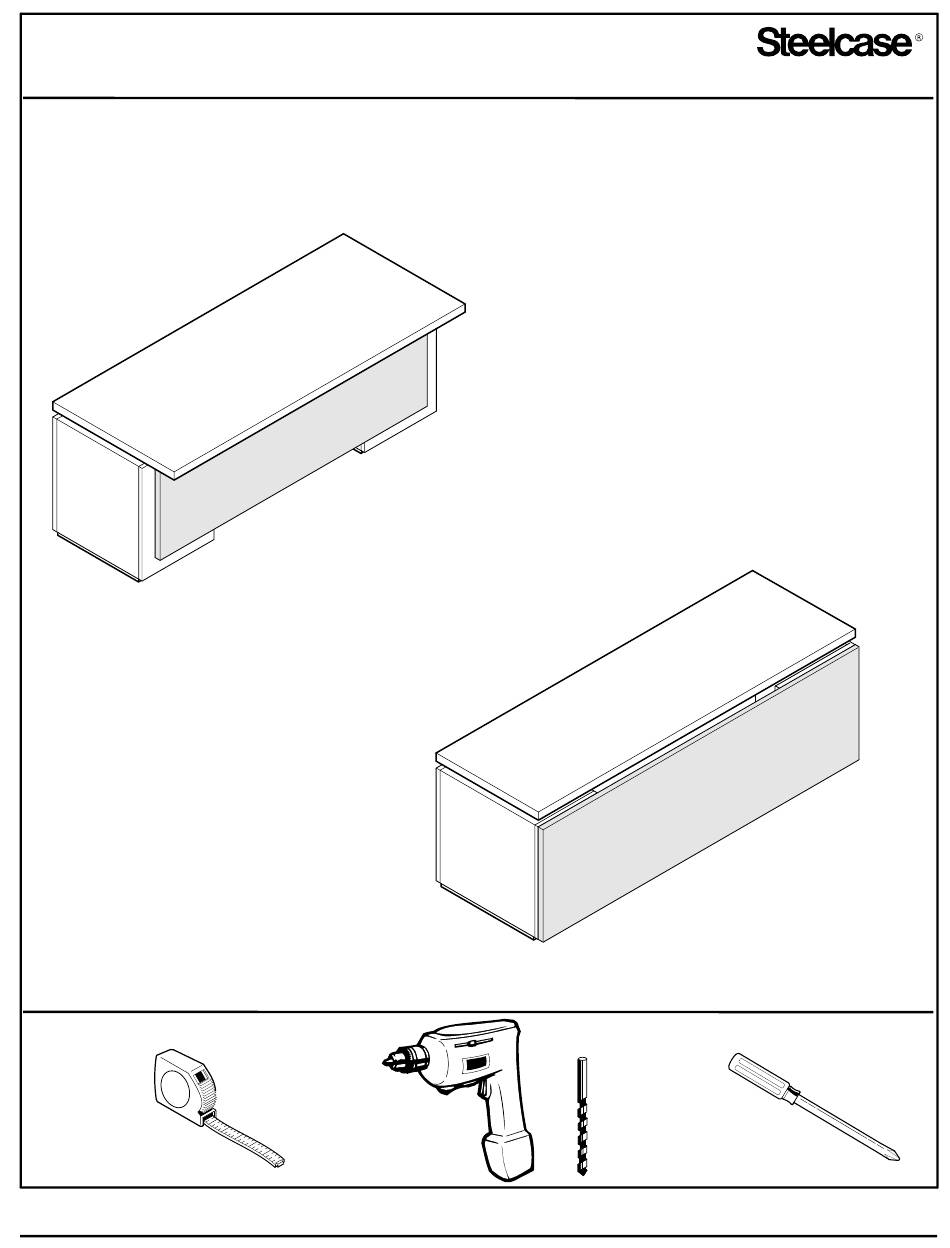

IMPACT - Attaching a Modesty Panel to a Desk
or a Finished Back Panel to a Credenza
Tools
Assembly Directions
Rear view of 30" x 72"
DOUBLE PEDESTAL DESK
with a 66" MODESTY PANEL
1/8"
(3.1 mm)
Printed in the U.S.A.
Rear view of 25" x 78"
RH KNEESPACE CREDENZA
with A 78" FINISHED BACK PANEL
Rev. E
Y9501948
Advertisement
Related Manuals for Steelcase IMPACT
Summary of Contents for Steelcase IMPACT
- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 IMPACT - Attaching a Modesty Panel to a Desk or a Finished Back Panel to a Credenza Rear view of 30” x 72” DOUBLE PEDESTAL DESK with a 66” MODESTY PANEL Rear view of 25” x 78”...
- Page 2 HANGER BRACKET Mounts to worksurface bottom. DESK with kneespace HANGER BRACKET HOOK Mounts to back panel. HANG BRACKET w/ HANGER BRACKET HOOK CREDENZA with kneespace DUAL LOCK TAPE FULL STORAGE CREDENZA (no kneespace) Steelcase Y9501948 Rev. E Page 2 of 4...
- Page 3 10-12 x 5/8” Top Edge Of PEDESTAL or END PANEL 10-12 x 5/8” MOD/BACK PANEL SIDE VIEW MOD/BACK PANEL Attach hanger bracket hooks to modesty/ back panel with (2) 10-12 x 5/8” screws. Steelcase Page 3 of 4 Y9501948 Rev. E...
- Page 4 Install finished back panel as shown. A - Attach dual lock tape to back of credenza in (6) locations. B - Peel off paper backing. C - Press back panel firmly into place. Steelcase Page 4 of 4 Y9501948 Rev. E...
