ZEPHYRONLINE.COM
Body
Single Blower
LED
MOTOR-2
Dual Blower
Monsoon Connect Use, Care, and Installation Guide

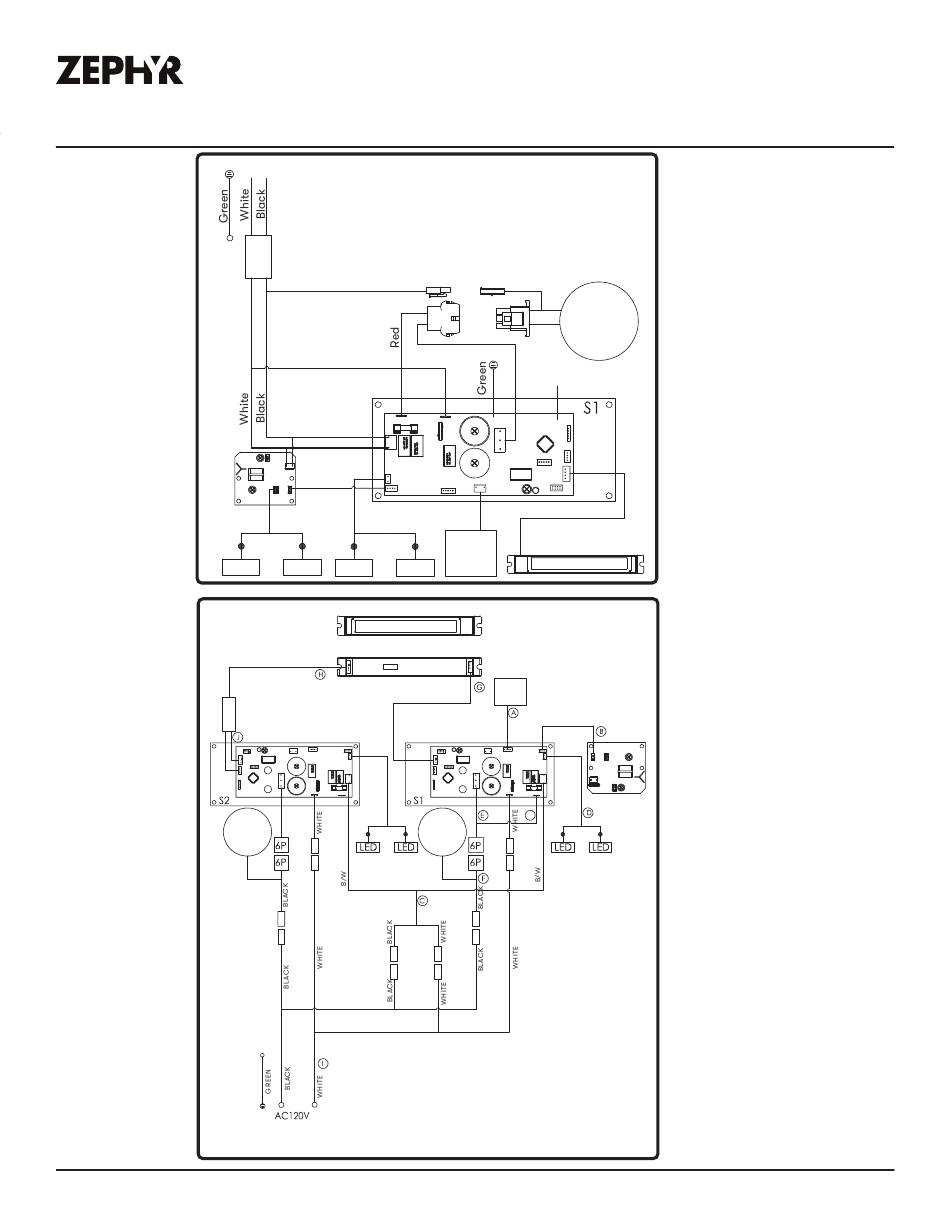

AK9446BS Wiring Diagram
Black
White
LED
LED
LED
MOTOR-1
BODY
Wiring Diagram
Black
Motor
Body
ANT
WIFI
WIFI
K
A. Wi-Fi connection wire
B. LED PCB wire
C. Power wire for expansion PCB
D. Power wire for expansion PCB
E. Blower connection wire
F. Blower connection wire
G. Control connection wire
H. Dual blower PCB to switch wire
I. Power lead
J. Dual blower connection wire
K. Blower connection wire
37
