Installation Instructions
PBD-1300B Dual Blower Installation
NOTE: To secure the 10" transition adapter to top of hood a cut out of 14-1/2" width x 10-1/2" depth
will need to be made in the cabinet bottom.
If internal cabinet dimensions prevent this size of a cut out then the 10" transition adapter may be
mounted to the cabinet bottom rather than the top of the hood. Cut out dimensions for this type of
installation are 13-1/4" width x 6-1/4" depth.
22

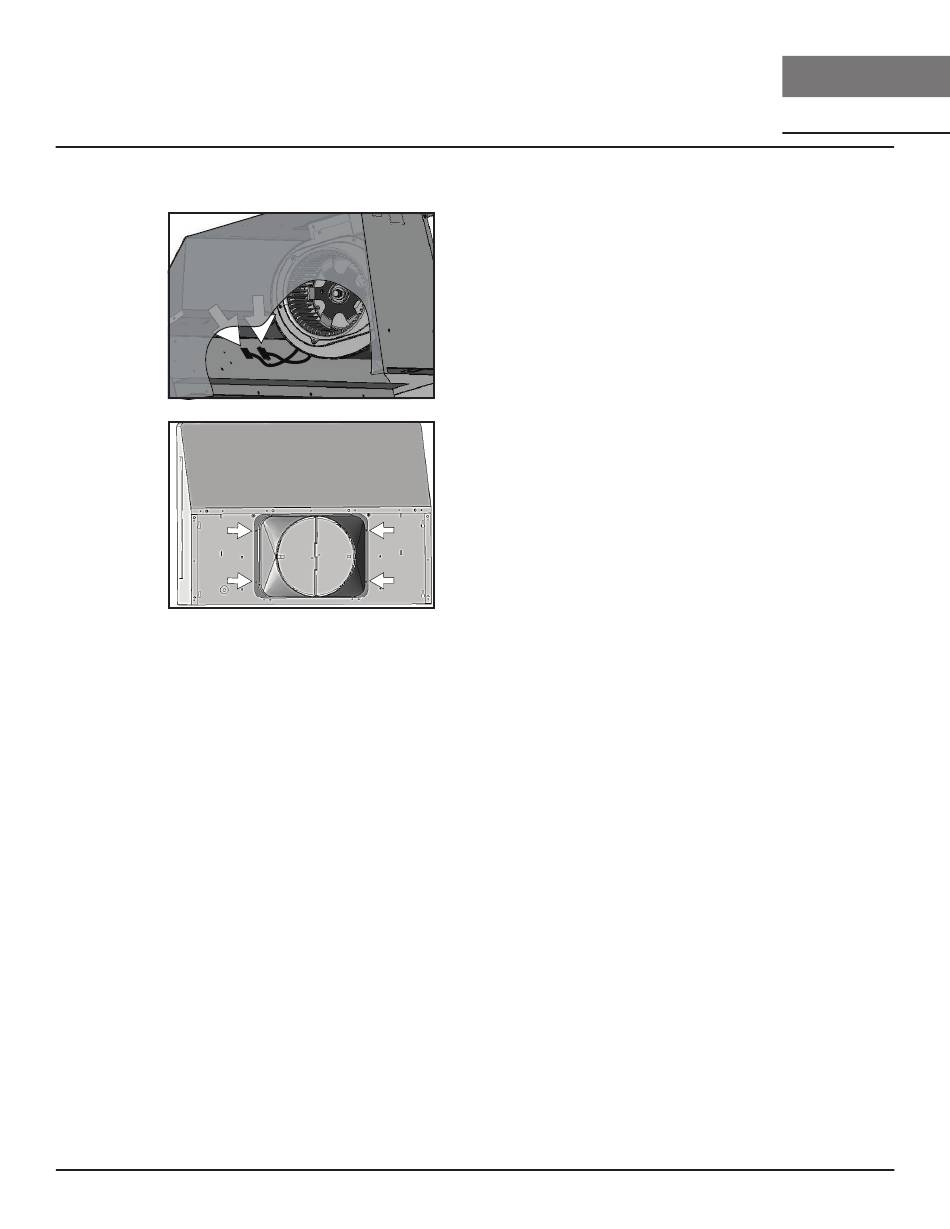

9. Refer to page 36-37 section for
this step. Connect the wiring
from the dual blower including
both blower plugs, blower cable
6 pin connector (E), dual blower
switch cable (H), black single pin
power cord from dual blower (K),
and white single pin power cord
(F) to dual blower PCB.
10. Place 10" round adapter
(included with PBD-1300B) on top
of hood and secure with (4) M3.5
x 8 screws.
