Zephyr Monsoon Connect Use, Care And Installation Manual page 12

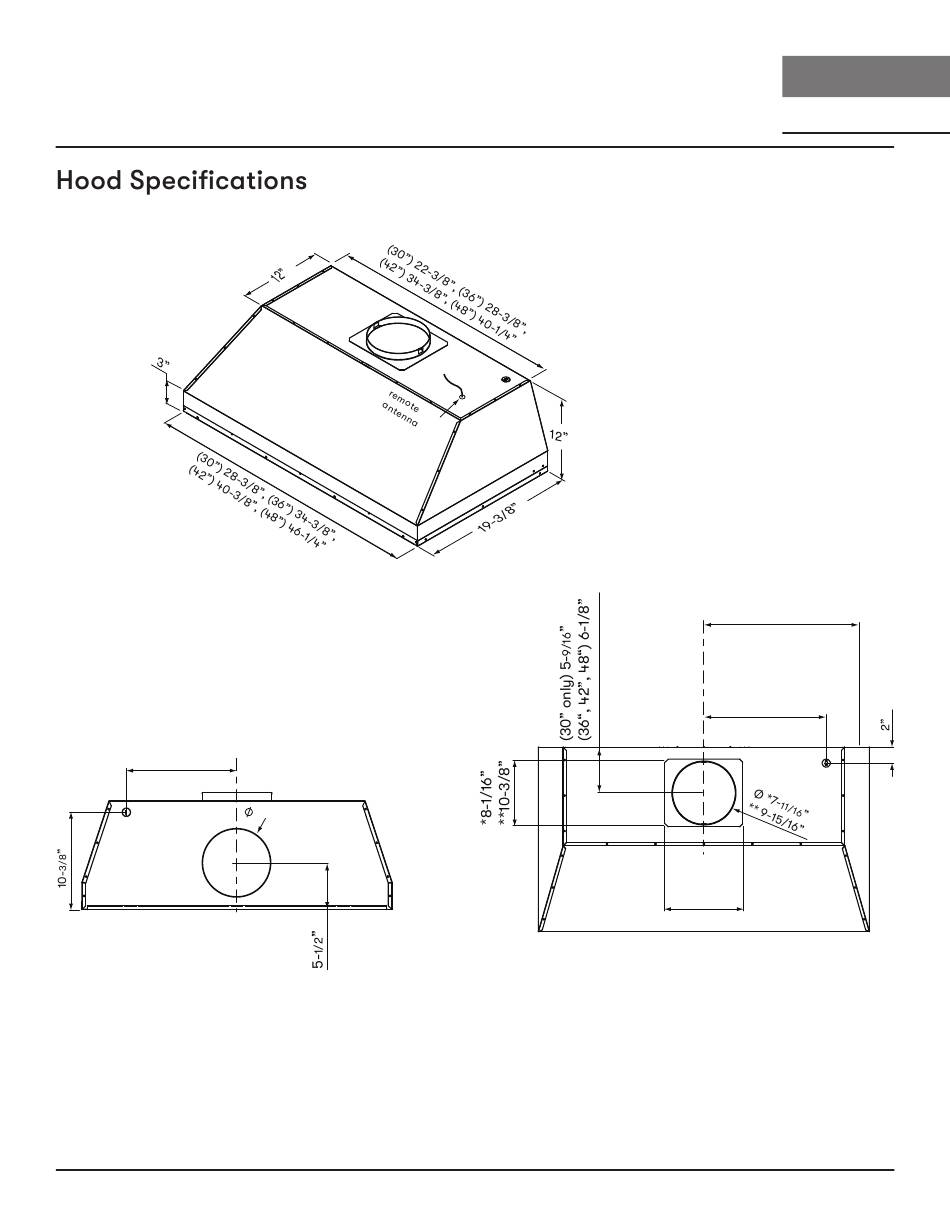

Installation Instructions
(30") 9-1/4"
(36") 11-7/8"
(42") 14-7/8"
(48") 17-7/8"
elec.
k/o
C/L
Back View
12
3/4 View
7- "
11/16
Monsoon Connect Use, Care, and Installation Guide
* 8" round ducting
** 10" round ducting
(30") 11-
3/16"
(36") 14-
3/16
(42") 17-
3/16
(48") 17-
7/8
(30") 9-1/4"
(36") 11-7/8"
(42") 14-7/8"
(48") 17-7/8"
C/L
*9-1/2"
**14-3/16"
Top View
C O R E
M O N S O O N
C O N N E CT
I N S E R T
"
"
"
elec.
k/o
