Datex-Ohmeda Cardiac Output Modules
TM
S/5
Cardiac Output and SvO
Module, M-COPSv (Rev. 01)
2
TM
S/5

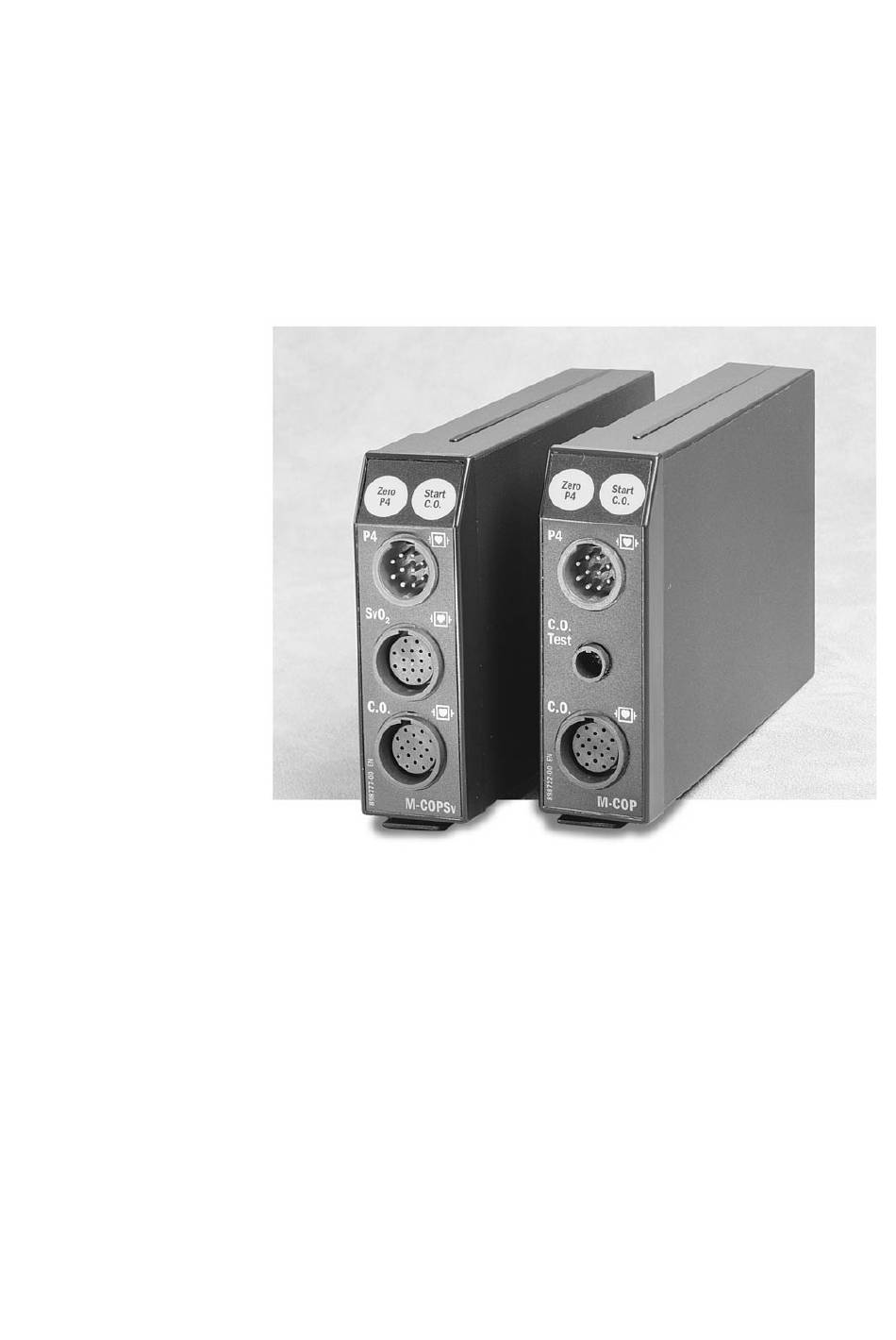

Cardiac Output Module, M-COP (Rev. 03)
Technical Reference Manual Slot
All specifications are subject to change without notice.
Document No. 800 1012-1
June 2001
Datex-Ohmeda Inc.
Datex-Ohmeda Division,
3030 Ohmeda Drive
Instrumentarium Corp.
53707-7550 MADISON, WIS
P.O. Box 900, FIN-00031
USA
DATEX-OHMEDA, FINLAND
Tel. +1-608 -221 1551, Fax +1-608-222 9147
Tel. +358 10 394 11 Fax +358 9 146 3310
www.us.datex-ohmeda.com
www.datex-ohmeda.com
Instrumentarium Corp. All rights reserved.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Datex-Ohmeda S/5 M-COPSv
Summary of Contents for Datex-Ohmeda S/5 M-COPSv
- Page 1 Datex-Ohmeda Cardiac Output Modules Cardiac Output and SvO Module, M-COPSv (Rev. 01) Cardiac Output Module, M-COP (Rev. 03) Technical Reference Manual Slot All specifications are subject to change without notice. Document No. 800 1012-1 June 2001 Datex-Ohmeda Inc. Datex-Ohmeda Division, 3030 Ohmeda Drive Instrumentarium Corp.
-
Page 3: Table Of Contents
Table of contents TABLE OF CONTENTS Cardiac Output Modules, M-COP and M-COPSv TABLE OF CONTENTS TABLE OF FIGURES Introduction Specifications 1.1 General specifications ..........................2 1.2 Typical performance ..........................2 1.2.1 C.O..............................2 1.2.2 SvO ..............................2 1.2.3 InvBP...............................2 1.3 Technical specifications..........................3 Functional Description 2.1 Measurement principle ..........................4 2.1.1 Cardiac output and REF ........................4 2.1.2 SvO... -
Page 4: Table Of Figures
Datex-Ohmeda S/5 monitors 6.1.1 Cardiac Output Module, M-COP Rev. 00..................29 6.1.2 Cardiac Output Module, M-COP Rev. 01..................29 6.1.3 Cardiac Output Module, M-COP Rev. 02..................30 6.1.4 Cardiac Output Module, M-COP Rev. 03..................30 6.1.5 Cardiac Output and SvO Module, M-COPSv Rev. 00 ...............30 6.1.6 Cardiac Output and SvO... -
Page 5: Introduction
Cardiac Output Modules, M-COP and M-COPSv INTRODUCTION This section provides information for the maintenance and service of Cardiac Output Modules, M- COP and M-COPSv. Cardiac Output Modules, M-COP and M-COPSv are single width plug-in modules designed for use with the S/5 monitors. Later in this manual modules can be called w/o system name S/5. -
Page 6: Specifications
Datex-Ohmeda S/5 monitors SPECIFICATIONS 1.1 General specifications Module size (W × D × H) 37 × 180 × 112 mm / 1.5 × 7.1 × 4.4 in Module weight 0.35 kg / 0.8 lbs Power consumption, M-COP Approximately 3.5 W... -
Page 7: Technical Specifications
Cardiac Output Modules, M-COP and M-COPSv Scales Upper limit is adjustable between 10 and 300 mmHg in steps of 10. Lower limit is 10 % of selected upper limit below zero. Sweep speed 12.5, 25, 50 mm/s DIGITAL DISPLAY Range -40...+320 mmHg Resolution ±1 mmHg... -
Page 8: Functional Description
Datex-Ohmeda S/5 monitors FUNCTIONAL DESCRIPTION 2.1 Measurement principle 2.1.1 Cardiac output and REF Cardiac output measurement is made using the principle of thermodilution. During measurement the catheter lies in the heart, with an injection port in the right atrium (RA) and a thermistor, which is to monitor blood temperature, in the pulmonary artery (PA). -
Page 9: Svo Measurement
Cardiac Output Modules, M-COP and M-COPSv area A start of meas. 100% end of meas. area C m.s. Time Figure 2 Cardiac output measurement curve A = area derived by integration of the time-temperature curve C = area beneath the time-temperature curve between t % and end of the curve. -
Page 10: Invasive Blood Pressure Measurement
Datex-Ohmeda S/5 monitors 2.1.3 Invasive blood pressure measurement To measure invasive blood pressure, a catheter is inserted into an artery or vein. The invasive pressure setup, consisting of connecting tubing, pressure transducer, an intravenous bag of normal saline all connected together by stopcocks, is attached to the catheter. The pressure transducer is placed at the same level with the heart, and electrically zeroed. -
Page 11: Cop Board
Cardiac Output Modules, M-COP and M-COPSv 2.2.1 COP board The COP board consists of the following functional sections. Processor • Cardiac output measurement • Cardiac output self test • Invasive blood pressure measurement • Serial communication • Isolation • Power supply •... -
Page 12: Figure 4 Copsv Board Block Diagram, On Cop Board The Svo
Datex-Ohmeda S/5 monitors Module Module Power for Power for data reset communication module RS485 RS485 DRIVER POWER DRIVER POWER NON- MODULE RESET ISOLATION DATA RESET SECTION OPTO ISOLATION PATIENT ISOLATION ISOLATION TRANS- FORMER Reset MICROPROCESSOR RAM internal 256 POWER NON-... -
Page 13: Figure 6 Serial Communication And Opto Isolation
Cardiac Output Modules, M-COP and M-COPSv Uout = Uin x Pressure x 5 V, where Uin = 5 V Þ Uout = 25 V x Pressure [mmHg] Pressure amplification is performed by the instrumentation amplifier. The gain of the amplifier is set so that the level of the signal transferred to the A/D converter stays within the measurement range even when there are circumstantial offsets or offsets caused by the pressure transducer. -
Page 14: Copsv Board
Datex-Ohmeda S/5 monitors Power supply section The module isolated power supply is developed from the +15 Vdirty (non isolated) supply from the Central Unit power supply. The isolated power supply is a switched-mode circuit, where an FET switch is controlled by an oscillator using a bipolar timer. -
Page 15: Connectors And Signals
Cardiac Output Modules, M-COP and M-COPSv 2.3 Connectors and signals 2.3.1 Module bus connector Signal RESET_RS485* -15 VDC* +15 VDIRTY* +15 VDC* -DATA_RS485* DATA_RS485* Ground & Shield* -RESET_RS485* CTSB RTSB RXDB TXDB Ground & Shield* +32 VDIRTY GroundDIRTY* CTSC RTSC RXDC TXDC ON/STANDBY... -
Page 16: Front Panel Connectors
Datex-Ohmeda S/5 monitors 2.3.2 Front panel connectors Invasive blood pressure connector (P4) Signal Pressure 4 + Pressure 4 - Polarization - (ground) Polarization + Not connected Not connected Not connected Not connected Ground Cable detection Cardiac output connector (C.O.) Signal... - Page 17 Cardiac Output Modules, M-COP and M-COPSv connector (SvO Signal IR_CATHODE DATA_OUT CHASSIS_GND SVO2_GND HEATER_RTN REMOTE_OUT +V_OPT TEMP_SENSOR HEATER_HI LOCAL_OUT REF_RTN LED_ANODE RED_CATHODE DATA_IN -V_OPT Document No. 8001012-1...
-
Page 18: Service Procedures
The COP board and the COPSv board cannot be replaced, and all calibrations can only be done at the factory. Datex-Ohmeda is always available for service advice. Please provide the unit serial number, full type designation, and a detailed description of the fault. -
Page 19: Service Check
Cardiac Output Modules, M-COP and M-COPSv 3.2 Service check These instructions include complete procedures for a service check. The service check is recommended to be performed after any service repair. However, the service check procedures can also be used for determining possible failures. The procedures should be performed in ascending order. - Page 20 Datex-Ohmeda S/5 monitors the front cover and the front panel sticker are intact • all connectors are intact and are attached properly • the module box, latch and spring locking pin are intact • Reattach the module box and check that the latch moves properly.
- Page 21 Cardiac Output Modules, M-COP and M-COPSv Invasive blood pressure measurement Check the front panel membrane key ZERO P4. Press the key for at least one second. Check that the key being pressed is identified, i.e. the information on the service menu under “Button” - “P4” changes from OFF to ON. Check that “Cable”...
- Page 22 Datex-Ohmeda S/5 monitors Check that “Meas. state” has changed to NORMAL and “OM fail” and “OM temp.” show OK. NOTE: “OM temp.” may show UNSTABLE at first, but the message should change to OK within a half a minute. 12. Perform an In-Vitro -calibration. Keep the SvO simulator connected to the module and turn the pulsation switch to “No pulse”.
- Page 23 Cardiac Output Modules, M-COP and M-COPSv 15. If the module contains the C.O. Test connector (M-COP), attach the catheter connector of the connecting cable to the C.O. Test connector. Check that the message “Cable OK” appears on the menu after the self-test. No Catheter -->...
-
Page 24: Disassembly And Reassembly
Datex-Ohmeda S/5 monitors Fill in all necessary documents. • 3.3 Disassembly and reassembly Disassemble the Cardiac Output Modules ,M-COP and M-COPSv, in the following way. (see the exploded view of the module. Remove the two screws from the back of the module. - Page 25 Cardiac Output Modules, M-COP and M-COPSv ‘Calibrate P4’ from the menu. Leave the transducer at room air pressure. Press the ComWheel to start zeroing. Supply a pressure of 100 mmHg to 300 mmHg to the transducer. The recommended pressure is 200 mmHg. Set the pressure on the display to match the pressure reading on the manometer and press the ComWheel.
-
Page 26: Troubleshooting
Datex-Ohmeda S/5 monitors TROUBLESHOOTING 4.1 Troubleshooting charts 4.1.1 Cardiac Output Trouble Cause Treatment NO CATHETER-message Catheter or cable not connected. Connect catheter (cable). Catheter or cable faulty. Check by self-test. Change catheter or cable. Blood temp out of range. Check blood temp is within range. -
Page 27: Invbp
Cardiac Output Modules, M-COP and M-COPSv 4.1.3 InvBP Trouble Cause Treatment Abnormally low pressure Transducer wrongly positioned. Check mid-heart level and reposition transducer. No pressure Defective transducer. Check transducer. No pressure module plugged in. Check the module. No waveform selected on screen. To select the desired pressure waveforms press Monitor Setup key and select modify waveforms. -
Page 28: Troubleshooting Flowchart
Datex-Ohmeda S/5 monitors 4.2 Troubleshooting flowchart Possibly faulty COP module Take all m odules out of the Frame Insert M-COP and turn power on Does fault Fault not in COP still appear? module Enter the Service menu Does another Module-ID... -
Page 29: Service Menu
Cardiac Output Modules, M-COP and M-COPSv SERVICE MENU Press the Monitor Setup key. Select Install/Service (password 16-4-34). Select Service (password 26-23-8). Select Parameters. Select COP. Document No. 8001012-1... -
Page 30: Cop Menu
Datex-Ohmeda S/5 monitors 5.1 COP Menu Record Data Record Data prints out the service data and module information (id. serial number and software id.) on the Recorder Module, M-REC. Service Data Gain is a coefficient to compensate for gain error. Typically the value is between 17000 and 25000. - Page 31 Cardiac Output Modules, M-COP and M-COPSv Loc ired: Local infrared intensity OM fail: Reason why initialization OK (OK), can’t read EEPROM of the optical module correctly (EEPROM), can’t adjust LED current to get required local signal (Transmit). OM temp: Temperature of the optical module OK (OK), temp under 43 °C (Under), temp over 47 °C (Over).
-
Page 32: Cop Calibration Menu
Datex-Ohmeda S/5 monitors 5.1.1 COP calibration menu Calibrate P4 This function is for calibrating the invasive blood pressure channel P4. The calibration requires a pressure transducer (with an appropriate cable) and a pressure manometer. Calibration: Connect the pressure transducer with the pressure manometer to the P4 connector. Select Calibrate P4. -
Page 33: Spare Parts
Cardiac Output Modules, M-COP and M-COPSv SPARE PARTS 6.1 Spare parts list NOTE: Only changed part numbers are listed under later revisions. To find the desired part: check first the list of the revision that corresponds your device. If the part is not listed there, check the previous revision, etc. -
Page 34: Cardiac Output Module, M-Cop Rev. 02
Datex-Ohmeda S/5 monitors 6.1.3 Cardiac Output Module, M-COP Rev. 02 No new spare parts. The front panel unit includes all the connectors and input boards. 6.1.4 Cardiac Output Module, M-COP Rev. 03 No new spare parts. The front panel unit includes all the connectors and input boards. -
Page 35: Front Panel Stickers For As/3 Modules (Square Buttons)
Cardiac Output Modules, M-COP and M-COPSv 6.1.6 Cardiac Output and SvO Module, M-COPSv Rev. 01 No new spare parts. The front panel unit includes all the connectors and input boards. 6.1.7 Front panel stickers for AS/3 modules (square buttons) Items 10 and 12 Adaptation M-COP M-COPSv... -
Page 36: Earlier Revisions
Datex-Ohmeda S/5 monitors EARLIER REVISIONS This manual supports all earlier Cardiac Output Module revisions. Document No. 800 1012-1... -
Page 37: Service Check Form
APPENDIX A, Service Check Form, M-COP/M-COPSv APPENDIX A Document No. 8001012-1... - Page 38 Datex-Ohmeda S/5 monitors Document No. 800 1012-1...
- Page 39 APPENDIX A, Service Check Form, M-COP/M-COPSv SERVICE CHECK FORM Cardiac Output Modules, M-COP and M-COPSv Customer Service Module type Service engineer Date OK = Test OK N.A. = Test not applicable Fail = Test Failed All modules N.A. Fail N.A. Fail 1.
- Page 40 Datex-Ohmeda S/5 monitors C.O. measurement 14. Membrane keys Self test Test with patient simulator Notes 17. Electrical safety check 18. Functioning after electrical safety check 19. Final cleaning Notes Notes Used Spare Parts Signature A-2(2) Document No. 8001012-1...
