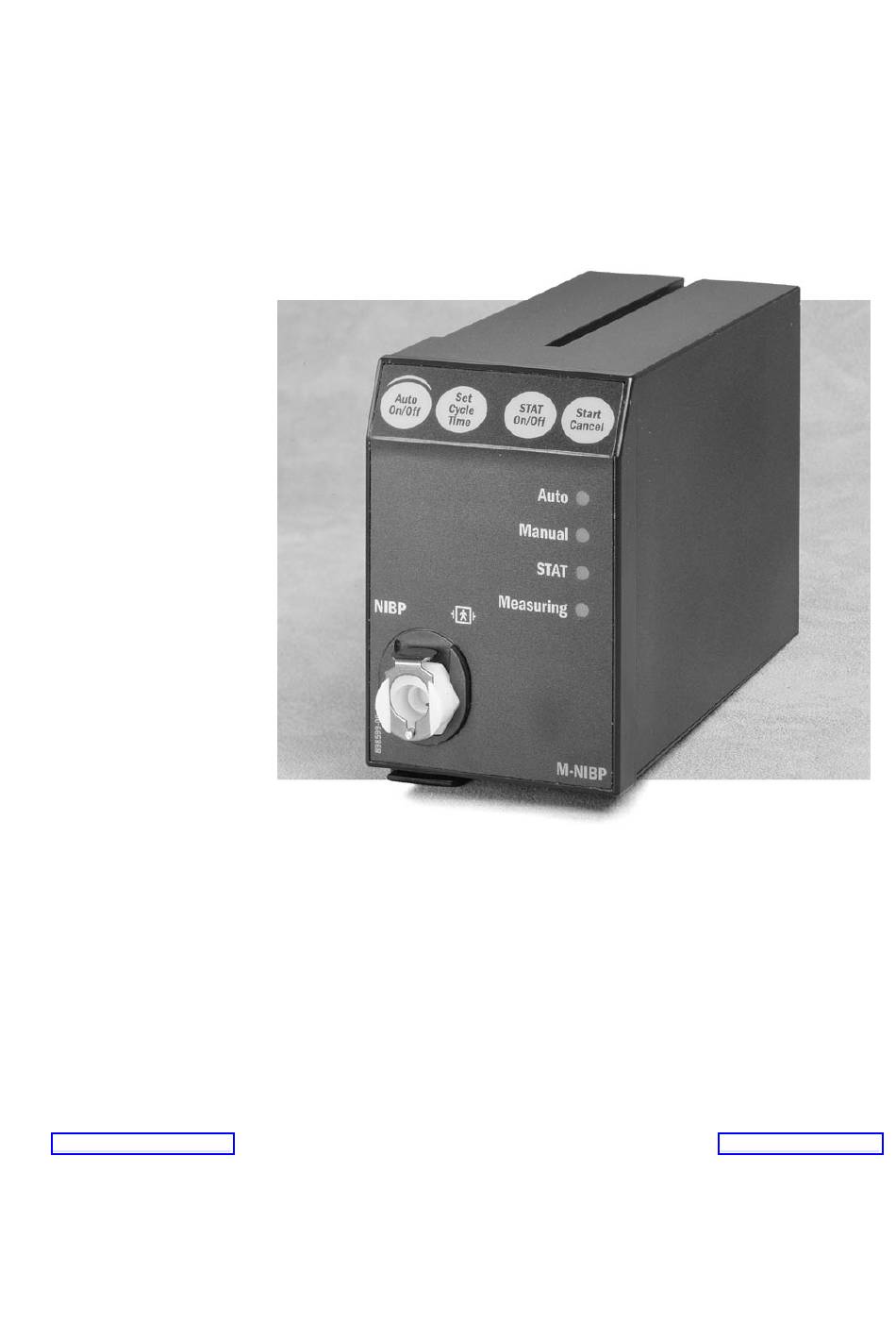

Datex-Ohmeda
TM
S/5
NIBP Module, M-NIBP (Rev. 05)
Technical Reference Manual Slot
All specifications are subject to change without notice.
Document No. 800 1015-1
June 2001
Datex-Ohmeda Inc.
Datex-Ohmeda Division,
3030 Ohmeda Drive
Instrumentarium Corp.
53707-7550 MADISON, WIS
P.O. Box 900, FIN-00031
USA
DATEX-OHMEDA, FINLAND
Tel. +1-608-221 1551, Fax. +1-608-222 9147
Tel. +358 10 394 11 Fax +358 9 146 3310
www.us.datex-ohmeda.com
www.datex-ohmeda.com
 Instrumentarium Corp. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for Datex-Ohmeda S/5 M-NIBP

Summary of Contents for Datex-Ohmeda S/5 M-NIBP

  • Page 1 Datex-Ohmeda NIBP Module, M-NIBP (Rev. 05) Technical Reference Manual Slot All specifications are subject to change without notice. Document No. 800 1015-1 June 2001 Datex-Ohmeda Inc. Datex-Ohmeda Division, 3030 Ohmeda Drive Instrumentarium Corp. 53707-7550 MADISON, WIS P.O. Box 900, FIN-00031 DATEX-OHMEDA, FINLAND Tel.

  • Page 3: Table Of Contents

    Table of contents TABLE OF CONTENTS NIBP Module, M-NIBP TABLE OF CONTENTS TABLE OF FIGURES Introduction Specifications 1.1 General specifications ..........................2 1.2 Typical performance ..........................2 1.3 Technical specifications..........................2 Functional Description 2.1 Measurement principle ..........................4 2.2 Main components.............................4 2.2.1 NIBP board ............................5 2.3 Connectors and signals..........................7 2.3.1 Module bus connector ........................7 2.3.2 Test points ............................8...

  • Page 4: Table Of Figures

    Datex-Ohmeda S/5 monitors 6.1.3 NIBP Module, M-NIBP Rev. 03......................35 6.1.4 NIBP Module, M-NIBP Rev. 04......................36 6.1.5 NIBP Module, M-NIBP Rev. 05......................37 6.1.6 Front panel stickers for AS/3 modules (square buttons) ..............37 6.1.7 Front panel stickers for S/5 modules (round buttons)...............38...

  • Page 5: Introduction

    NIBP Module, M-NIBP INTRODUCTION This section provides information for the maintenance and service of the Non-Invasive Blood Pressure parameter module, M-NIBP. The Non-Invasive Blood Pressure Module, M-NIBP, is a double width plug-in module designed for use with the S/5 monitors. Figure 1 Non-invasive blood pressure Module, M-NIBP NOTE: Do not use identical modules in the same monitor simultaneously.

  • Page 6: Specifications

    Datex-Ohmeda S/5 monitors SPECIFICATIONS 1.1 General specifications Module size, W × D × H 75 × 180 × 112 mm/3.0 × 7.1 × 4.4 in Module weight 0.7 kg/1.5 lbs Power consumption about 4 W 1.2 Typical performance Oscillometric measurement principle.
  • Page 7 NIBP Module, M-NIBP Inflation pressure is adjusted according to the previous systolic pressure, typically 40 mmHg above. If the systolic pressure is not found, inflation pressure is increased typically 50 mmHg. Max. measurement time adult 2 min. child 2 min. infant 1 min.

  • Page 8: Functional Description

    Datex-Ohmeda S/5 monitors FUNCTIONAL DESCRIPTION 2.1 Measurement principle NIBP (Non-Invasive Blood Pressure) is an indirect method for measuring blood pressure. The NIBP measurement is performed according to the oscillometric measuring principle. The cuff is inflated with a pressure slightly higher than the presumed systolic pressure, and deflated at a speed based on the patient’s pulse, collecting data from the oscillations caused by the pulsating...

  • Page 9: Nibp Board

    NIBP Module, M-NIBP 2.2.1 NIBP board EXHAUST VALVE 1 CUFF BLEED VALVE JOINING ZERO EXHAUST CHAM BER P UM P and VALVE VALVE 2 V A LV E PUMP CHECK VALVE DR IV E R PRESS URE TRAN S - OV E RPR E S S URE CO NT RO L D UCERS WATCHDO G...
  • Page 10 Datex-Ohmeda S/5 monitors Memory NIBP program memory (EPROM) size is 128k × 8. RAM size is 32k × 8 bit and it stores variable values in NIBP measurement. EEPROM is size 64 × 16 bit and is used to store the calibration values for the pressure transducers, the pulse valve constants gained during measurements, the PC board identification, and module serial number.

  • Page 11: Connectors And Signals

    NIBP Module, M-NIBP 2.3 Connectors and signals 2.3.1 Module bus connector Module Bus connector (X1) Pin No Signal Not used RESET_RS485 -15 VDC +15 VDIRTY +15 VDC -DATA_RS485 DATA_RS485 Ground & Shield -RESET_RS485 CTSB RTSB RXDB TXDB Ground & Shield +32 VDIRTY GroundDIRTY CTSC...

  • Page 12: Test Points

    Datex-Ohmeda S/5 monitors 2.3.2 Test points NIBP board There are test pad blocks on solder side. X8 and X6 pads and voltages are: Pump Pin No Signal Pin No Signal WD out A1 output reset - 5 V +5 V...

  • Page 13: Service Procedures

    Field service of the M-NIBP module is limited to replacing faulty circuit boards or mechanical parts. The circuit boards should be returned to Datex-Ohmeda for repair. Datex-Ohmeda is always available for service advice. Please provide the unit serial number, full type designation, and a detailed description of the fault.

  • Page 14: Service Check

    Datex-Ohmeda S/5 monitors 3.2 Service check These instructions include complete procedures for a service check. The service check is recommended to be performed after any service repair. However, the service check procedures can also be used for determining possible failures.
  • Page 15 NIBP Module, M-NIBP tubes are connected properly − the upper of the cuff connector tubes, as well as the related tube connector are − marked there are no loose objects inside the module − Check external parts: the front cover and the front panel sticker are intact −...
  • Page 16 Datex-Ohmeda S/5 monitors Enter the NIBP module service menu: Parameters - NIBP Check that the ‘Timeouts’, ‘Bad checksums’ and ‘Bad c-s by mod’ values are not increasing faster than by 50 per second. Check also that the NIBP board memories have passed the internal memory test, i.e.
  • Page 17 NIBP Module, M-NIBP Check the NIBP tubing system for leakages. Select Calibrations from the NIBP service menu. Keep the pressure manometer connected to the NIBP module cuff connector. Start the active leak test from the menu by pressing the ComWheel. The module pumps a pressure of about 265 mmHg and then the pump stops.
  • Page 18 Datex-Ohmeda S/5 monitors Check the watchdog timer also in the infant mode by first selecting Test INFANT from the menu. The time from the infant test should fall within 60...70 seconds. Check the safety valve. Select Safety Valve from the NIBP service menu.
  • Page 19 NIBP Module, M-NIBP Keep the cuff on your arm and perform one NIBP measurement. Check that the module gives a reasonable measuring result. Connect an infant cuff to cuff connector and wrap it around your fingers. Start NIBP measurement and check that the module identifies the cuff, i.e. the text ‘Infant’ appears into the NIBP digit field.

  • Page 20: Disassembly And Reassembly

    Datex-Ohmeda S/5 monitors 3.3 Disassembly and reassembly Rev. 01-03 Disassemble the M-NIBP module in the following way. See the exploded view of the module. Remove the two screws from the back of the module. Pull the module box slowly rearward and detach it from main body. Be careful with loose latch and spring pin for locking.

  • Page 21: Adjustments And Calibrations

    NIBP Module, M-NIBP 3.4 Adjustments and calibrations 3.4.1 Pressure safety level detection “OFFSET” Remove two screws at the rear of the module. Remove the module box. Connect first the service cable (e.g. a long Gas interface cable) to the module connector inside the monitor frame and then to the rear connector of the module.
  • Page 22 Datex-Ohmeda S/5 monitors Pressure Max. error Example 0 mmHg ±9 mmHg (=zero offset) 100 mmHg 100 + zero offset ±2 mmHg 98 ±2 200 mmHg 200 + zero offset ±3 mmHg 198 ±2 If the error of pressure channel B1 is larger than specified above, the module should be recalibrated.

  • Page 23: Troubleshooting

    NIBP Module, M-NIBP TROUBLESHOOTING 4.1 Troubleshooting chart Trouble Cause Treatment No NIBP value displayed NIBP not selected on screen. Check monitor setup. NIBP menu fading No M-NIBP module, module not properly connected, Plug in the module. or NIBP and NE(12)STPR/MRI module connected at the same time.
  • Page 24 Datex-Ohmeda S/5 monitors Trouble Cause Treatment ‘Air leakage’ message 1. Hose or cuff leaking. 1. Replace cuff Reason: replace cuff connector (if the fault is in hose − connector, replace hose) cuff damaged − replace O-ring − cuff connector damaged −...

  • Page 25: Nibp Error Code Explanation

    NIBP Module, M-NIBP 4.2 NIBP error code explanation Code Explanation RAM failure Memory failure. Change NIBP board. ROM checksum error Memory failure. Change NIBP board. +15V failure Check short circuits. Change NIBP board. -15V failure Check short circuits. Change NIBP board. EEPROM protection switch error.

  • Page 26: Troubleshooting Flowchart

    Datex-Ohmeda S/5 monitors 4.3 Troubleshooting flowchart START Possible fault in NIBP module. Insert NIBP Remove all Replace NIBP module and turn modules from module. power on. C.Monitor Frame. Does Fault not in NIBP the fault still module. appear? Does Module ID on...

  • Page 27: Service Menu

    NIBP Module, M-NIBP SERVICE MENU Monitor Setup Press the key. Select Install/Service (password 16-4-34). Select Service (password 26-23-8). Select Parameters - NIBP. Document No. 800 1015-1...

  • Page 28: Nibp Service Menu

    Datex-Ohmeda S/5 monitors 5.1 NIBP Service menu Service Data Pressure shows measured pressure multiplied by 10. Zero shows pressure at auto zeroing multiplied by 10 and changes between +20 and -20 mmHg. Absolute pressure is the sum of Pressure and Zero.

  • Page 29: Nibp Demo Menu

    NIBP Module, M-NIBP 5.1.1 NIBP Demo menu A service menu for demonstarting the oscillometric method of NIBP measurement. The menu shows the realtime pressure signals that are measured from the NIBP cuff. The measurement result is shown in the adjoining digit field. Wave Recording Wave Recording is for selecting the recording option.

  • Page 30: Nibp Calibration Menu

    Datex-Ohmeda S/5 monitors 5.1.2 NIBP Calibration menu Active Leak Test Wrap an adult cuff around a pipe and connect the cuff to the module. Select the active leak test (ON). The module automatically pumps a pressure of 260 mmHg into the cuff. Wait for several seconds until the pressure stabilizes.

  • Page 31: Nibp Safety Valve Menu

    NIBP Module, M-NIBP Connect an external mercury manometer with pump to module through the both tubes of the hose. Pump up to about 200 mmHg pressure (range of 150 to 300 mmHg allowed) according to the manometer. Verify that both pressure values in the prompt field match the manometer reading.

  • Page 32: Nibp Pulse Valve Menu

    Datex-Ohmeda S/5 monitors 5.1.4 NIBP Pulse Valve menu NOTE: Parameter values in Service Data are for reference only. Start Test Start test is for starting and Stop test is for stopping the test. Set Valve Set Valve lets you adjust the opening of the pulse valve.

  • Page 33: Nibp Buttons/Leds Menu

    NIBP Module, M-NIBP 5.1.5 NIBP Buttons/Leds menu NOTE: Parameter values in Service Data are for reference only. The front panel LEDs can be turned manually ON and OFF by selecting Auto ON/OFF, Manual ON/OFF, STAT ON/OFF, and Measur. ON/OFF from the menu. Buttons/Leds Data See NIBP Service menu in chapter 5.1 for information on general items Pressure, Zero, Protect handle, Calibr.

  • Page 34: Nibp Pneumatics Menu

    Datex-Ohmeda S/5 monitors 5.1.6 NIBP Pneumatics menu NOTE: Parameter values in Service Data are for reference only. Start Pump/Stop Pump A manual control for the pump. The selection changes to Stop Pump when the pump turns on. Open Exh1/Close Exh1 A manual control for the exhaust valve 1.

  • Page 35: Nibp Watchdog Menu

    NIBP Module, M-NIBP Watchdog BEEP Connect manometer to the front panel and pump pressure into the module. When the AD5 value changes from negative to positive value (at about 5 mmHg) a beep is heard. This is the watchdog threshold pressure. Beyond this pressure the watchdog is active and cut pressures at about 2 min. (adult).
  • Page 36 Datex-Ohmeda S/5 monitors This page intentionally left blank. Document No. 800 1015-1...

  • Page 37: Spare Parts

    NIBP Module, M-NIBP SPARE PARTS 6.1 Spare parts list NOTE: Only changed part numbers are listed under later revisions. To find the desired part: check first the list of the revision that corresponds your device. If the part is not listed there, check the previous revision, etc.
  • Page 38 Datex-Ohmeda S/5 monitors Item Item description Order No. NIBP board, M-NIBP (Rev. 01) *(880359) Use 883011 883902 Cross cylinder-head PT screw 3x20 628709 Document No. 800 1015-1...

  • Page 39: Nibp Module, M-Nibp Rev. 02

    NIBP Module, M-NIBP Item Item description Order No. Cross cylinder-head PT screw 3x10 628703 NIBP frame, M-NIBP 880427 Safety valve (overpressure valve) 877109 NIBP pump, M-NIBP (Rev. 01-02) *(880363) Use 883346 Plastic pump cover, M-NIBP 879176 Front panel sticker see 6.1.5 LED board, M-NIBP (Rev.

  • Page 40: Nibp Module, M-Nibp Rev. 04

    Datex-Ohmeda S/5 monitors 6.1.4 NIBP Module, M-NIBP Rev. 04 Item Item description Order No. Cross recess screw M3×8 black 616215 NIBP board, M-NIBP (Rev. 04) *894368 Document No. 800 1015-1...

  • Page 41: Nibp Module, M-Nibp Rev. 05

    NIBP Module, M-NIBP Item Item description Order No. Screw STZN 3.5×9.5 DIN 7981 62539 Cross cylinder-head screw M3×6 61721 NIBP pump, M-NESTPR, M-NIBP (Rev. 04) *889993 LED board, M-NIBP (Rev. 04) 893882 Magnetic valve 58562 EMC cover 888236 Support plate 893881 Metal frame 888230...

  • Page 42: Front Panel Stickers For S/5 Modules (Round Buttons)

    Datex-Ohmeda S/5 monitors 6.1.7 Front panel stickers for S/5 modules (round buttons) Front panel stickers that are related to the Compact Module type and adaptation: Adaptation codes: DA=Danish, DE=German, EN=English, ES=Spanish, FI=Finnish, FR=French, IT=Italian, JA=Japanese, NL=Dutch, NO=Norwegian, PT=Portuguese, SV=Swedish Adaptation M-NIBP (Rev.05)

  • Page 43: Earlier Revisions

    NIBP Module, M-NIBP EARLIER REVISIONS For service information on the earlier revisions, please refer to: NIBP Module revision 01 Service Manual p/n 880850 NIBP Module revision 02 Service Manual p/n 882580 NIBP Module revision 03 Technical Reference Manual p/n 892953 Document No.
  • Page 44 Datex-Ohmeda S/5 monitors Document No. 800 1015-1...
  • Page 45 APPENDIX A, NIBP Module, M-NIBP APPENDIX A Document No. 8001015-1...
  • Page 46 Datex-Ohmeda S/5 monitors Document No. 800 1015-1...

  • Page 47: Service Check Form

    APPENDIX A, Service check form, NIBP Module, M-NIBP SERVICE CHECK FORM Non-Invasive Blood Pressure Module, M-NIBP Customer Service Module type Service engineer Date OK = Test OK N.A. = Test not applicable Fail = Test Failed N.A. Fail N.A. Fail 1.
  • Page 48 Datex-Ohmeda S/5 monitors 13. Watchdog timer Allowed range Adult 120...140 s Infant 60...70 s 14. Safety valve Allowed range ‘Max press’ ADULT 290...330 mmHg ‘2 s after stop’ ADULT 290...330 mmHg ‘Max press’ INFANT 154...165 mmHg ‘2 s after stop’ INFANT 154...165 mmHg...
