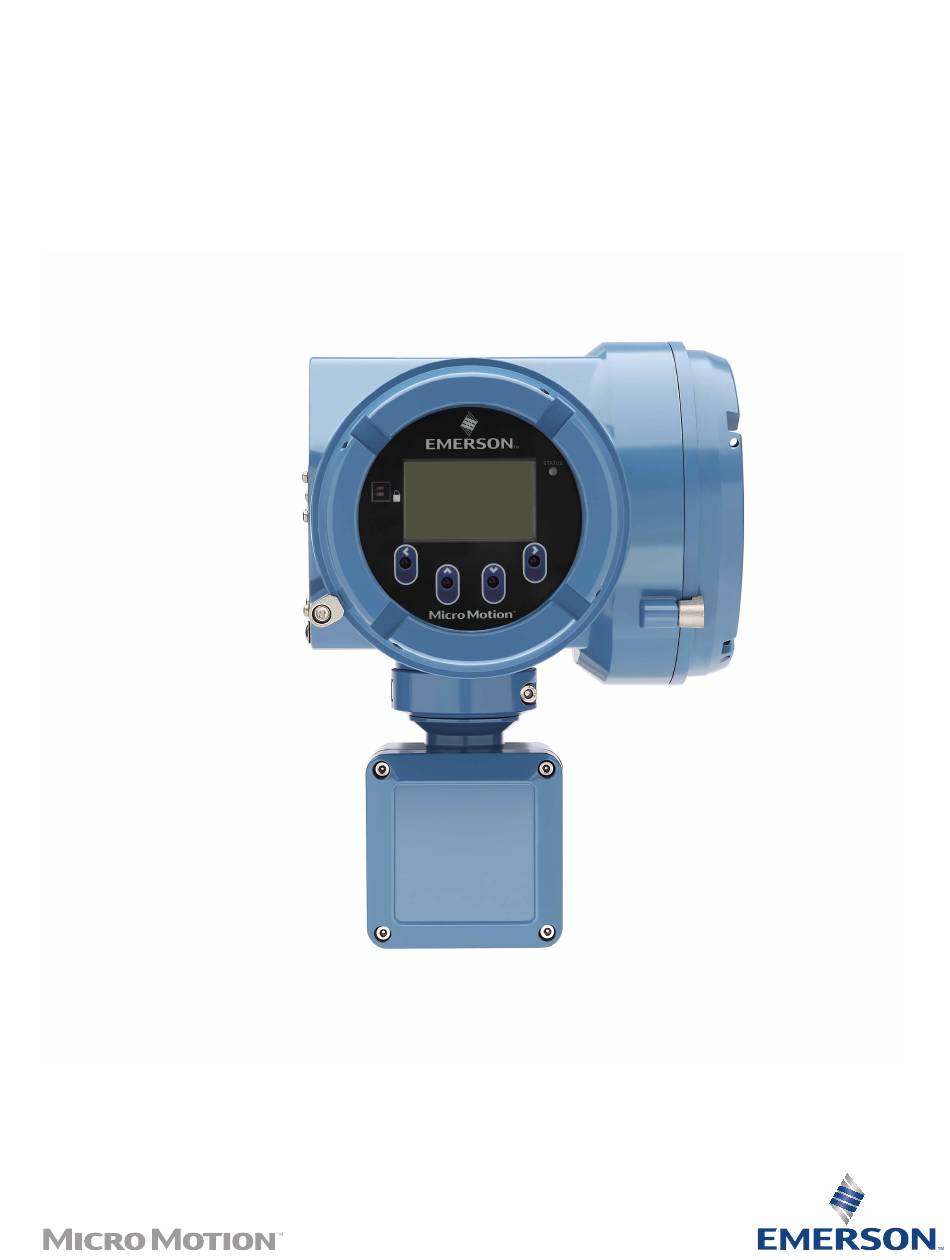

Installation Manual
MMI-20029969, Rev AB
February 2020
™
Micro Motion
5700 Transmitters
™
Installation Manual for F
Fieldbus
OUNDATION

Advertisement

Table of Contents
loading

Related Manuals for Emerson Micro Motion 5700

Summary of Contents for Emerson Micro Motion 5700

  • Page 1 Installation Manual MMI-20029969, Rev AB February 2020 ™ Micro Motion 5700 Transmitters ™ Installation Manual for F Fieldbus OUNDATION...
  • Page 2 Micro Motion employees. Micro Motion will not accept your returned equipment if you fail to follow Micro Motion procedures. Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion Customer Service department.

  • Page 3: Table Of Contents

    Installation Manual Contents MMI-20029969 February 2020 Contents Chapter 1 Before you begin......................5 1.1 About this document........................5 1.2 Hazard messages..........................5 1.3 Related documentation........................5 Chapter 2 Planning........................7 2.1 Installation checklist......................... 7 2.2 Additional considerations for retrofitting existing installations............8 2.3 Power requirements......................... 8 Chapter 3 Mounting and sensor wiring..................
  • Page 4 Contents Installation Manual February 2020 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 5: Before You Begin

    You can find all product documentation on the product documentation DVD shipped with the product or at www.emerson.com. See any of the following documents for more information: • Micro Motion 5700 Product Data Sheet ™ • Micro Motion 5700 Transmitters for F...
  • Page 6 Before you begin Installation Manual February 2020 MMI-20029969 • Modbus Interface Tool • Sensor installation manual Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 7: Chapter 2 Planning

    For ATEX/IECEx installations, strictly adhere to the safety instructions documented in the ATEX/IECEx approvals documentation available on the product documentation DVD shipped with the product or at www.emerson.com. □ Verify that you have the appropriate cable and required cable installation parts for your installation.

  • Page 8: Additional Considerations For Retrofitting Existing Installations

    Function block settings Channel assignment L_Type XD_scale (engineering units assignment) Power requirements Self-switching AC/DC input, automatically recognizes supply voltage: • 85 to 240 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
  • Page 9 Installation Manual Planning MMI-20029969 February 2020 • 18 to 100 VDC, 6 watts typical, 11 watts maximum Note For DC power: • Power requirements assume a single transmitter per cable. • At startup, the power source must provide a minimum of 1.5 amps of short-term current per transmitter and not pull voltage below 18 VDC.
  • Page 10 300 ft (91 m) VDC 20 AWG (0.518 mm²) 500 ft (152 m) VDC 18 AWG (0.823 mm²) 1,000 ft (305 m) RS-485 22 AWG (0.326 mm²) 1,000 ft (305 m) or larger Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 11: Mounting And Sensor Wiring

    Installation Manual Mounting and sensor wiring MMI-20029969 February 2020 Mounting and sensor wiring Mounting and sensor wiring for integral- mount transmitters There are no separate mounting requirements for integral transmitters, and no need to connect wiring between the transmitter and the sensor. Mounting transmitters There are two options available for mounting transmitters: •...
  • Page 12 February 2020 MMI-20029969 Figure 3-1: Mounting bracket to an aluminum transmitter Figure 3-2: Mounting bracket to a stainless steel transmitter 2. For wall-mount installations, secure the mounting bracket to the prepared surface. Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
  • Page 13 Installation Manual Mounting and sensor wiring MMI-20029969 February 2020 Figure 3-3: Wall-mounting bracket and dimensions for an aluminum transmitter A. 2.8 in (71 mm) B. 2.8 in (71 mm) Figure 3-4: Wall-mounting bracket and dimensions for a stainless steel transmitter A.
  • Page 14 2 in (51 mm) in diameter. • Confirm that you have the necessary tools, and the instrument-pole mounting kit shipped with the transmitter. Procedure For pole-mount installations, attach the U-bolt mounting piece to the instrument pole. Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 15: Wire A Remote-Mount Transmitter To The Sensor

    Installation Manual Mounting and sensor wiring MMI-20029969 February 2020 Figure 3-6: Pole-mounting bracket attachment for an aluminum transmitter Figure 3-7: Pole-mounting bracket attachment for a stainless steel transmitter Wire a remote-mount transmitter to the sensor Use this procedure to wire a 4-wire or 9-wire remote-mount transmitter to the sensor. Prerequisites •...
  • Page 16 Connect the cable to the sensor-mounted core processor or junction box as described in the sensor documentation. You can access all product documentation on the documentation DVD shipped with the product or at www.emerson.com. Procedure 1. Remove the transmitter-to-sensor wiring compartment cover to reveal the terminal connections.
  • Page 17 Installation Manual Mounting and sensor wiring MMI-20029969 February 2020 Important Terminate the 4-wire cable drain wires only at the sensor/core processor end of the cable. See the sensor installation manual for more detail. Do not connect the 4-wire cable drain wires to the ground screw located inside the 5700 junction box. •...

  • Page 18: Ground The Meter Components

    • The earth ground terminal is located inside the power wiring compartment. • The external ground screw is located on the side of the transmitter located below the transmitter tag. Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 19: Rotate The Transmitter On The Sensor (Optional)

    Installation Manual Mounting and sensor wiring MMI-20029969 February 2020 Rotate the transmitter on the sensor (optional) In integral installations, you can rotate the transmitter on the sensor up to 360º in 45º increments. Procedure 1. Using a 4 mm hex key, loosen and remove the clamp securing the transmitter head in place.

  • Page 20: Rotate The User Interface On The Transmitter (Optional)

    The user interface on the transmitter electronics module can be rotated 90°, 180°, or 270° from the original position. Figure 3-15: Display components A. Transmitter housing B. Sub-bezel C. Display module D. Display screws E. End-cap clamp F. Cap screw G. Display cover Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 21: Rotate The Sensor Wiring Junction Box On A Remote-Mount Transmitter (Optional)

    Installation Manual Mounting and sensor wiring MMI-20029969 February 2020 Procedure 1. Shut off power to the unit. WARNING If the transmitter is in a hazardous area, wait five minutes after disconnecting the power. Failure to do so could result in an explosion causing death or injury. 2.
  • Page 22 4. Replace the clamp in its original position and tighten the cap screw. Torque to 28 in lbf (3.16 N m) to 30 in lbf (3.39 N m). Figure 3-18: Re-attachment of the clamp Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 23: Wiring The Channels

    Installation Manual Wiring the channels MMI-20029969 February 2020 Wiring the channels Available channels Signal Channel A Channel C Channel D Channel fieldbus (FISCO “ia” IS mA Output IS Frequency Output OUNDATION options or FISCO “ic”) IS Discrete Output Signal Channel A Channel C Channel D Channel...

  • Page 24: I/O Wiring

    Figure 4-2: Channel and wiring configurations label I/O wiring Use this section to wire a 5700 transmitter with F fieldbus. OUNDATION Important The transmitter is either FISCO- or FNICO-approved. For FISCO-approved transmitters, a barrier is required. Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 25: Fisco-Input Entity Parameters

    Installation Manual Wiring the channels MMI-20029969 February 2020 Figure 4-3: 5700 F fieldbus wiring OUNDATION A. Bus power supply B. F fieldbus network per F fieldbus wiring specification OUNDATION OUNDATION C. Spur to network per F fieldbus wiring specification OUNDATION D.

  • Page 26: Wiring For Nonhazardous Installations

    Wire to the appropriate output terminal and pins. Figure 4-4: mA output wiring A. mA output B. Channel B C. 10–30 VDC (maximum) D. Loop resistor E. Measurement device Related information mA Output loop resistance Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
  • Page 27 Installation Manual Wiring the channels MMI-20029969 February 2020 mA Output loop resistance Figure 4-5: mA Output: loop resistance A. Loop resistor (ohms) B. Supply voltage VDC (V) C. Rmax = maximum value of loop resistor allowed D. Rmin = minimum value of loop resistance required Loop resistance equation Rmax = (Vsupply −...
  • Page 28 C. 8-30 VDC (maximum) D. Relay or indicator Current = (Vsupply – 0.8V) / (1690 ohms + resistance of D in ohms) Related information Frequency Output high and low voltages for nonhazardous installations Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 29: Wiring For Hazardous Installations

    Installation Manual Wiring the channels MMI-20029969 February 2020 Frequency Output high and low voltages for nonhazardous installations Figure 4-8: 24VDC supply A. Output voltage (V) B. Load resistance RL (Ω) C. Low voltage D. High voltage E. Voltage (volts) F. Time High and low voltage equations High voltage ≈...
  • Page 30 Wire the mA Output for hazardous installations Prerequisites Important Meter installation and wiring should be performed only by suitably-trained personnel using the appropriate government and corporate safety standards. Procedure Wire to the appropriate output terminal and pins. Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
  • Page 31 Installation Manual Wiring the channels MMI-20029969 February 2020 Figure 4-9: mA Output wiring in a hazardous area A. mA Output B. Channel B C. 10–30 VDC (maximum) D. Loop resistor E. Measurement device F. Safety barrier G. Rbarrier Add the Rbarrier and loop resistor D together to determine the proper Supply Voltage VDC(Volts).
  • Page 32 Rmax = [(Vsupply – 6V) / 0.003] – Rbarrier (maximum value of load resistor allowed) • Rmin = 0 ohms (minimum value of load resistance required) E. Counter F. Safety barrier G. Rbarrier Related information Frequency Output high and low voltages for hazardous installations Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
  • Page 33 Installation Manual Wiring the channels MMI-20029969 February 2020 Frequency Output high and low voltages for hazardous installations Figure 4-12: 24VDC supply with a 300-ohm barrier A. Output voltage (V) B. Load resistance RL (Ω) C. Low voltage D. High voltage E.
  • Page 34 Wiring the channels Installation Manual February 2020 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 35: Wiring The Power Supply

    Installation Manual Wiring the power supply MMI-20029969 February 2020 Wiring the power supply You can install a user-supplied switch in the power supply line. Important For compliance with the Low Voltage Directive 2014/35/EU (European installations), a switch in close proximity to the transmitter is required. Procedure 1.
  • Page 36 Wiring the power supply Installation Manual February 2020 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 37: Power Up The Transmitter

    Installation Manual Power up the transmitter MMI-20029969 February 2020 Power up the transmitter The transmitter must be powered up for all configuration and commissioning tasks, or for process measurement. Procedure WARNING If the transmitter is in a hazardous area, do not remove the housing cover while the transmitter is powered up.
  • Page 38 Power up the transmitter Installation Manual February 2020 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 39: Chapter 7 Guided Setup

    Installation Manual Guided setup MMI-20029969 February 2020 Guided setup At initial startup of the transmitter, the guided configuration screen appears on the transmitter display. This tool guides you through basic configuration of the transmitter. The guided setup allows you to upload configuration files, set the transmitter display options, configure channels, and review sensor calibration data.
  • Page 40 Guided setup Installation Manual February 2020 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 41: Using The Display Controls

    Installation Manual Using the display controls MMI-20029969 February 2020 Using the display controls The transmitter display interface includes a display (LCD panel) and four optical switches – left, up, down, and right arrow keys – used to access the display menus and navigate the display screens.
  • Page 42 Using the display controls Installation Manual February 2020 MMI-20029969 Figure 8-2: Example 1: Active arrow indicators on the transmitter display Figure 8-3: Example 2: Active arrow indicators on the transmitter display Micro Motion 5700 transmitters for F Fieldbus OUNDATION...

  • Page 43: Available Service Port Connection

    Installation Manual Available service port connection MMI-20029969 February 2020 Available service port connection Use the service port connection to download or upload data from/to the transmitter. To access the service port, use: • Any commonly-available USB drive Note The USB drive must be in FAT format. The transmitter does not recognize NTFS format. •...
  • Page 44 © 2020 Micro Motion, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE, ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation Solutions family of companies. All other marks are property of their respective owners.
