Model
Fuel Type
Minimum Supply Pressure
Manifold Pressure - High
Manifold Pressure - Low
Orifice Size -Altitude 0-2000 ft.
Orifice Size - Altitude 2000-4500 ft.
Minimum Input
Altitude 0-2000 ft. (0-610m)
Minimum Input
Altitude 2000-4500 ft. (610-1372m)
Maximum Input
Altitude 0-2000 ft. (0-610m)
Maximum Input
Altitude 2000-4500 ft. (610-1372m)
Vent Sizing
Approved Venting Systems
Flex Vent Systems:

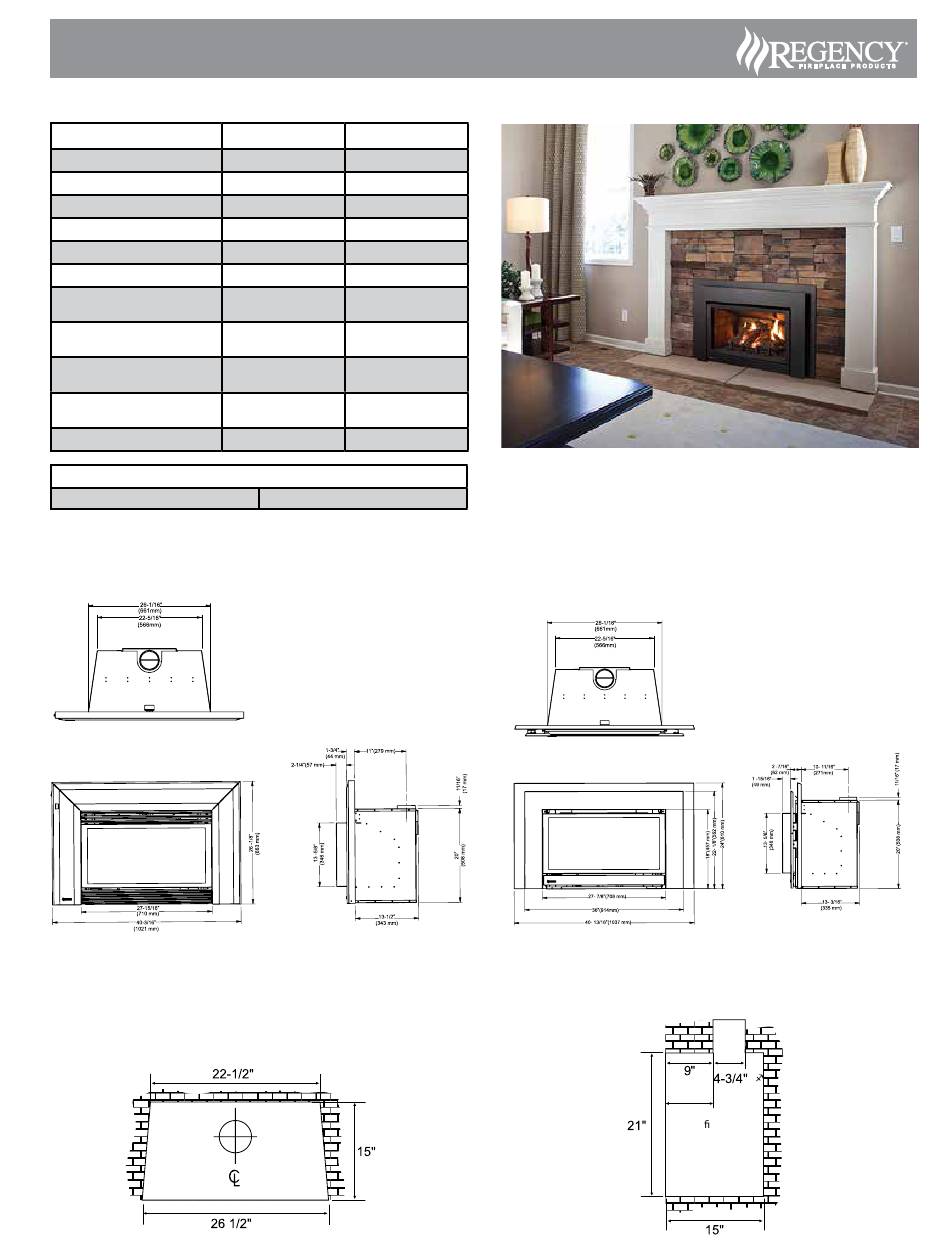

UNIT DIMENSIONS WITH STANDARD FACEPLATE
The minimum fireplace dimensions for the FPI gas fireplace insert are shown in the following diagrams:
U31 Gas Insert
U31-NG10
U31-LP10
Natural Gas
Propane
5" W.C. (1.25 kPa)
12" W.C. (2.99 kPa)
3.5" W.C. (0.87 kPa)
10" W.C. (2.49 kPa)
1.6" W.C. (0.40 kPa)
6.4" W.C. (1.59 kPa)
#37 DMS
#52 DMS
#40 DMS
#53 DMS
20,600 BTU/h
22,000 BTU/h
(6.04kW)
(6.45 kW)
19,200 BTU/h
20,000 BTU/h
(5.62 kW)
(5.86 kW)
30,000 BTU/h
28,000 BTU/h
(8.79 kW)
(8.21 kW)
27,200 BTU/h
25,000 BTU/h
(7.97 kW)
(7.33 kW)
4" B-Vent
4" B-Vent
FPI AstroCap™ Flex Vent
MINIMUM FIREPLACE DIMENSIONS
UNIT DIMENSIONS WITH LOW PROFILE FACEPLATE
Standard
Faceplate
8-1/8
Low pro le
"
U31-10 Gas Insert | 1
Advertisement
Related Manuals for Regency Fireplace Products U31-NG10
Summary of Contents for Regency Fireplace Products U31-NG10
- Page 1 U31 Gas Insert Model U31-NG10 U31-LP10 Fuel Type Natural Gas Propane Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (2.99 kPa) Manifold Pressure - High 3.5” W.C. (0.87 kPa) 10” W.C. (2.49 kPa) Manifold Pressure - Low 1.6” W.C. (0.40 kPa) 6.4” W.C. (1.59 kPa) Orifice Size -Altitude 0-2000 ft. #37 DMS #52 DMS Orifice Size - Altitude 2000-4500 ft. #40 DMS #53 DMS Minimum Input 20,600 BTU/h 22,000 BTU/h Altitude 0-2000 ft. (0-610m) (6.04kW) (6.45 kW) Minimum Input 19,200 BTU/h 20,000 BTU/h Altitude 2000-4500 ft.
- Page 2 U31 mantle cle U31-10 Gas Insert Clearances for Standard Faceplate / Clearances Low Profile Faceplate with Safety Screen Unless otherwise stated the clearances listed below are minimum distances to combustible materials. Please Note: A major cause of chimney related fires is due to a failure to maintain required clearances (air space) to combustible materials.
- Page 3 U31-10 Gas Insert Venting THE APPLIANCE MUST NOT BE CONNECTED TO A CHIM- NEY FLUE SERVING A SEPARATE SOLID FUEL BURNING APPLIANCE. This appliance is designed to attach to a 4” diameter type B-Vent or listed gas fuel type vent liner running the full length of the chimney. A minimum flue height of 12 feet is recommended. B-Vent must be supported by a vent support - supplied by vent manufacturer. See chart on this page for minimum distances from roof. The FPI Insert incorporates its own internal draft hood, so no additional external draft hood is required. Periodically check that the vent is unrestricted and an adequate draft is present when the unit is in operation. (See page 8 for spillage test.) Before installing vent system ensure that the damper plate is open and secure to prevent the damper plate from falling down and crushing the liner. WARNING: Operation of this appliance when not connected to a properly installed and maintained venting system or tampering with the blocked vent shutoff system can result in carbon monoxide (CO) poisoning and possible death.
