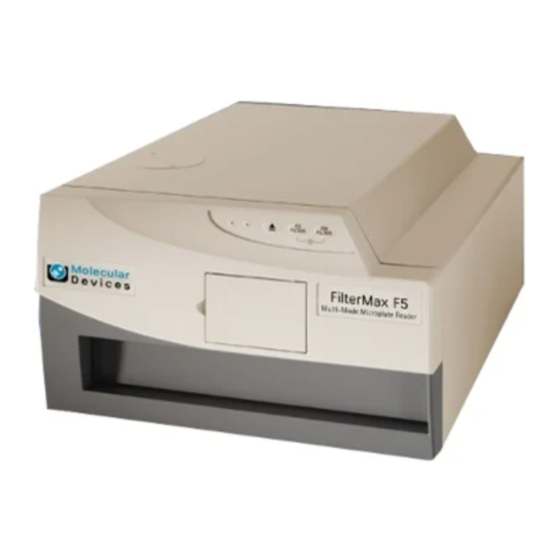

FilterMax F3 and F5 Multi‐Mode Microplate Readers
Unpacking and Setup Guide
Before unpacking and setting up the FilterMax™ F3 or FilterMax™ F5 Microplate Reader, prepare a dry, flat
work area that has sufficient space for the instrument, host computer, and required cables.
Unpacking the Instrument
The packaging is specifically designed to protect the instrument during transportation.
A transport lock is placed on microplate drawer to protect the instrument from damage during shipping. The
transport lock must be removed before powering on the instrument.
Note: The shipping box and all packaging materials, including the transport lock, should be retained in
case of future transport needs. Do not use tools that can damage the packaging or the instrument.
CAUTION! Do not touch or loosen screws or parts other than those specifically designated in the
instructions. Doing so could cause misalignment and possibly void the warranty.
To unpack the instrument:
1. Inspect the box for visible damage that occurred during transportation. In case of damage, inform the
supplier immediately and keep the damaged packaging.
2. Open the box lid and remove the accessories box.
3. Carefully lift the instrument out of the box by the molded foam packaging encasing it.
4. Gently place the instrument on a dry, flat area.
5. Remove the molded foam packaging from the instrument and place the foam back in the shipping box.
6. Remove the plastic surrounding the instrument and discard the plastic.
CAUTION! The instrument can be damaged if the transport locks are not removed before the
instrument is powered on.
For research use only. Not for use in diagnostic procedures.
The trademarks mentioned herein are the property of Molecular Devices, LLC or their respective owners. These trademarks
may not be used in any type of promotion or advertising without the prior written permission of Molecular Devices, LLC.
Patents:
http://www.moleculardevices.com/productpatents
5016209 B
December 2014
