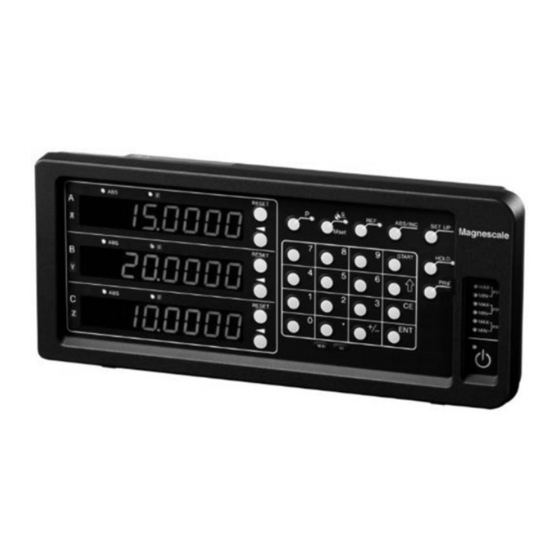

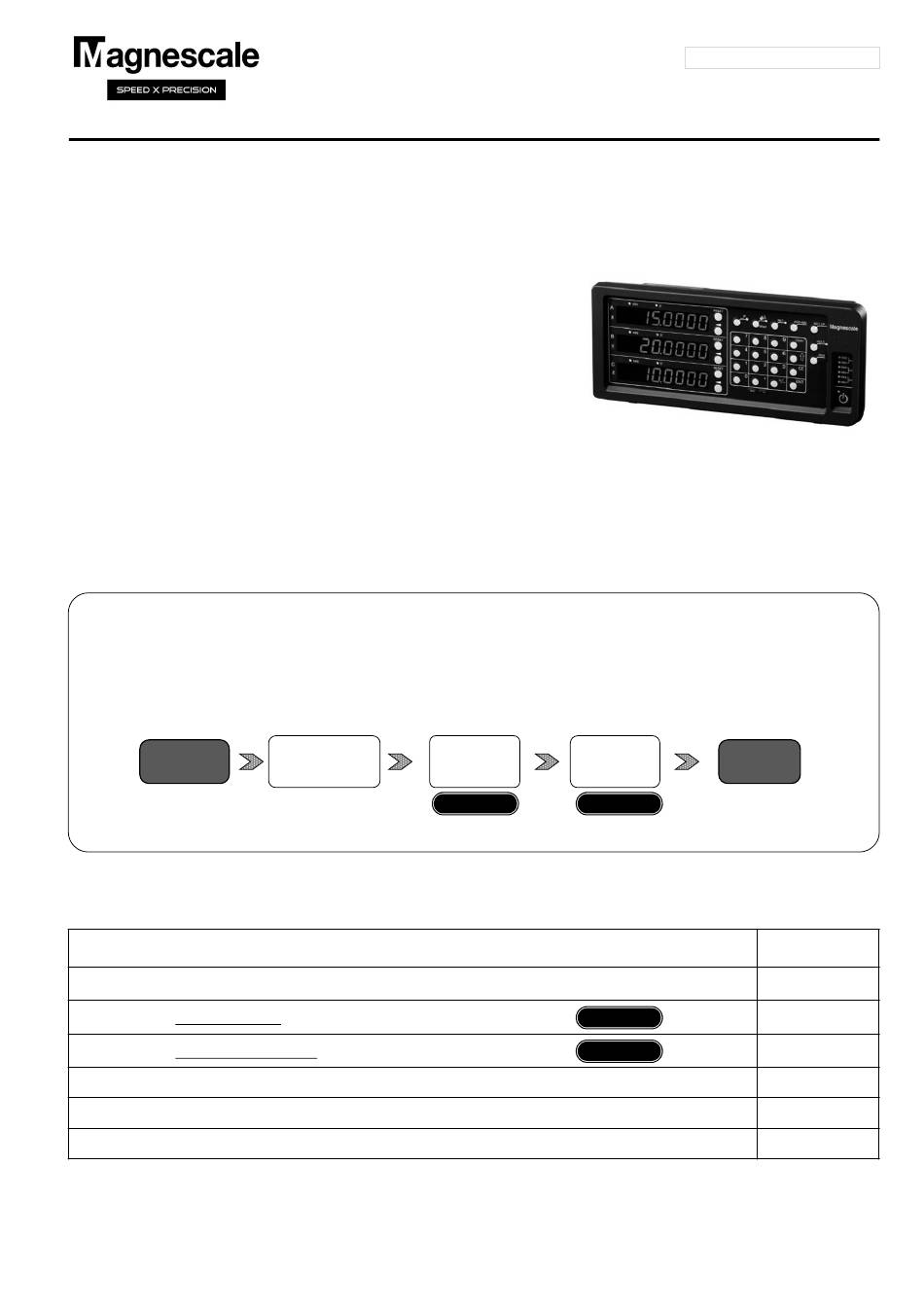

LY72
Initial Setup Manual
START
Check the conditions of use
Table of contents
Preparations before making the initial settings (checking conditions of use)
How to set up Basic Settings
How to set up Advanced Settings (continued from Basic Settings)
Factory Default (All Clear)
Appendix 1: Front panel, Alarm indication
Appendix 2: Adapter connections (scales and gauges)
Initial Setup Flow
Advance
Preparation
Settings
STEP １～３
Contents
LY72 Initial Setup Manual
Basic
Advanced
Settings
STEP ４～５
STEP １～３
STEP ４～５
Ver.2 (2020.11) CS&S
Confirmation: software version 1.15
LY72
Finished
Page
2 to 4
5 to 7
8 to 10
11
12
13 to 14
1/14
Advertisement
Related Manuals for Magnescale LY72
Summary of Contents for Magnescale LY72
- Page 1 How to set up Advanced Settings (continued from Basic Settings) 8 to 10 STEP ４～５ Factory Default (All Clear) Appendix 1: Front panel, Alarm indication Appendix 2: Adapter connections (scales and gauges) 13 to 14 1/14 LY72 Initial Setup Manual...
- Page 2 SZ70-1 SR128 / SR127 0.5μm CH01-LW**C SZ51-MS01 + SZ70-1 DL310B/330B 10μm DZ-51 SZ70-1 SR138R(GB-ER) 0.5μm CH04-03C DK series 0.1μm or CE29-** 0.5μm * For adapter information, refer to Appendix 2 Adapter Connection in this Manual 2/14 LY72 Initial Setup Manual...
- Page 3 5: 5 minutes later It will return when the length measurement unit is moved or 10:10 minutes later the Key operation is performed again. 30:30 minutes later 60:60 minutes later 3/14 LY72 Initial Setup Manual...
- Page 4 Setting: RS232C parity Set RS232C parity none Odd number Even number Setting: RS232C Stop bit Set the stop bit of RS232C 1bit 2bit RS232C data length Set the data length of RS232C Setting: 8bit 7bit 4/14 LY72 Initial Setup Manual...
- Page 5 ABC display: Function for digital gauge type measuring unit XYZ display: Function for length scale type measuring unit U.S.A. ＵＳ The functions that can be used vary depending on the axis label selection. ＪＰ N Japan 5/14 LY72 Initial Setup Manual...
- Page 6 If there is no change in the setting, the next item is displayed with key. 5μm 1 degree - The ABS lamp blinks while the parameter is selected with the axis selection key.. 1μm 6/14 LY72 Initial Setup Manual...
- Page 7 After the second time, the screen is displayed when the power is turned on. ⑤ Press key. The display returns to normal. This completes the basic settings. Key to be used at the end of the basic setting mode (LY72) Reset key Φ lamp Select axis key ABS lamp...
- Page 8 Liner Error Enter a correction value of ±0.600mm per 1m of distance (Linear compensation) Input up to ±1.0000 mm with expansion selection. default Enter numerical values on a numeric keypad. ～ Normal ～ Extended selection 8/14 LY72 Initial Setup Manual...
- Page 9 Inhibition Weak Inhibition Strong SLEEP If no operation or scale movement is performed for a certain period of time, sleep mode the display will turn off. default none 5 min. 30 min. 1 min. 10 min. 9/14 LY72 Initial Setup Manual...
- Page 10 2 stop bit LENGTH Data length Select RS232C data length default 8 bit 7 bit Step 5 6． When the advanced settings are complete, switch to the normal display. Press key. This completes the initial settings. 10/14 LY72 Initial Setup Manual...
- Page 11 4. Turn off the primary power supply to the AC adapter. How to check the software version: Power ON → Display LY → Key → Version Press any key to return to the LY display. 11/14 LY72 Initial Setup Manual...
- Page 12 Measurement unit not Storage data error connected Reference point detection Speed over (Note） error Overflow (Light） Power failure Note: When using an adapter connection (SZ**), no speed override indication is shown, but rather an error message. 12/14 LY72 Initial Setup Manual...
- Page 13 Scale Resolution Adapter Counter SR-1711(GP)、SR10A/741(GS)、 0.5μm SZ05-T01 LG20 SR50A(GF,GF-R)、SR30A(GM)、 LH70/71/71A/72 SR801/801R(GL) LY71/72 Screws * HA13A, 15A, 23A and 25A are used as head amps SZ05-T01 Head-amp Connector Screws Use screws to secure it in place. 13/14 LY72 Initial Setup Manual...
- Page 14 Head-amp Connector Screws Use screws to secure it in place. Gauge Resolution Adapter Counter DE12BR/30BR 0.1μm SZ70-1 LG20 LH70/71/71A/72 Counter unit LY71/72 Cable (300mm) Screws Head-amp Use screws to secure it in place. Connector SZ70-1 14/14 LY72 Initial Setup Manual...
