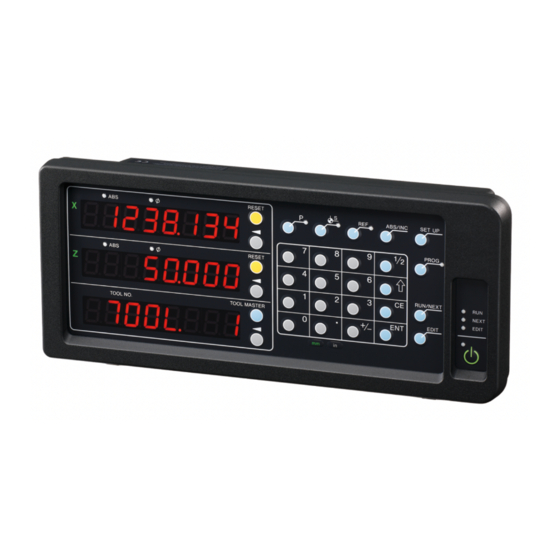

Magnescale LH72 Initial Setup Manual
Hide thumbs
Also See for LH72:
- Quick start manual (3 pages) ,
- Instruction manual (338 pages) ,
- Quick reference manual (6 pages)
Advertisement
Quick Links
LH72
Initial Setup Manual
START
Check the conditions of use
Table of contents
Preparations before making the initial settings (checking conditions of use)
How to set up Basic Settings
How to set up Detailed Settings (continued from Basic Settings)
Factory Default (All Clear)
Appendix 1: Front panel, Alarm indication
Appendix 2: Adapter connections (scales and gauges)
Initial Setup Flow
Advance
Preparation
Settings
STEP １～３
Contents
LH72 initial Setup Manual
Basic
Detailed
Settings
STEP ４～５
STEP １～３
STEP ４～５
Ver.4 (2020.11) CS&S
Confirmation: software version 4.04
LH72
Finished
Page
2 to 3
4 to 6
7
9
10
11 to 12
1/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Magnescale LH72
Summary of Contents for Magnescale LH72

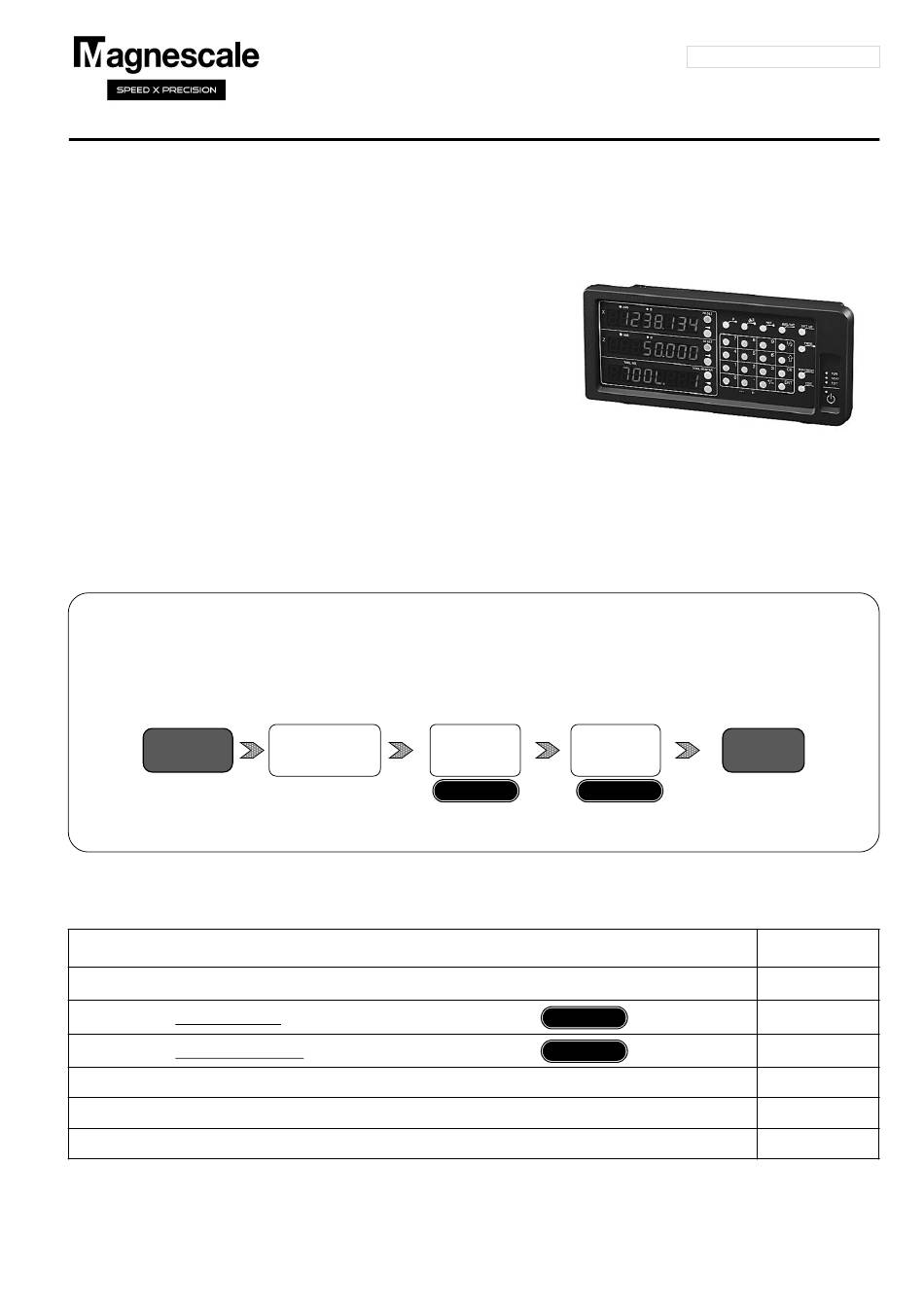

- Page 1 4 to 6 STEP １～３ How to set up Detailed Settings (continued from Basic Settings) STEP ４～５ Factory Default (All Clear) Appendix 1: Front panel, Alarm indication Appendix 2: Adapter connections (scales and gauges) 11 to 12 1/12 LH72 initial Setup Manual...
- Page 2 SZ70-1 SR128 / SR127 0.5μm CH01-LW**C SZ51-MS01 + SZ70-1 DL310B/330B 10μm DZ-51 SZ70-1 SR138R(GB-ER) 0.5μm CH04-03C DK series 0.1μm or CE29-** 0.5μm * For adapter information, refer to Appendix 2 Adapter Connection in this Manual 2/12 LH72 initial Setup Manual...
- Page 3 5: 5 minutes later It will return when the length measurement 10:10 minutes later unit is moved or the Key operation is performed again. 30:30 minutes later 60: 60 minutes later 3/12 LH72 initial Setup Manual...
- Page 4 DC input Edit key After about 2 seconds Enter key AC primary power source LH72 (3 axes input) Continued on next page Pressing key changes the basic setting mode in the order in which it is set. SIG RES COUNTRY （addition display）...
- Page 5 1 degree Display method: - For each setting item, the current setting contents are displayed after about 1 second. If 1μm there is no change in the contents, move to the next section with key. 5/12 LH72 initial Setup Manual...
- Page 6 Press key. ⑤ Press key. The display returns to normal. This completes the basic settings. Key to be used at the end of the basic setting mode (LH72) Reset key Φ lamp (two times display) ABS lamp Select axis key...
- Page 7 In order to use this function, it is necessary to Extended res. measure the section error of the machine with a laser ～ interferometer, length reference device, etc. in advance. 7/12 LH72 initial Setup Manual...
- Page 8 (sleep) 5 min. none default 30 min. 1 min. 10 min. Step 5 6． When the Detailed Settings are complete, switch to the normal display. Press key. This completes the initial settings.. 8/12 LH72 initial Setup Manual...
- Page 9 ４．"RUN" LEDs will be lit. ５. Press key to confirm the number of input axis. In case of LH72-3 is displayed. ６．Turn off the primary power supply of the AC adapter. How to check the software version: Power ON → Display LH →...
- Page 10 Measurement unit not connected Error in reference point Speed over (Note） detection Program error Overflow Program error Power failure Note: When using an adapter connection (SZ**), no speed override indication is shown, but rather an error message. 10/12 LH72 initial Setup Manual...
- Page 11 Scale Resolution Adapter Counter SR-1711(GP)、SR10A/741(GS)、 0.5μm SZ05-T01 LG20 SR50A(GF,GF-R)、SR30A(GM)、 LH70/71/71A/72 SR801/801R(GL) LY71/72 Screws * HA13A, 15A, 23A and 25A are used as head amps SZ05-T01 Head-amp Connector Screws Use screws to secure it in place. 11/12 LH72 initial Setup Manual...
- Page 12 Head-amp Connector Screws Use screws to secure it in place. Gauge Resolution Adapter Counter DE12BR/30BR 0.1μm SZ70-1 LG20 LH70/71/71A/72 Counter unit LY71/72 Cable (300mm) Screws Head-amp Use screws to secure it in place. Connector SZ70-1 12/12 LH72 initial Setup Manual...
