Azbil Infilex WY5317C Specifications & Instructions

General

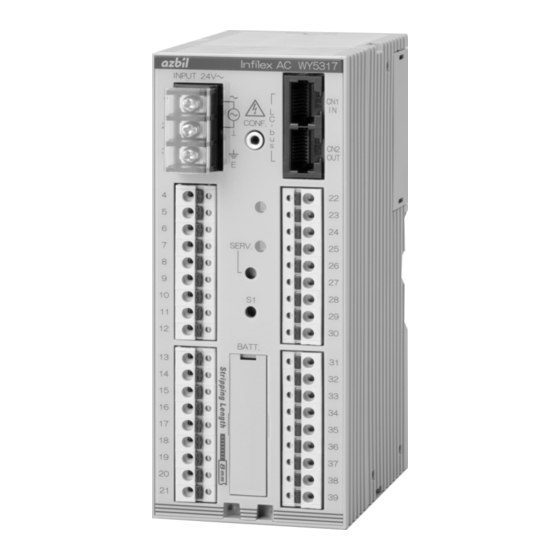

Infilex AC (Infilex: named for "Infinity" and "Flexible") Model
WY5317C is a DDC (direct digital control) controller for AHU
(air handling unit). It can be placed in a small place such as
an AHU control panel.
Infilex AC is equipped with inputs and outputs suitable for
AHU control, and its software can be freely edited in
response to the applications.
In terms of operation, Infilex AC can be operated with a user
™
terminal (Neopanel / Neoplate) or Operator Panel to
correspond with various situations.
advanced control and management by communicating with
BMS (building management system) savic-net
®
LonTalk protocol. Infilex AC integrated into BMS enables
autonomous control since Infilex AC itself has the time
scheduling function.
Features
•
Compact design:
Small size body can be fit into a control panel of a
compact AHU unit.
•
Various input/output (I/O) configurations:
Model number changes depending on the number of its
I/O points, which allows external cooling control,
humidification, and other AHU controls.
•
User interface module (Operator Panel):
Operator Panel (panel mount type/integral type)
connected to Infilex AC allows you, without changing the
settings from the BMS center unit, to change the Infilex
AC settings.
•
Remote control with a user terminal:
™
Neopanel or Neoplate is connectable, so that a user at
a remote location can perform ON/OFF operation and
change temperature setting.
•
Autonomous distributed control:
Even if a trouble occurs in the BMS center unit, the
backup operation is performed individually to distribute
potential risks caused by malfunction of the system.
∗
Azbil Corporation's Infilex series controllers: Infilex is named for "Infinity" and "Flexible."
™
Infilex
AHU Controller
Model WY5317C
Besides, it performs
™
FX via
•
•
•
•
1
Specifications/Instructions
AC
I/O module:
To Model WY5317C0400, one I/O module can be added
so that the number of I/O points is increased.
Cooperation with BMS:
To perform advanced control and management, Infilex
AC can directly communicate with the BMS center unit
™
(savic-net FX client PC).
Installation:
Quick-fit screwless (clamp) terminal blocks are used for
the I/O terminal block, ensuring the labor saving of the
wiring work.
Additionally, a desired mounting method can be selected
from two kinds of mounting methods, DIN rail mounting
and screw mounting.
CE Marking certified product:
Infilex AC conforms to all the applicable standards of CE
Marking (Class A).
AB-6584
