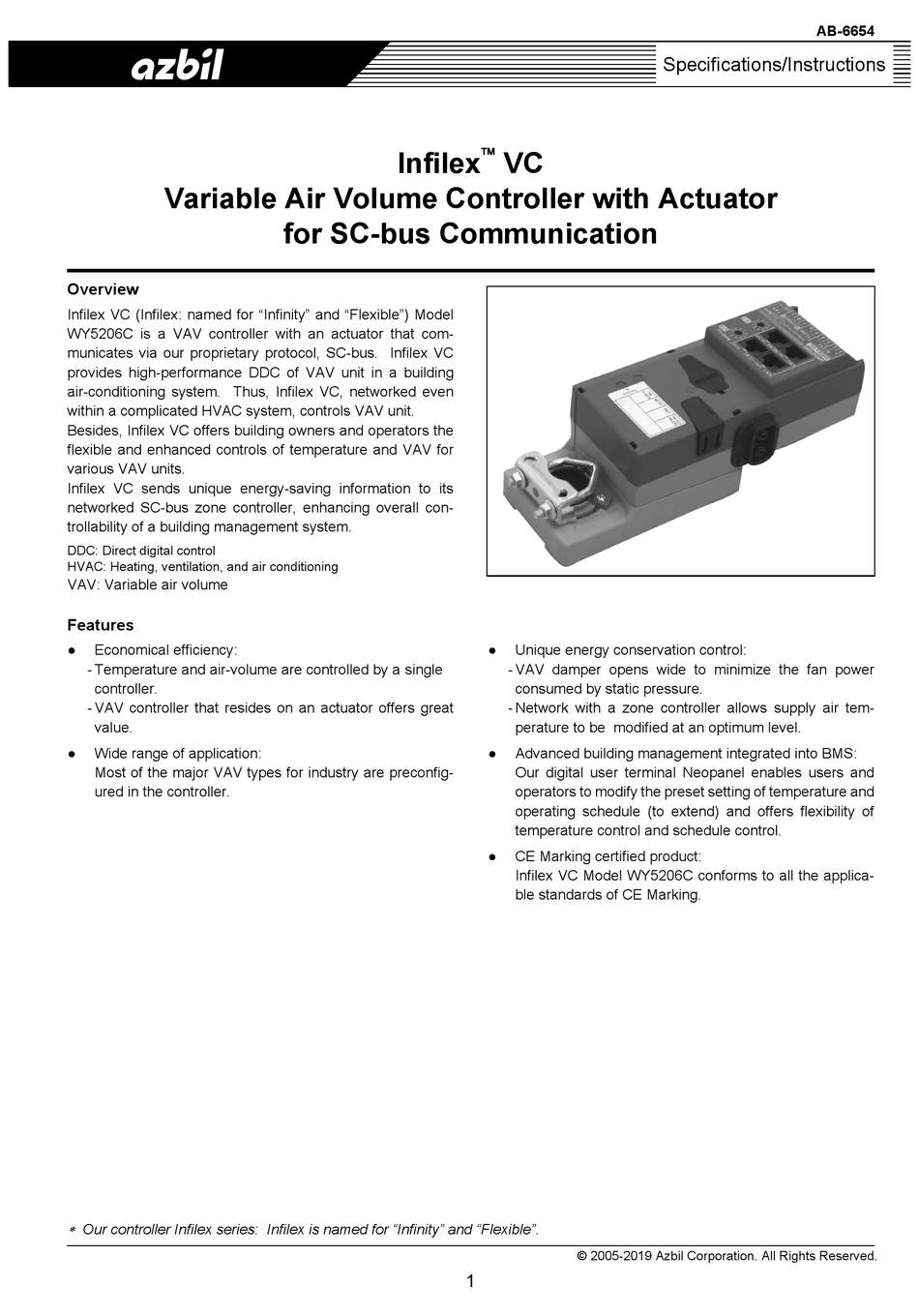

Variable Air Volume Controller with Actuator
Overview
Infilex VC (Infilex: named for "Infinity" and "Flexible") Model
WY5206C is a VAV controller with an actuator that com-
municates via our proprietary protocol, SC-bus. Infilex VC
provides high-performance DDC of VAV unit in a building
air-conditioning system. Thus, Infilex VC, networked even
within a complicated HVAC system, controls VAV unit.
Besides, Infilex VC offers building owners and operators the
flexible and enhanced controls of temperature and VAV for
various VAV units.
Infilex VC sends unique energy-saving information to its
networked SC-bus zone controller, enhancing overall con-
trollability of a building management system.
DDC: Direct digital control
HVAC: Heating, ventilation, and air conditioning
VAV: Variable air volume
Features
●
Economical efficiency:
- Temperature and air-volume are controlled by a single
controller.
- VAV controller that resides on an actuator offers great
value.
●
Wide range of application:
Most of the major VAV types for industry are preconfig-
ured in the controller.
Our controller Infilex series: Infilex is named for "Infinity" and "Flexible".
Infilex
for SC-bus Communication
VC
●
Unique energy conservation control:
- VAV damper opens wide to minimize the fan power
consumed by static pressure.
- Network with a zone controller allows supply air tem-
perature to be modified at an optimum level.
●
Advanced building management integrated into BMS:
Our digital user terminal Neopanel enables users and
operators to modify the preset setting of temperature and
operating schedule (to extend) and offers flexibility of
temperature control and schedule control.
●
CE Marking certified product:
Infilex VC Model WY5206C conforms to all the applica-
ble standards of CE Marking.
© 2005-2019 Azbil Corporation. All Rights Reserved.
1
AB-6654
Specifications/Instructions
