General
Infilex ZM (Infilex: named for "Infinity" and "Flexible") Model
WY5322, integrated into BMS (building management
system),
manages
remote
'sub-controllers'), such as Infilex VC, Infilex FC, and
Infilex SC.
Up to 50 remote units can be connected. Infilex ZM can
control these units separately as well as per group.
Infilex ZM communicates with BMS (savic-net
the transmission trunk line LC-bus (LonTalk
with the remote units through the transmission trunk line
®
LS-bus (LonTalk
protocol).
Features
•
Compact design
Small size body ensures space saving.
•
Installation:
A quick-fit screwless (clamp) terminal block is used for
the communication terminal block of the I/O module,
ensuring the labor saving of the wiring work.
Additionally, either DIN rail mounting or screw mounting
can be selected.
•
Management of remote units
Infilex ZM manages the connected remote units (Infilex
VC, Infilex FC, Infilex SC, etc., max. 50 units
connectable), allowing the BMS center unit to execute
ON/OFF operation, failure monitoring, measuring, and
setting of each remote unit separately. Infilex ZM can
also manages the remote units by group and is
applicable to any group configuration consisting of up to
50 units of Infilex VC and Infilex FC. Additionally, Infilex
ZM provides flexible management. For example, group
ON/OFF can be commanded even when individual
measuring is commanded.
•
Risk diversification and high-speed supervision
Infilex ZM has 50 programs of time schedules, analog
alarm monitoring, and runtime/cycle-count integrating in
order to manage the connected Infilex VC, Infilex FC,
Infilex SC, etc. This achieves diversification of risks and
high-speed supervision of BMS.
∗
Azbil Corporation's controller Infilex series: Infilex is named for "Infinity" and "Flexible".
Infilex

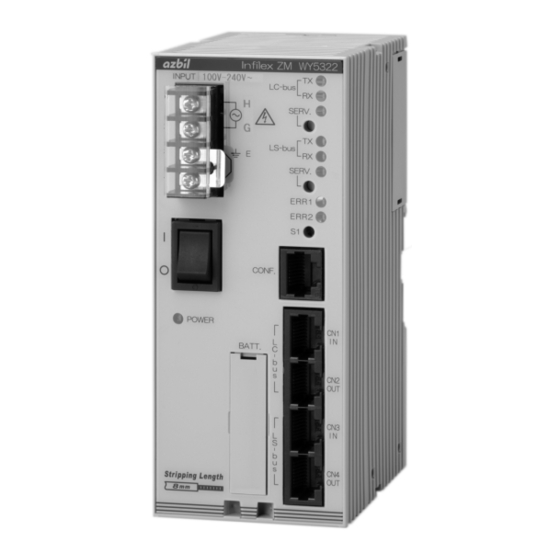

Zone Manager
Model WY5322
units
(also
called
as
™
FX) through
®
protocol) and
™
ZM
•
Various controls
One Infilex ZM controls up to 4 sets of VAV (VAV:
variable air volume, controlled by Infilex VC) and AHU
(controlled by Infilex GC or Infilex AC).
control of supply air temperature, fan speed control,
interlocking operation are available. Additionally, the
mixing loss control of the interior VAV and perimeter
FCU (fan coil unit) can be performed.
•
Support functions
Infilex ZM supports to adjust VAV by setting the
max./min. air volume levels of all VAV units included in a
specified set.
Infilex ZM also supports to adjust
AHU/FCU flow rate and to flush the piping by fully
opening and closing all the valves that the Infilex FC and
Infilex SC control.
•
CE Marking certified product:
Infilex ZM conforms to all the applicable standards of CE
Marking (Class A).
1
AB-6579
Specifications/Instructions
Load reset

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infilex ZM WY5322 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Azbil Infilex ZM WY5322

Summary of Contents for Azbil Infilex ZM WY5322

  • Page 1 Infilex VC, Infilex FC, Infilex SC, etc. This achieves diversification of risks and high-speed supervision of BMS. ∗ Azbil Corporation’s controller Infilex series: Infilex is named for “Infinity” and “Flexible”.

  • Page 2: Safety Instructions

    This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representative.

  • Page 3: System Configurations

    AB-6579 System Configurations ™ Infilex ZM integrated into BMS: savic-net Client PC ® BACnet ® LC-bus (LonTalk protocol) ® LS-bus (LonTalk protocol) ™ Infilex Model WY5322 ™ ™ ™ Infilex Infilex Infilex Model WY5307 Model WY5305 Model WY5306 ™ Infilex Model WY5317C ™...

  • Page 4: Model Numbers

    AB-6579 Model Numbers Model number Description WY5322 Base model number 100 V AC to 240 V AC power 0000 Fixed Parts for Installation For details regarding Infilex ZM installation, refer to Installation manual of the Infilex series controllers Part number Description 83165861-001 Screw tab...

  • Page 5: Specifications

    AB-6579 Specifications Item Specification Rated voltage 100 V AC to 240 V AC, 50 Hz/60 Hz Allowable voltage range 85 V AC to 264 V AC, 50 Hz/60 Hz Power supply Power shutdown detection 80 V AC or less Power consumption 10 VA Leakage current 1 mA or less...
  • Page 6 AB-6579 Input/Output Terminal Arrangement ∼ 100-240 V AC CONF. RJ-45 Modular connector LC-bus LS-bus Figure 3. Input/output terminal arrangement Dimensions Figure 4. Dimensions (mm)

  • Page 7: Parts Identification

    AB-6579 Parts Identification LED for operating status Service switches S1 switch Power switch LED for power ON/OFF Battery holder DIN rail mounting hook Indication tag Figure 5. Parts identification Table 1. Indication and operation of operating status LED LED indication LED operation Data transmitting LC-bus TX LED: flashing...
  • Page 8 AB-6579 Connection of Data Setter for LonTalk Protocol ® Connect the CompactFlash memory type Data Setter (Model QY5111B) for LonTalk protocol to LC-bus port or to CONF. port of Infilex ZM with the Data Setter adaptor (Part No. DY5301S0000, with separate order required.). For details of the Data Setter adaptor, refer to its specification sheet.
  • Page 9 AB-6579 Mounting Dimensions DIN rail mounting Mount and fix Infilex ZM on DIN rail so that it does not fall from the DIN rail. Fasten the bilateral sides of Infilex ZM with two DIN rail mounting brackets (Part No. 83104567-001, separate order is required). (60) Duct DIN rail...
  • Page 10 AB-6579 Maintenance (Lithium Battery Replacement) Replace the lithium battery for backup (Part No. 83104934-001) for every 5 years. IMPORTANT: • Only authorized service personnel is allowed to replace the battery. • Do not touch the power supply unit when replacing the battery. •...

  • Page 11: Precautions For Use

    AB-6579 Precautions for Use • Do not mount the product under the conditions of high temperature and humidity. • Be sure not to drop the product. • Be sure to shut down the power (disconnect the wiring between the power supply and the product power terminals) for the wire replacement.
  • Page 12 AB-6579 Specifications are subject to change without notice. Building Systems Company http://www.azbil.com/ Rev. 4.0 Sep. 2015 AB-6579 H (W03) (J: AI-6579 Rev. 3.1) Printed in Japan.
