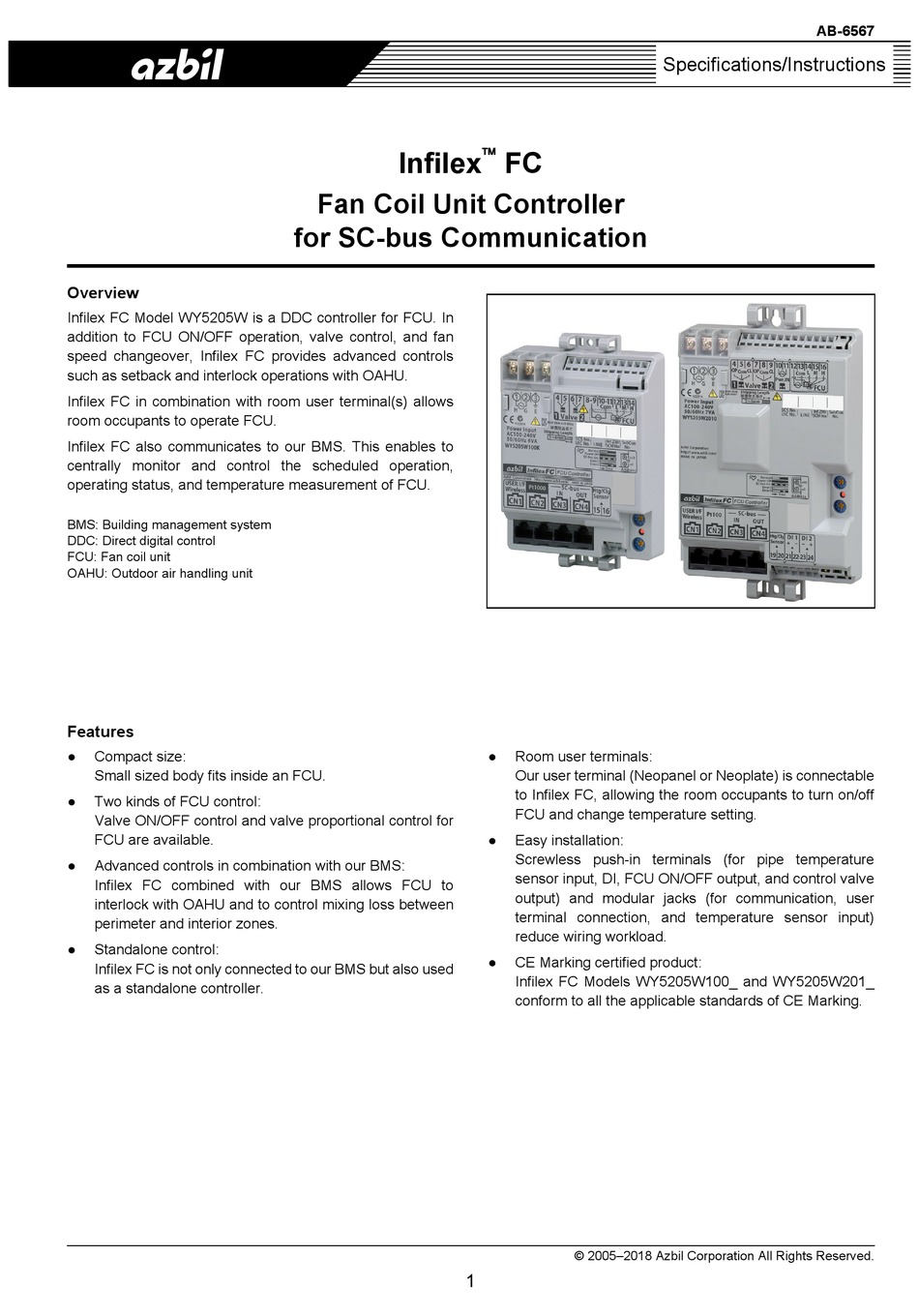

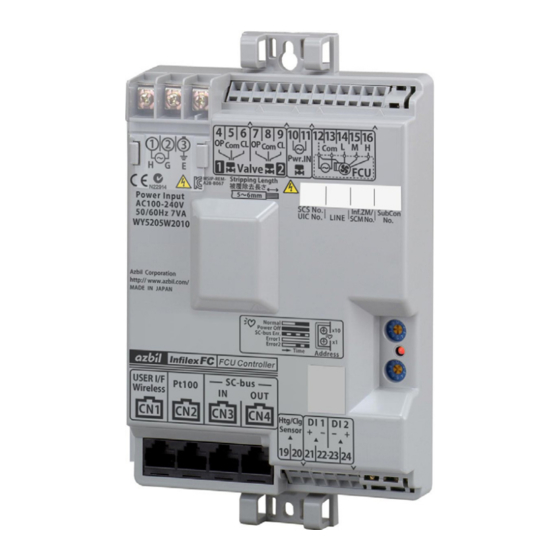

Infilex FC Model WY5205W is a DDC controller for FCU. In
addition to FCU ON/OFF operation, valve control, and fan
speed changeover, Infilex FC provides advanced controls
such as setback and interlock operations with OAHU.
Infilex FC in combination with room user terminal(s) allows
room occupants to operate FCU.
Infilex FC also communicates to our BMS. This enables to
centrally monitor and control the scheduled operation,
operating status, and temperature measurement of FCU.
BMS: Building management system
DDC: Direct digital control
FCU: Fan coil unit
OAHU: Outdoor air handling unit
Features
●
Compact size:
Small sized body fits inside an FCU.
●
Two kinds of FCU control:
Valve ON/OFF control and valve proportional control for
FCU are available.
●
Advanced controls in combination with our BMS:
Infilex FC combined with our BMS allows FCU to
interlock with OAHU and to control mixing loss between
perimeter and interior zones.
●
Standalone control:
Infilex FC is not only connected to our BMS but also used
as a standalone controller.
Infilex
Fan Coil Unit Controller
for SC-bus Communication
1
FC
●
Room user terminals:
Our user terminal (Neopanel or Neoplate) is connectable
to Infilex FC, allowing the room occupants to turn on/off
FCU and change temperature setting.
●
Easy installation:
Screwless push-in terminals (for pipe temperature
sensor input, DI, FCU ON/OFF output, and control valve
output) and modular jacks (for communication, user
terminal connection, and temperature sensor input)
reduce wiring workload.
●
CE Marking certified product:
Infilex FC Models WY5205W100_ and WY5205W201_
conform to all the applicable standards of CE Marking.
© 2005–2018 Azbil Corporation All Rights Reserved.
AB-6567
Specifications/Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Azbil Infilex FC Series
Summary of Contents for Azbil Infilex FC Series
- Page 1 CE Marking certified product: Infilex FC is not only connected to our BMS but also used Infilex FC Models WY5205W100_ and WY5205W201_ as a standalone controller. conform to all the applicable standards of CE Marking. © 2005–2018 Azbil Corporation All Rights Reserved.
-
Page 2: Safety Precautions
• Aeronautical/aerospace machines For system design, application design, instructions for use, or product applications, please contact Azbil Corporation. Azbil Corporation bears no responsibility for any result, or lack of result, deriving from the customer's use of the product. Warnings and Cautions ... - Page 3 AB-6567 CAUTION (2/2) To connect the wires to the screw terminals, use crimp terminal lugs with insulation. Failure to do so might cause fire or device failure due to short circuit. Firmly tighten the terminal screws. Insufficient tightening of the terminal screws might cause fire or overheating. For wiring, strip each wire insulation for the length specified in this manual.
-
Page 4: Model Numbers
AB-6567 Model Numbers Base model Control Temperature Power — Description number type input WY5205 Infilex FC for SC-bus communication 100 V AC - 240 V AC Valve ON/OFF control Valve proportional control Fixed No DI point Two DI points RTD (Pt100) RTD (Pt1000) Note: Base model number is available with the following suffix numbers:... -
Page 5: System Configurations
AB-6567 System Configurations Infilex FC for connection to our BMS For BMS and devices that are compatible to Infilex FC, ask our salesperson. BACnet Client PC NC-bus (Max. 25 units and 500 m, but extendable up to 1000 m with the repeater module.) ... -
Page 6: Basic Specifications
AB-6567 Specifications Basic specifications Item Specification Power Rated voltage 100 V AC to 240 V AC at 50 Hz/60 Hz Operating voltage 85 V AC to 264 V AC Power consumption Valve ON/OFF control type: 6 VA or less Valve proportional control type: 7 VA or less Environmental Operating Ambient temperature... -
Page 7: Wire Specifications
*2 LAN cable compliant with EIA/TIA-568 Category 3 or over (⌀0.5 mm x 4 pairs) is required. For *1 and *2, the connector cable (regular cable: Part No. DY7210, short cable: Part No. DY7220) are available at Azbil Corporation. *3 Use the short connector cable for two terminals (Part No. DY7221A). Other cables are not acceptable. - Page 8 AB-6567 Dimensions The following figures are images of Infilex FC Pt100 input type. Dimensions of the Infilex FC Pt1000 input type are the same as those of the Infilex FC Pt100 input type. <Valve ON/OFF control type> Figure 3. Dimensions (mm): Model WY5205W100X <Valve proportional control type>...
-
Page 9: Precautions For Installation
AB-6567 Installation CAUTION Install the product in a location that satisfies the operating conditions (temperature, humidity, power, vibration, shock, mounting direction, atmospheric condition, etc.) as listed in the specifications and use the product within the operating ranges as listed in the specifications. Failure to do so might cause fire or device failure. - Page 10 AB-6567 Mount on the ⌀9 mm (3/8 inches) threaded rod Screw-mount directly on the mounting surface 1) Open two holes for M4 screws on the mounting surface. To mount Infilex FC on a threaded rod (⌀9 mm), use two Leave 139 mm 1 mm interval for valve ON/OFF control cable ties.
- Page 11 AB-6567 Wiring WARNING Be sure to ground the product with ground resistance of less than 100 Ω. Improper grounding might cause electric shock or malfunction. Detach the terminal cover only when wiring the product. Before detaching the terminal cover, be sure to turn off the ...
- Page 12 AB-6567 Wiring diagram: Valve ON/OFF control type (Model WY5205W100X) IMPORTANT: Power for the valve actuators is supplied from FCU via Infilex FC. Since the actuator power supply cannot be separated from the FCU, the valves, unless the valve type is spring-return, will not be fully closed (in 0 % position) when the fan is turned off.
- Page 13 AB-6567 Wiring diagram: Valve proportional control type (Model WY5205W201X) IMPORTANT: If Infilex FC is continuously operated, in a 24-hour operation system for instance, be sure to fully close/open the valves (in 0 % / 100 % position) at least once a day for accurate operation. (The valves can be forcibly opened/closed by setting the parameter.) Ground resistance: 100 Ω...
- Page 14 AB-6567 Recommended cables For the cables and wires recommended for wiring Infilex FC, refer to the Wire specifications section. Power supply wiring Crimp M3.5 terminals on the power supply wires and connect them to the screw terminals of the product. IMIPORTANT: Do not apply 98 Ncm or larger torque for connecting the screw terminals.
- Page 15 To prevent short-circuit, put a tube* through the wire so that the terminal is covered. (See Fig. 16.) Separately order the tubes if necessary. Note: * Tubes are commercially available and also available at Azbil Corporation. (Part No. 83167219-001, 6 pieces/set) Connection of ⌀1.8 mm or smaller wires without tubes Connection of ⌀1.8mm or smaller wires with tubes ⌀1.8 mm or thinner wire...
- Page 16 AB-6567 3) Insert the aligned wires into a modular plug. Pin assignment of the modular plug Cable stopper Contacts LAN cable Insert. 10 mm 3 mm (For the recommended modular plug) Modular plug Pin numbers Figure 19. LAN cable insertion into a modular plug Pin assignment of the modular plug in Fig.
- Page 17 AB-6567 Wiring of Pt1000 temperature sensor to Infilex FC Pt1000 temperature sensor is also wired to Infilex FC with modular connection, and the short connector cable for two terminals Part No. DY7221A is required for wiring. Refer to the following for details. 1) Connect the modular plug of Part No.
-
Page 18: Optional Parts
Used when wires with ⌀1.8 mm or smaller diameter are connected to the push-in terminals of Infilex FC. Prepare the tubes supplied by Azbil Corporation shown in Fig. 27 or the tubes that meets the specifications shown in Fig. 28. -
Page 19: Optional Tools
AB-6567 ● Mounting bracket (large and small sizes): Optional tools Used to replace IFC with Infilex FC. Extra mounting ● Modular crimper: holes will not be necessary by attaching Infilex FC to the Used to crimp a modular plug on a LAN cable. mounting bracket. -
Page 20: Software Details
AB-6567 Software Details (1/3) Item Function Description Remarks Operation FCU ON/OFF Turns on/off the fan coil units (FCU) by operating - Each Infilex FC can individually turn (available for valve the BMS client PC, digital input (DI), or the user on/off the FCU. - Page 21 AB-6567 (2/3) Item Function Description Remarks Control Cooling/heating Receives the following items sent from the BMS One Infilex ZM controls up to eight groups (available for valve changeover* when cooling/heating changeover is required: for cooling/heating changeover. ON/OFF control and for Enable cooling, enable heating, enable cooling valve proportional and heating, fan only (disable cooling and...
- Page 22 AB-6567 (3/3) Item Function Description Remarks Digital inputs Alarm input Accepts the DI (digital input) 1 value to the alarm (available for valve point. proportional control The alarm point is NML (0) when the contact of DI type) 1 is open and is ALM (1) when the contact of DI 1 is closed.
-
Page 23: Led Indication
AB-6567 LED Indication After the power is applied to Infilex FC, check that the status indicator LED blinks in approx. 10 seconds. If it stays ON, Infilex FC is in an abnormal status. The LED is ON for several seconds immediately after the power is applied, but this does not indicate an error. - Page 24 Pollution degree 2 RoHSD: EN 50581 Infilex, PARAMATRIX, and SmartScreen are trademarks of Azbil Corporation in Japan or in other countries. BACnet is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). CompactFlash is a U.S. registered trademark of SanDisk Corporation.
