Azbil Infilex BC WY5610 Specifications & Instructions

General

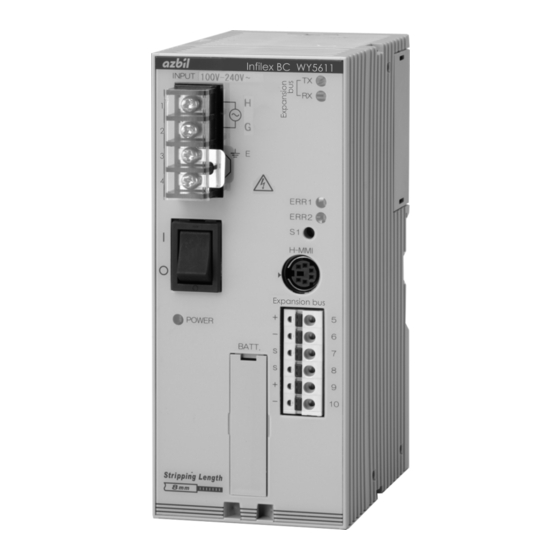

Infilex BC (Infilex: named for "Infinity" and "Flexible") Model
WY5610 is a multipurpose controller designed to control
building equipment, such as air handling unit (AHU).
Infilex BC enables to control the temperature and humidity,
as well as building equipment operations.
Infilex BC consists of the control unit, the I/O control unit, and
I/O modules. The number and types of the I/O modules can
be changed corresponding to the control or management to
fit various applications. Additionally, since the software to be
installed can be freely edited, an optimum application for
building equipment is configured in terms of both the
software and hardware.
Infilex BC communicates with our savic-net™ FX BMS
(Building Management System)
network. By sending the operation status to the BMS center
unit or by controlling the operations based on the commands
sent from the BMS center unit, the integrated control of the
entire building can be performed.
Features
● BACnet® controller:
Infilex BC is integrated in the BACnet/IP network.
● Compact design:
Small size body allows free installation in a desired
place.
● I/O module configurations:
Input and output types are selectable, and the number of
points to mount can be increased or decreased
corresponding to your application.
● Software configuration:
Software is editable to fit for the contents of your
application.
● User interface module (Operator Panel):
Operator Panel (panel mount type/integral type)
connected to Infilex BC I/O control unit allows you,
without changing the settings from the BMS center unit,
to change the Infilex BC settings.

Our controller Infilex series: Infilex is named for "Infinity" and "Flexible".
Infilex™ BC
Multipurpose Controller
I/O Control Unit
through BACnet®/IP
1
● Remote control with a user terminal:
Neopanel or Neoplate is connectable, so that a user in a
room (remote location) can turn ON and OFF the AHU
and change temperature setting.
● Cooperation with BMS:
Infilex BC integrated into savic-net FX BMS enables to
centrally monitor and control building equipment from the
BMS center unit (client PC).
● Autonomous distributed control:
Even if a trouble occurs in the BMS, the backup
operation is performed individually to distribute potential
risks caused by malfunction of the system.
● Easy wiring:
Screwless push-in terminals for the communication line
reduces wiring work load.
● CE Marking certified:
Infilex BC I/O control unit Model WY5611W0000
conforms to all the applicable standards of CE Marking
(Class A).
AB-7163
Specifications/Instructions
