Azbil INFILEX GC WY5311 Specifications & Instructions

General

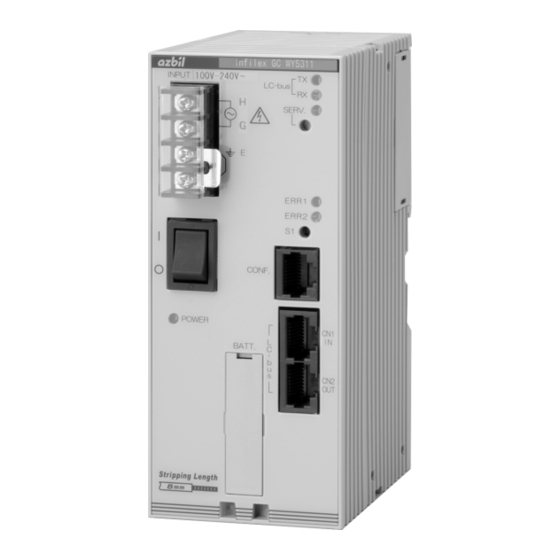

Infilex GC (Infilex: named for "Infinity" and "Flexible") Model
WY5311 is a multipurpose controller designed to control
building equipment, such as air handling unit (AHU). Infilex
GC enables to control the temperature and humidity, as well
as building equipment operation.
Infilex GC can be operated with a user terminal and with
Operator Panel. Besides, Infilex GC can communicate with
BMS (building management system) Azbil Corporation's
™
savic-net FX via LonTalk
operation status to the main control unit (monitoring
computer) and by controlling the operation based on the
commands sent from the main control unit, the integrated
control of the entire building can be executed.
Infilex GC consists of a basic unit and connectable I/O
modules (and a user interface module). The number and
types of the modules can be flexibly changed corresponding
to the control or management to fit in various applications.
Additionally, since the software to be installed can be freely
edited, an optimum application for building equipment can be
configured in terms of both the software and hardware.
Features
•
Compact design:
Small size body allows free installation in a desired
place.
•
Various input/output (I/O) configurations:
Input and output types can be selected, and the number
of points to be mounted can be increased or decreased
corresponding to the application.
•
Editable software configurations:
Optimal software for the contents of the application can
be configured.
•
User interface module (Operator Panel):
Operator Panel (panel mount type/integral type)
connected to Infilex GC allows you, without changing the
settings from the BMS center unit, to change the Infilex
GC settings.
•
Remote control with a user terminal:
™
Neopanel or Neoplate is connectable, so that a user at
a remote location can perform ON/OFF operation and
change temperature setting.
∗
Azbil Corporation's Infilex series controllers: Infilex is named for "Infinity" and "Flexible."
Infilex
Multipurpose Controller
Model WY5311
®
protocol. By sending the
™
GC
•
Autonomous distributed control:
Even if a trouble occurs in the BMS, the backup
operation is performed individually to distribute potential
risks caused by malfunction of the system.
•
Installation:
A quick-fit screwless (clamp) terminal block is used for
the communication terminal block of the I/O module,
ensuring the labor saving of the wiring work.
Additionally, either DIN rail mounting or screw mounting
can be selected.
®
•
L M certified product:
ON ARK
Infilex GC is L M
ON ARK
integrated in the L
ON
•
CE Marking certified product:
Infilex GC conforms to all the applicable standards of CE
Marking (Class A).
1
AB-6580
Specifications/Instructions
®
certified and thus interoperable
®
W system.
ORKS
