Page 2-4

Note: This guide does not replace the user manuals.

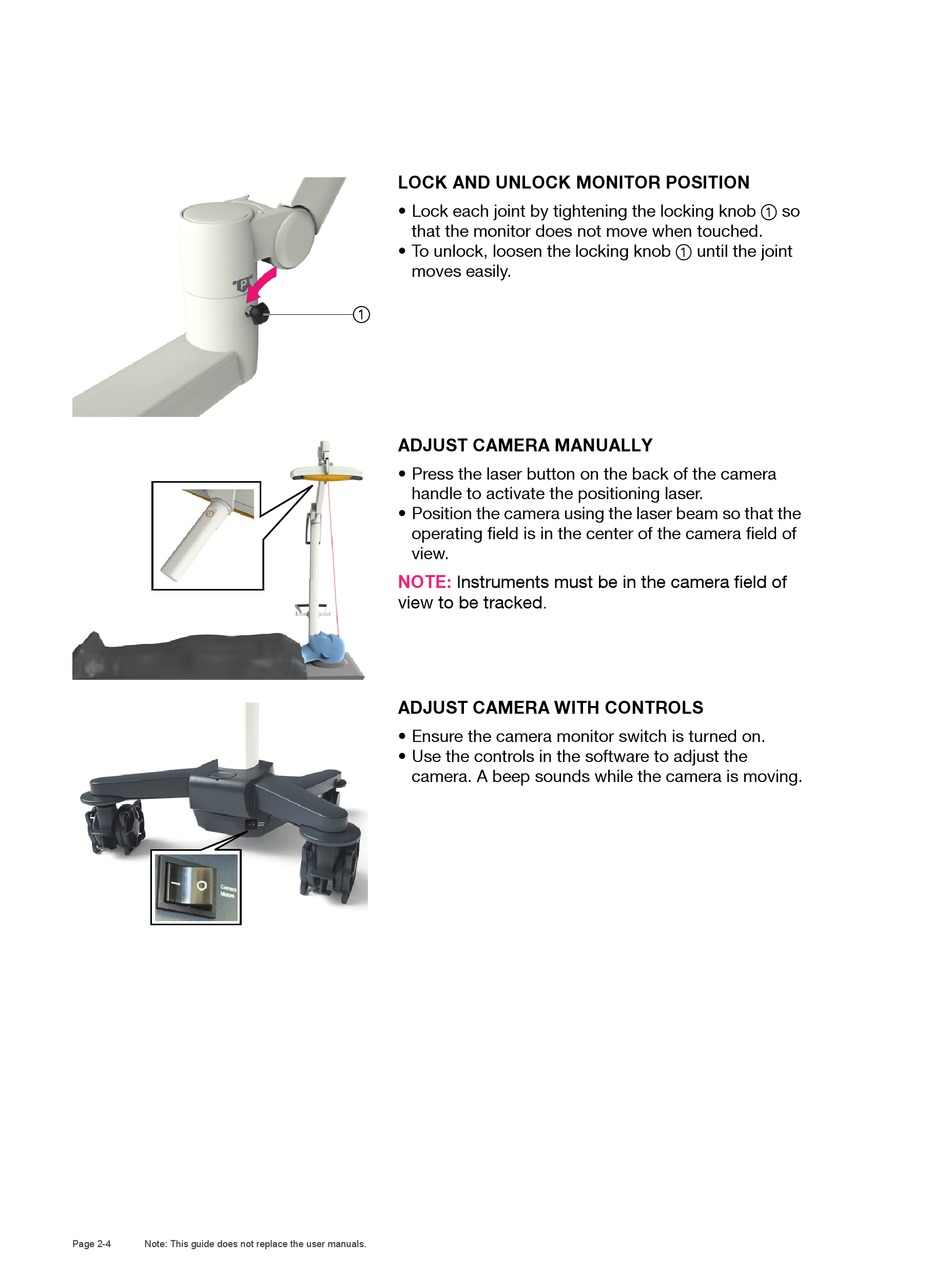

LOCK AND UNLOCK MONITOR POSITION

• Lock each joint by tightening the locking knob a so

that the monitor does not move when touched.

• To unlock, loosen the locking knob a until the joint

moves easily.

• Press the laser button on the back of the camera

handle to activate the positioning laser.

• Position the camera using the laser beam so that the

operating field is in the center of the camera field of

view.

NOTE:

Instruments must be in the camera field of

view to be tracked.

• Ensure the camera monitor switch is turned on.

• Use the controls in the software to adjust the

camera. A beep sounds while the camera is moving.
