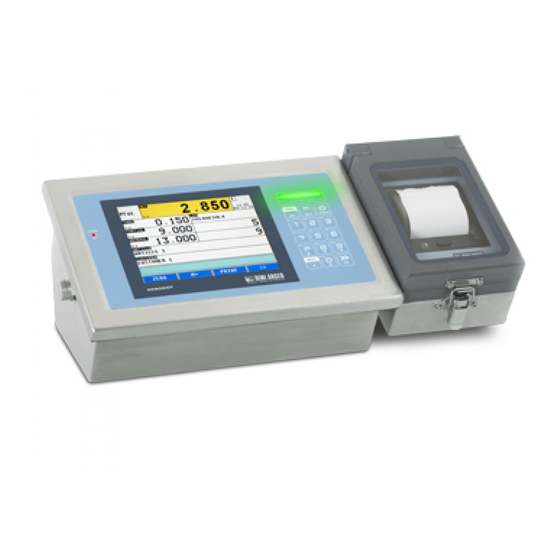

Touch screen indicator
Hide thumbs Also See for 3590EGT:

Advertisement

3590ET / 3590EGT
Touch screen indicator
CONNECTION DIAGRAMS
ENGLISH
www.diniargeo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3590EGT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dini Argeo 3590EGT

  • Page 1 3590ET / 3590EGT Touch screen indicator CONNECTION DIAGRAMS ENGLISH www.diniargeo.com...
  • Page 3: Table Of Contents

    RS232 / RS485 to Ethernet / WIFI conversion board USB support data saving board RADIO communication board PROFIBUS communication board BLUETOOTH communication board RADIO REMOTE CONTROL board Circuit breaker against electrostatic loads Analog output Traffic light RS485 RS485 opto-isolated board Display board 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 4: Introduction

    Introduction Dear Customer, Thank you for purchasing a DINI ARGEO product. This manual contains all instructions for proper installation of the weight indicator with touch screen series 3590. We thank you for purchasing this scale and we kindly ask you to take note of certain aspects of this manual: This booklet provides useful information for proper operation and maintenance of the scale referred to herein.
  • Page 5: Electrical Warnings

    DC power supply cables with >60V and <400V • AC power supply cables with >25V and <400 Category III • Power supply cables with >400V • Telephone cable Category IV • Any cables subject to lightning hazards 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 6: Recommended Distance Between Cables

    The maximum length for voltage analog output is: • 50 metres with a 2 x 0.25 mm cable • 75 metres with a 2 x 0.5 mm cable • 150 metres with a 2 x 1 mm cable 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 7: Earthing System

    You must open SENSE inside the indicator in order to compensate for the shift due to an increase in temperature. • You must check and, if necessary, remove the connection between electrical installation earth and neutral. 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 8: Example Of Weighbridge Earthing

    Load cell Weighbridge Earth cables Ø 8-sec 50 mm Ø 11,3 - sec. 100 mm Copper perforated plate placed on the coast wall Weighbridge Earth pole placed under or next to the weighbridge Load cell bypass U-bolt 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 9: Example Of Silos Earthing

    Electrical warnings Example of silos earthing Load cell protection earth bypass Load cell 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 10: Motherboard

    5,3 ~ 8 Vdc 400 mA max. ORIGINAL BATTERY ONLY VOLTAGE OUT: 12Vdc 400 mA max. Only if power supply is connected. INPUT AND OUTPUT CONNECTION OUTPUT INPUT 11 12 13 14 15 16 17 18 19 24Vdc 24Vdc 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 11 INTEGRATED CIRCUITS INSTALLATION 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 12: I/O Expansion Board

    Min. 10 KΩ Max. 350 Ω Max. 150 mA Max. 20 mA Max. 10 Ω Connection: DISPLAY EXPANSION INPUT AND OUTPUT CONNECTION OUTPUT INPUT 31 32 33 34 35 44 45 46 47 48 49 50 24Vdc 24Vdc 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 13: Optional Internal Board For Rapid Connection Of Multiple Scales

    10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 RJ45 RS232 connector board to TX to motherboard to RX The AMP connector enables you to rapidly connect and supply the CPU board of the weighing indicator. 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 14: Rs232 / Rs485 To Ethernet / Wifi Conversion Board

    IP address: 192.168.16.205 ANTENNA • Subnet Mask: 255.255.255.0 • Baud rate and bit according to the type of combination of dip switches Version for installation on a DIN bar RS232 SETHDIN POWER RS485 ETHERNET +Vdc GND A(+) B(-) 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 15 Set the serial ports to 9600 n-8-1. Enable the option to configure the ethernet/wifi board via browser Set the serial ports to 9600 n-8-1 Attention: every time you change the operating mode, the board resets the standard default settings. 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 16: Usb Support Data Saving Board

    ON = CTS managed • OFF = CTS not managed LED description: LED: ON = Print in progress Flashing = USB not detected GREEN LED: Slow flashing = Ready Quick flashing = USB or printer not detected 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 17: Radio Communication Board

    Version for installation on a DIN bar It is possible to connect the indicator to RS232 or RS485 PROFIBUS B-LINE 5 4 3 2 1 A-LINE +5VBUS PROFI232 POWER RS232 RS485 +Vdc GND TX RX GND B(-) A(+) SHD EARTH 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 18: Bluetooth Communication Board

    CPU board with a tulip connector situated under the board. ANTENNA Circuit breaker against electrostatic loads Installation integrated inside the scale. ANALOG CELL DIGITAL CELL SHIELD INDICATOR SIDE CELL SIDE 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 19: Analog Output

    39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 20: Traffic Light

    Traffic light Integrated and indicator 5.5V to 7.5V (vaux) to GND BUZZER to OUT1/OUT3 YELLOW LED to OUT1 to motherboard GREEN LED to OUT2 RED LED to OUT3 BUZZER ZONE1 ZONE2 ZONE3 Chip 485 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 21: Rs485

    RS485 opto-isolated board Display board connector Buzzer Indicator’s keyboard connectors Power expansion board PC keyboard/ barcode reader connector USB port Power display board SD card: upload of images Port for USB inside the indicator connector board 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 22 The individual in charge of the scale operation must ensure that all safety regulations in force in the country of use are applied, ensuring that the appliance is used in accordance with the purpose it is intended for and to avoid any danger for the user. The Manufacturer declines any liability arising from any weighing operation errors. 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 23 Notes 3590ET / 3590EGT TECH_MAN_SCHEMES_3590_ENG_vX_17.06...
  • Page 25 Authorised service centre stamp HEAD OFFICE Via della Fisica, 20 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 843418 - Fax +39 0536 843521 info@diniargeo.com CUSTOMER SERVICE Via dell’Elettronica, 15 41042 Spezzano di Fiorano, Modena - Italy Ph. +39 0536 921784 Fax +39 0536 926654 service@diniargeo.com...
