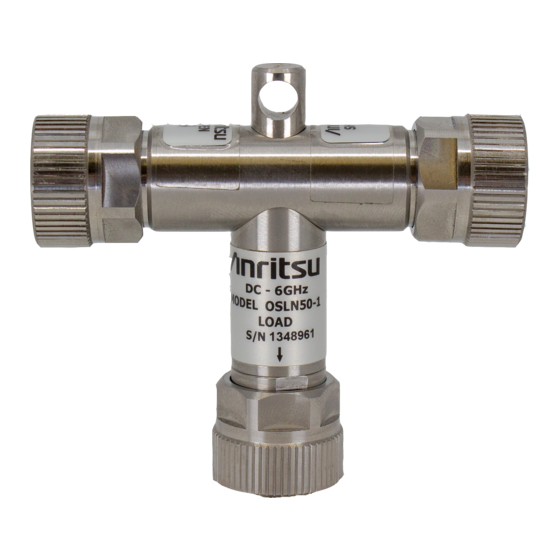

- Page 1 Anritsu OSLN50-1 Specs Provided by www.AAATesters.com Calibration Guide Model OSL Series Precision Open/Short/Load Calibration Tees Anritsu Company Part Number: 10100-00055 490 Jarvis Drive Revision: C Morgan Hill, CA 95037-2809 Published: November 2012 Copyright 2012 Anritsu Company...
- Page 3 Anritsu Company. UPDATES Updates, if any, can be downloaded from the Documents area of the Anritsu web site at: http://www.anritsu.com For the latest service and sales information in your area, please visit:...
- Page 4 Before you export this product or any of its manuals, please contact Anritsu Company to confirm whether or not these items are export-controlled. When disposing of export-controlled items, the products and manuals need to be broken or shredded to such a degree that they cannot be unlawfully used for military purposes.
- Page 5 Safety Symbols To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Company uses the following symbols to indicate safety-related information. For your own safety, please read the information carefully before operating the equipment. Symbols Used in Manuals...
- Page 6 Some or all of the following five symbols may or may not be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
-
Page 7: Table Of Contents
OSL Load Return Loss Verification ... . 2-9 OSL Open/Short 180° Phase Shift Verification . . 2-10 Load DC Resistance Verification ....2-11 Model OSL Series CG PN: 10100-00055 Rev. C Contents-1... - Page 8 Table of Contents (Continued) Contents-2 PN: 10100-00055 Rev. C Model OSL Series CG...
-
Page 9: Chapter 1-General Information
Chapter 1 — General Information Introduction This guide provides performance verification procedures for Anritsu Model OSL Series Open/Short/Load Calibration Tees. Description The model OSL Series family consists of the following models: Table 1-1. OSL Series Precision Open/Short/Load Calibration Tees Anritsu Part Number... -
Page 10: Recommended Test Equipment
Agilent Model 34401A Multi-meter Connector Type: N Impedance: 50 Ω Calibration Kit Anritsu Model 3652A-1 Termination: Sliding Termination Adapter Connector: K(f) to K(f) Anritsu Model 33KFKF50 Adapter Connector: K(m) to K(f) Anritsu Model 33KKF50 PN: 10100-00055 Rev. C Model OSL Series CG... -
Page 11: Chapter 2-Osl Performance Verification
Chapter 2 — OSL Performance Verification Introduction This chapter provides tests to verify the performance of the OSL Series Open/Short/Load Calibration Tees. Two separate verification procedures are provided, for using either a VectorStar MS4642A, a Model 37247x, or a Model 37347x VNA: •... -
Page 12: Specifications
2-2 Required Equipment OSL Performance Verification Specifications Refer to Table 2-1 for the OSL series specifications. Table 2-1. OSL Series Specifications Anritsu Part Number Specification OSLK50LF OSLN50LF OSLN50-1 OSLN50 OSLKF50LF OSLNF50LF OSLNF50-1 OSLNF50 Frequency Range DC to 20 GHz DC to 4 GHz... -
Page 13: Verification Using Ms4642A
1. Allow the VNA to warm up for a minimum of 1 hour. 2. Install an appropriate adapter to the VNA Port 1 so the test port has a connector that can mate to the OSL Series Open/Short/Load Calibration Tee. - Page 14 Connect the sliding load and then select Sliding Load. c. Set the sliding load to the number 1 position before selecting the Position 1 box. Repeat for positions number 2 through number 6. 5. Select Back | Back | Done PN: 10100-00055 Rev. C Model OSL Series CG...
-
Page 15: Osl Load Return Loss Verification
For OSLK, OSLKF, OSLN50 and OSLNF50, the return loss is specified for three frequency bands. Manually drag Marker 1 with the mouse to read out the worst case return loss in each band. Model OSL Series CG PN: 10100-00055 Rev. C... -
Page 16: Osl Open/Short 180° Phase Shift Verification
• OSLN50LF and OSLNF50LF: Upper 174°, lower 186°; for • OSLN50LF-1 and OSLNF50LF-1: Upper 170°, lower 190° • OSLN50 and OSLNF50: Upper 160°, lower 200° • OSLK50 and OSLKF50: Upper 168°, lower 192° PN: 10100-00055 Rev. C Model OSL Series CG... - Page 17 4. Remove the SHORT and connect the OPEN of the same DUT Calibration Tee to the adapter on VNA Port 1. 5. The displayed trace must be within the limit lines to pass the specification. The actual value can be verified using markers. Model OSL Series CG PN: 10100-00055 Rev. C...
-
Page 18: Verification Using 37247X/ 37347X
1. Allow the VNA to warm up for a minimum of 1 hour. 2. Install an appropriate adapter to the VNA Port 1 so the test port has a connector that can mate to the OSL Series Open/Short/Load Calibration Tee. For example, install a 34NFKF50 adapter to VNA Port 1 when testing an N-male Open/Short/Load Calibration Tee. -
Page 19: Osl Load Return Loss Verification
For OSLK50, OSLKF50, OSLN50, and OSLNF50, the return loss is specified for three frequency bands. The rotary knob should be used to move the Marker 1 to read out the worst case return loss in each band. Model OSL Series CG PN: 10100-00055 Rev. C... -
Page 20: Osl Open/Short 180° Phase Shift Verification
Calibration Tee to the adapter on VNA Port 1. 5. The displayed trace must be within the limit lines to pass the specification. The actual value can be verified using markers. 2-10 PN: 10100-00055 Rev. C Model OSL Series CG... -
Page 21: Load Dc Resistance Verification
Use an Ohmmeter to measure the DC resistance between the outer conductor and center conductor of the Load and verify that it is within specification (refer to Table 2-1, “OSL Series Specifications). Model OSL Series CG PN: 10100-00055 Rev. C... - Page 22 2-6 Load DC Resistance Verification OSL Performance Verification 2-12 PN: 10100-00055 Rev. C Model OSL Series CG...
- Page 24 Anritsu Company Anritsu prints on recycled paper with vegetable soybean oil ink. 490 Jarvis Drive Morgan Hill, CA 95037-2809 http://www.anritsu.com...
