UC-CX100-T
Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms

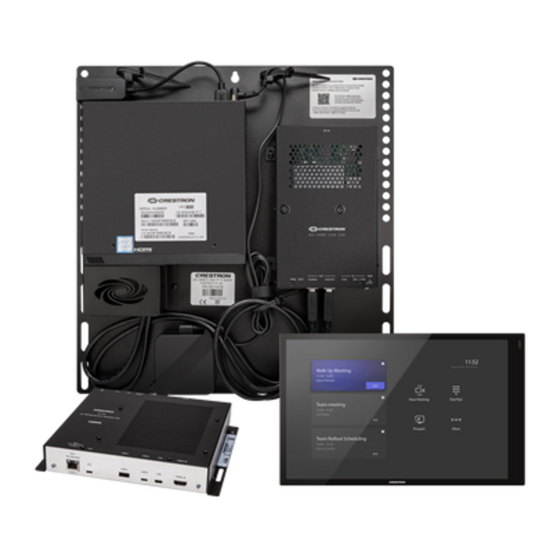

The UC-CX100-T Crestron Flex advanced integrator kit provides
customizable video conference solution for use with Microsoft Teams®
Rooms software. It supports single or dual video displays and features a
UC presentation transmitter, a tabletop touch screen and a UC bracket
assembly.
The firmware update for all connected peripherals is managed by the
UC Engine and Windows Update.
Minimum Requirements:
A certified USB Camera (not included)
l
A certified, AEC-enabled USB speakerphone or DSP device (not
l
included)
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned or Skype® for Business
l
account (not included)
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Tabletop Touch Screen Device
1
10.1 in. Tabletop Touch Screen (6511748)
1
Grommet, Cable, Closed (2055455)
1
Grommet, Cable, Open (2055456)
1
Cover, Cable compartment (2055457)
UC Presentation Transmitter
1
Presentation transmitter (6510936)
1
Power pack (2056363) with cord (2001134)
1
Bracket, power supply (2056257)
1
Cable, USB to USB, 6.56 ft (2 m) (2056116)
1
Cable, HDMI®, 6.56 ft (2 m) (2056117)
1
Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8
Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1
UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-T-ASSY,
6512691)
2
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1
Key, Anchor (4529654)
1
Power pack (2045870)
2
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4
Tie Wrap (2047935)
Additional Items
2
Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1
Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-CX100-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron UC-CX100-T

  • Page 1 Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms The UC-CX100-T Crestron Flex advanced integrator kit provides customizable video conference solution for use with Microsoft Teams® UC Presentation Transmitter Rooms software. It supports single or dual video displays and features a...
  • Page 2: Mount Devices

    Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms Mount Devices Mount the UC Bracket Assembly Mount the UC Bracket Assembly to VESA® compliant display devices, a wall, or other building structure. Anchors and screws are supplied for installation on walls 3/8 in.
  • Page 3: System Overview

    Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms Connect System Overview When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected connection method. Refer to Make Connections for detailed connection instructions.
  • Page 4: Make Connections

    Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms Make Connections 1. Make UC Engine connections as shown in the following illustrations. The UC Presentation Transmitter can communicate with the UC Engine over a direct connection or a network connection. Select one of the connection types as described below.
  • Page 5 Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms Make a network connection if the system is to be managed by the XiO Cloud® service. NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.
  • Page 6 Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms 2. Connect the power supply, USB audio (accessory), and a camera (not included) to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supply to an AC power outlet.
  • Page 7 Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms 3. Connect power and the content ingest device (HD-CONV-USB-260) to the top of the UC Presentation Transmitter. Connect the UC Engine or LAN to make a direct or network connection as described in step 1.
  • Page 8 Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms 4. Connect the touch screen to the bottom of the UC Presentation Transmitter.
  • Page 9 UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms 5. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a connection type based on the available ports on the user's laptop.
  • Page 10: Apply Power

    Quick Start UC-CX100-T Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms 2. Enter the following information in the appropriate fields: Teams Video PC Address: Enter the IP address or hostname of the UC Engine. Configure NOTE: The hostname is printed on a label affixed to the UC Engine (mounted on the UC bracket assembly).
  • Page 11 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
