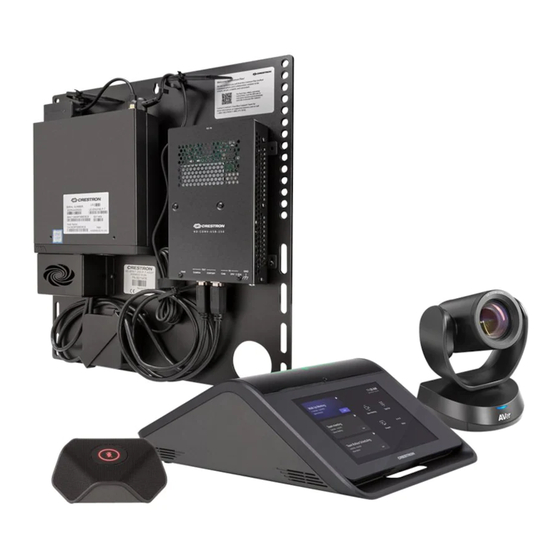

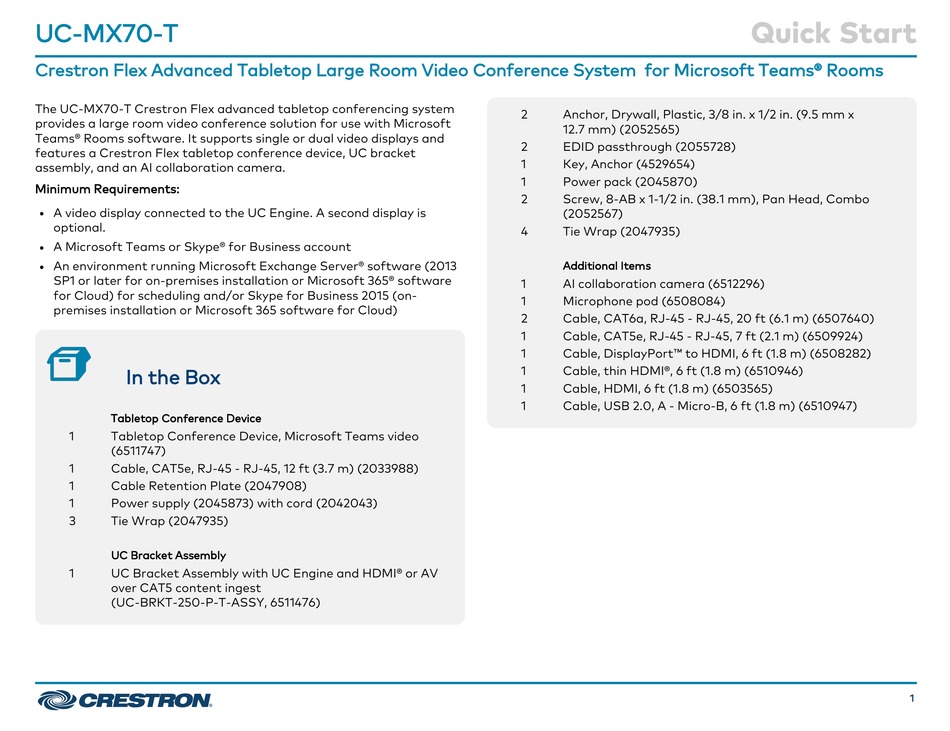

UC-MX70-T
Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms
The UC-MX70-T Crestron Flex advanced tabletop conferencing system
provides a large room video conference solution for use with Microsoft
Teams® Rooms software. It supports single or dual video displays and
features a Crestron Flex tabletop conference device, UC bracket
assembly, and an AI collaboration camera.
Minimum Requirements:
A video display connected to the UC Engine. A second display is
l
optional.
A Microsoft Teams or Skype® for Business account
l
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud)
In the Box
Tabletop Conference Device
1
Tabletop Conference Device, Microsoft Teams video
(6511747)
1
Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)
1
Cable Retention Plate (2047908)
1
Power supply (2045873) with cord (2042043)
3
Tie Wrap (2047935)
UC Bracket Assembly
1
UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest
(UC-BRKT-250-P-T-ASSY, 6511476)
2
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
2
EDID passthrough (2055728)
1
Key, Anchor (4529654)
1
Power pack (2045870)
2
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4
Tie Wrap (2047935)
Additional Items
1
AI collaboration camera (6512296)
1
Microphone pod (6508084)
2
Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
1
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1
Cable, thin HDMI®, 6 ft (1.8 m) (6510946)
1
Cable, HDMI, 6 ft (1.8 m) (6503565)
1
Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-MX70-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron UC-MX70-T

  • Page 1 Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms The UC-MX70-T Crestron Flex advanced tabletop conferencing system Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x provides a large room video conference solution for use with Microsoft 12.7 mm) (2052565)
  • Page 2: Mount Devices

    Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms Mount Devices Mount the UC Bracket Assembly Mount the UC Bracket Assembly to VESA® compliant display devices, a wall, or other building structure. Anchors and screws are supplied for installation on walls 3/8 in.
  • Page 3: System Overview

    Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms Connect System Overview When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.
  • Page 4: Make Connections

    Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms Make Connections 1. Make UC Engine connections as shown in the following illustrations. The conference device can communicate with the UC Engine over a direct connection or a network connection.
  • Page 5 Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms Make a network connection if the system is to be managed by the XiO Cloud® service. NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.
  • Page 6 Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms 2. Make a network or direct connection on the bottom of the conference device as described in step 1. Make the remaining content ingest, laptop,...
  • Page 7 Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms 3. Connect the power supply and camera to the bottom of the content ingest device (HD-CONV-USB-250). Connect the power supplies to an AC power outlet.
  • Page 8: Apply Power

    Quick Start UC-MX70-T Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms 3. Enter the following information in the appropriate fields: Teams Video PC Address: Enter the IP address or hostname of the UC Engine. Configure NOTE: The hostname is printed on a label affixed to the UC Engine.
