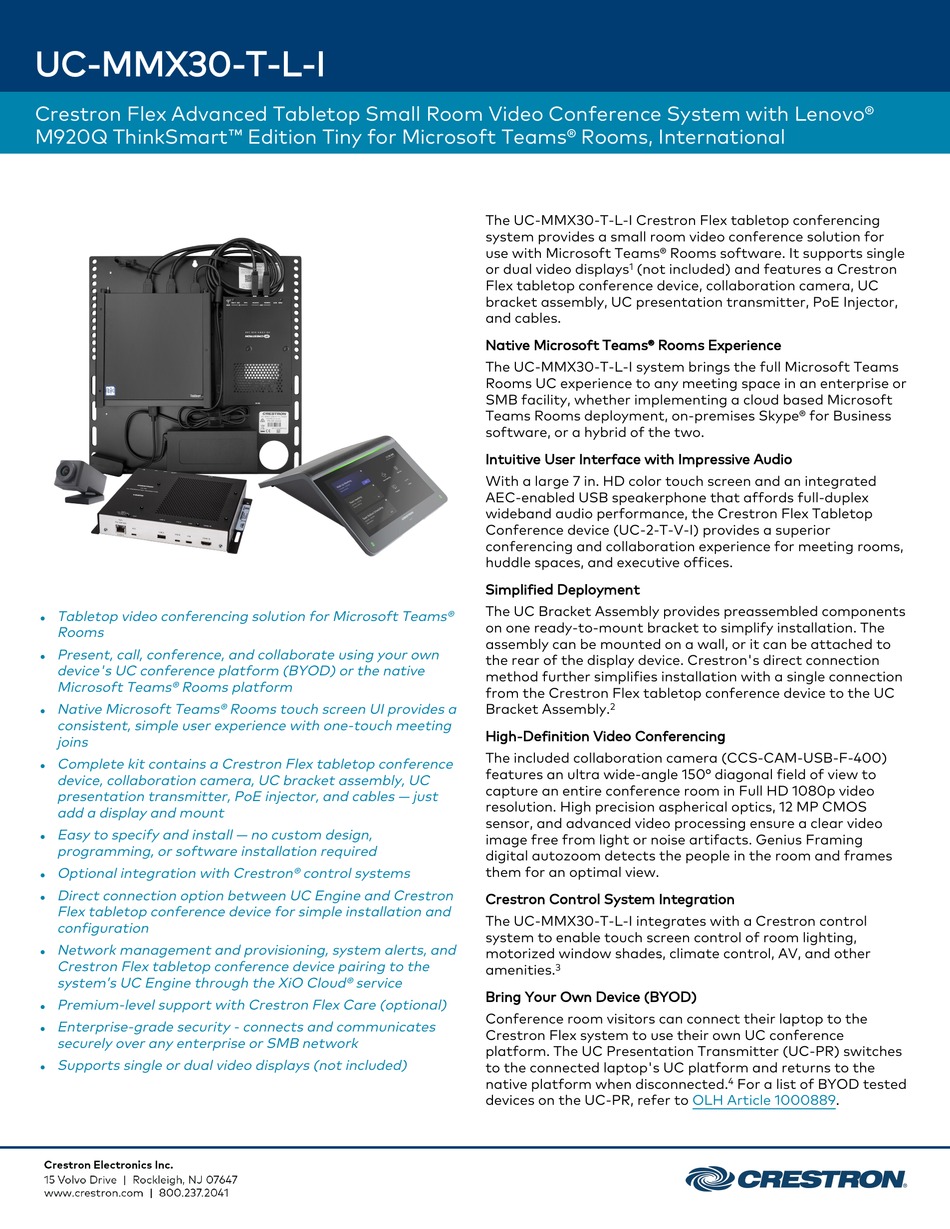

Crestron UC-MMX30-T-L-I Quick Start Manual

UC-MMX30-T-L-I
Crestron Flex Advanced Tabletop Small Room Video Conference System with Lenovo®
M920Q ThinkSmart™ Edition Tiny for Microsoft Teams® Rooms, International
Tabletop video conferencing solution for Microsoft Teams®
l
Rooms
Present, call, conference, and collaborate using your own
l
device's UC conference platform (BYOD) or the native
Microsoft Teams® Rooms platform
Native Microsoft Teams® Rooms touch screen UI provides a
l
consistent, simple user experience with one-touch meeting
joins
Complete kit contains a Crestron Flex tabletop conference
l
device, collaboration camera, UC bracket assembly, UC
presentation transmitter, PoE injector, and cables — just
add a display and mount
Easy to specify and install — no custom design,
l
programming, or software installation required
Optional integration with Crestron® control systems
l
Direct connection option between UC Engine and Crestron
l
Flex tabletop conference device for simple installation and
configuration
Network management and provisioning, system alerts, and
l
Crestron Flex tabletop conference device pairing to the
system's UC Engine through the XiO Cloud® service
Premium-level support with Crestron Flex Care (optional)
l
Enterprise-grade security - connects and communicates
l
securely over any enterprise or SMB network
Supports single or dual video displays (not included)
l

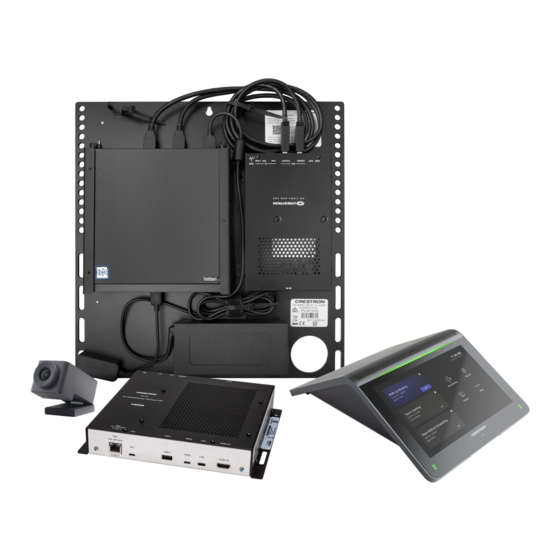

The UC-MMX30-T-L-I Crestron Flex tabletop conferencing
system provides a small room video conference solution for
use with Microsoft Teams® Rooms software. It supports single
1
or dual video displays (not included) and features a Crestron
Flex tabletop conference device, collaboration camera, UC
bracket assembly, UC presentation transmitter, PoE Injector,
and cables.
Native Microsoft Teams® Rooms Experience
The UC-MMX30-T-L-I system brings the full Microsoft Teams
Rooms UC experience to any meeting space in an enterprise or
SMB facility, whether implementing a cloud based Microsoft
Teams Rooms deployment, on-premises Skype® for Business
software, or a hybrid of the two.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated
AEC-enabled USB speakerphone that affords full-duplex
wideband audio performance, the Crestron Flex Tabletop
Conference device (UC-2-T-V-I) provides a superior
conferencing and collaboration experience for meeting rooms,
huddle spaces, and executive offices.
Simplified Deployment
The UC Bracket Assembly provides preassembled components
on one ready-to-mount bracket to simplify installation. The
assembly can be mounted on a wall, or it can be attached to
the rear of the display device. Crestron's direct connection
method further simplifies installation with a single connection
from the Crestron Flex tabletop conference device to the UC
2
Bracket Assembly.
High-Definition Video Conferencing
The included collaboration camera (CCS-CAM-USB-F-400)
features an ultra wide-angle 150° diagonal field of view to
capture an entire conference room in Full HD 1080p video
resolution. High precision aspherical optics, 12 MP CMOS
sensor, and advanced video processing ensure a clear video
image free from light or noise artifacts. Genius Framing
digital autozoom detects the people in the room and frames
them for an optimal view.
Crestron Control System Integration
The UC-MMX30-T-L-I integrates with a Crestron control
system to enable touch screen control of room lighting,
motorized window shades, climate control, AV, and other
3
amenities.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the
Crestron Flex system to use their own UC conference
platform. The UC Presentation Transmitter (UC-PR) switches
to the connected laptop's UC platform and returns to the
native platform when disconnected.
devices on the UC-PR, refer to
4
For a list of BYOD tested
OLH Article 1000889.
