- Page 1 Crestron Electronics, Inc. 15 Volve Drive Rockleigh, NJ 07647. USA 800.237.2041 201.767.3400 crestron.com In all EU member states, operation of 5150 - 5350 MHz is restricted to indoor use only. For Certification, Warranty and RMA information, please visit crestron.com...

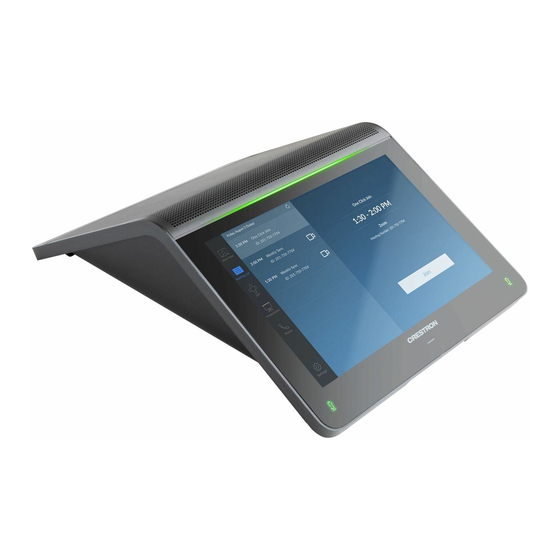

- Page 2 M201928001 Tabletop Meeting Device Quick Start Guide...
- Page 3 UC-2 Quick Start Hardware Hookup Make connections as shown in the following diagram. Power over Ethernet Laptop (PoE) If using the included power supply to provide PoE to the UC-2, connect the supply as shown below. DATA Power supply UC-2 LAN port Connect a laptop computer with the included USB cable to the USB port and use the laptop’s UC software for a conference call.
- Page 4 1. Use your Microsoft Teams™ software credentials to log into the unit. Use Your Laptop’s UC Software The UC-2 can also be used as an audio peripheral for your laptop computer’s UC software to make a call. 1. Connect the USB cable to the computer.
- Page 5 UC-2 Specifications Display: Touch Screen: 7" capacitive touch screen (5 points of simultaneous contact) LCD: 1280×800 resolution Audio: Speaker: 4 ohm, 7 W Speaker Microphone: Four Digital I2S MEMS sensor, Sensitivity -26dB, SNR 64dBA Processor: Type: Dual-core Cortex-A72 and Quad-core Cortex-A53 Basic Frequency: 1.8 GHz...
- Page 6 Ports: Ethernet: (1) RJ-45, 100/1000 Mbps Base-T Ethernet port with LED status indicators USB: (1) Micro USB port Security: (1) Kensigton™ security port Environment: Operating Temperature: 32° to 104° F (0° to 40° C) Operating Humidity: 10% to 90% (non-condensing) Dimensions: Height: 3.02 in.
- Page 7 Crestron Flex Tabletop Conference System ISEDC Caution: This device complies with Innovation, NOTE: This equipment has been tested and found Getting Started Science, and Economic Development Canada licence-exempt to comply with the limits for a Class B digital device, RSS standard(s). Operation is subject to the following pursuant to part 15 of the FCC Rules.
- Page 8 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. ©2020 Crestron Electronics, Inc. Crestron Electronics, Inc.
