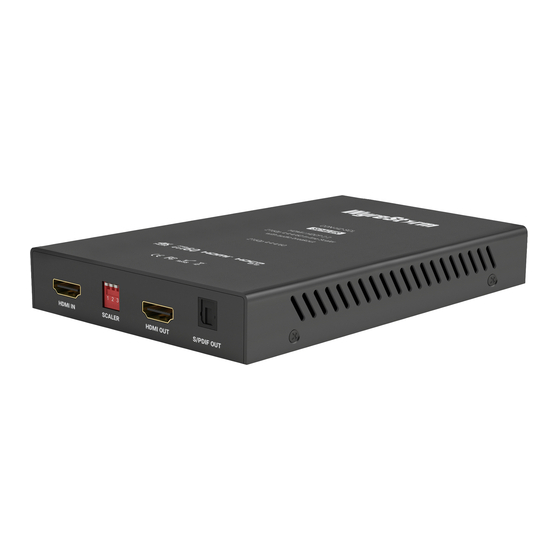

2160p 4:4:4/60 In-Line HDMI Scaler with Audio Breakout
CON-H2-SCL
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Advanced configuration of this product requires the use of the use of the
WyreStorm Management Suite
the latest version from the product page before continuing with the
installation.
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
guidelines before creating or choosing premade cables.
Basic Wiring Diagram
MX-0404-H2A
Matrix
HDMI from
Blu-ray Player
CON-H2-SCL
Copyright © 2019 WyreStorm Technologies |
CON-H2-SCL Quickstart Guide | 190617
v1.6 or higher configuration tool. Download
section for important wiring
HDMI to display
source
Front
HDMI to display
wyrestorm.com
In the Box
1x CON-H2-SCL
1x DC 12V 2A Power Supply (US/UK/EU/AU)
3x 3-Pin Terminal Block
2x Mounting Brackets
1x Quickstart Guide (This Document)
AC Mains
Audio Video
Receiver
1 of 4
Quickstart Guide
HDMI to display
CON-H2-SCL
Rear
Control System
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
KEY
Passive HDMI
Digital Audio
Control
support@wyrestorm.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm CON-H2-SCL
Summary of Contents for Wyrestorm CON-H2-SCL
- Page 1 2160p 4:4:4/60 In-Line HDMI Scaler with Audio Breakout Quickstart Guide CON-H2-SCL WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x CON-H2-SCL •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 RS-232 Guidelines for pinout. 2. Open the WyreStorm Management Suite and select the CON-H2-xxxx Configuration Tool from the menu. 3. Under RS-232 Port Configuration select the COM port for the PC and set the baud rate to 57600. 4. Select the Connect button to connect the PC to the converter.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
