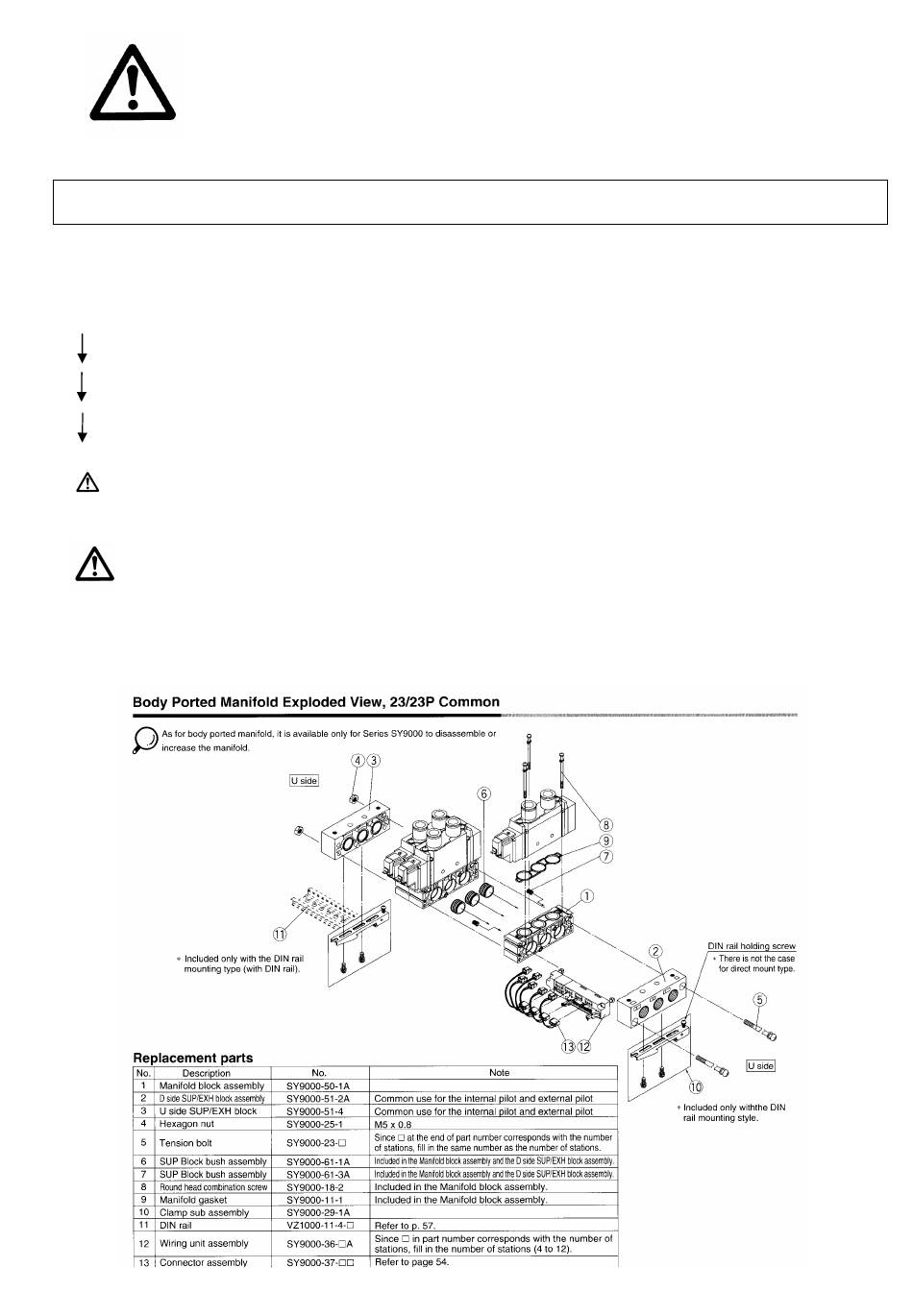

How to increase manifold bases (Series SY9000 only)
When a type 23 manifold base is added, tension bolts as well as manifold block assembly will be required. Order the tension bolt suitable
for the stations after a station was increased (decreased), since the length of a tension by the number of stations. (For changing the
number of stations for a type 23P manifold, wiring unit for the stations and lead assembly will be required.)
□
Loosen the tension bolts ⑤connecting the manifold base, and out both of 2 tension bolts.
1
(When equipped with a DIN rail, loosen one DIN rail holding screw on either U side or D side.)
□
2 Separate the blocks at the location where station expansion is desired.
□
3 Mount additional manifold block assembly.
□
4
Press block-to-block so than there's no gap. After connection, insert a tension bolt for desired stations and then tighten it.
Caution
(Tightening torque: 2.9 N.m)
(When equipped with a DIN rail, be sure to tighten the DIN rail holding screws after tightening the tension bolts. Tightening torque:
1.4N.m)
Caution
1. Be sure to shut off the power and air supplies before disassembly. Furthermore, since air may remain inside the actuator, piping
and manifold, confirm than the air is completely exhausted before performing any work.
2. When disassembly and assembly are performed, air leakage may result if connections between blocks and tightening of the end
block's holding screw, is inadequate.
3. By adding wiring unit assembly to type 23 manifold, it can be changed to type 23P manifold, too.
５０００・ ・ ・ ・ ７０００ ５０００ ５０００ ７０００ Ｓｅｒｉｅｓ ７０００ ７０００
-29-
Ｓｅｒｉｅｓ Ｓｅｒｉｅｓ Ｓｅｒｉｅｓ
Manifold case can be added at any location.
