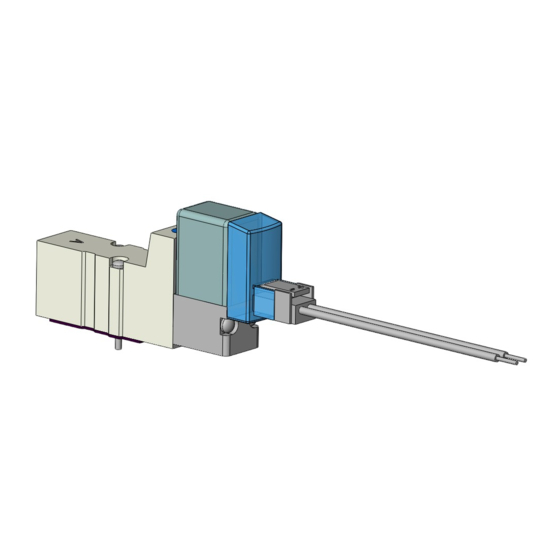

- Page 1 Doc. No.SYJ300-OMO0002-A Air Operated Valve PRODUCT NAME SYJA300 / SYJ3000 Series MODEL/ Series...
-
Page 2: Table Of Contents
Contents Safety Instructions ---------------------------------------------------------------------------- 2,3 Precautions on Design ---------------------------------------------------------------------- 4 Selection ---------------------------------------------------------------------------------------- 4 Mounting ---------------------------------------------------------------------------------------- 4 Piping -------------------------------------------------------------------------------------------- 5 Lubrication -------------------------------------------------------------------------------------- 5 Air Supply --------------------------------------------------------------------------------------- 5,6 Operating Environment ---------------------------------------------------------------------- 6 Maintenance ------------------------------------------------------------------------------------ 6 Trouble shooting ------------------------------------------------------------------------------- 7,8 No.SYJ300-OMO0002-A... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations *1) ISO 4414: Pneumatic fluid power -- General rules ISO 4413: Hydraulic fluid power -- General rules relating to systems IEC 60204-1: Safety of machinery --... - Page 4 Safety Instructions Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries.
-
Page 5: Precautions On Design
Design / Selection - 4 - No.SYJ300-OMO0002-A... -
Page 6: Piping
SYJA300/3000 Series Precautions for 5 Port Solenoid Valve ② ② ② ② Be sure to read before handling. Refer to main text for detailed precautions on every series. Piping Lubrication Caution Warning 1. Refer to the Fittings and Tubing 1. Lubrication Precautions for handling one-touch 1) The valve has been lubricated for life by the factory and does not require any further. -
Page 7: Operating Environment
Air Supply 4. If excessive carbon powder is seen, install a mist separator on the upstream side of the valve. If excessive carbon dust is generated by the compressor, it may adhere to the inside of a valve and cause it to malfunction. For compressed air quality, refer to SMC’s Best Pneumatics catalog. -
Page 8: Troubleshooting
TROUBLESHOOTING Should any trouble be found during operation, trace the source of the trouble in the following order and take corrective action. Remedy (Next page) Leakage Spool valve has not completely shifted - 7 - No.SYJ300-OMO0002-A... - Page 9 Remedy Remedy ① Regulate pressure so that pilot pressure will fall within operating pressure range furing operation. ○If wrong oil is used, completely air blow to remove oil, and replace valve. After valve is replaced, use turbine oil class 1 (ISO VG32). ②...
- Page 10 Revision history A Added the SYJA3000 printing PP 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
