Specific Product Precautions 5
ＳＹ３０００ ＳＹ ＳＹ ＳＹ ３０００・ ・ ・ ・ ５０００ ３０００ ３０００
Be sure to read before handing.
SY300,SY3000 Series

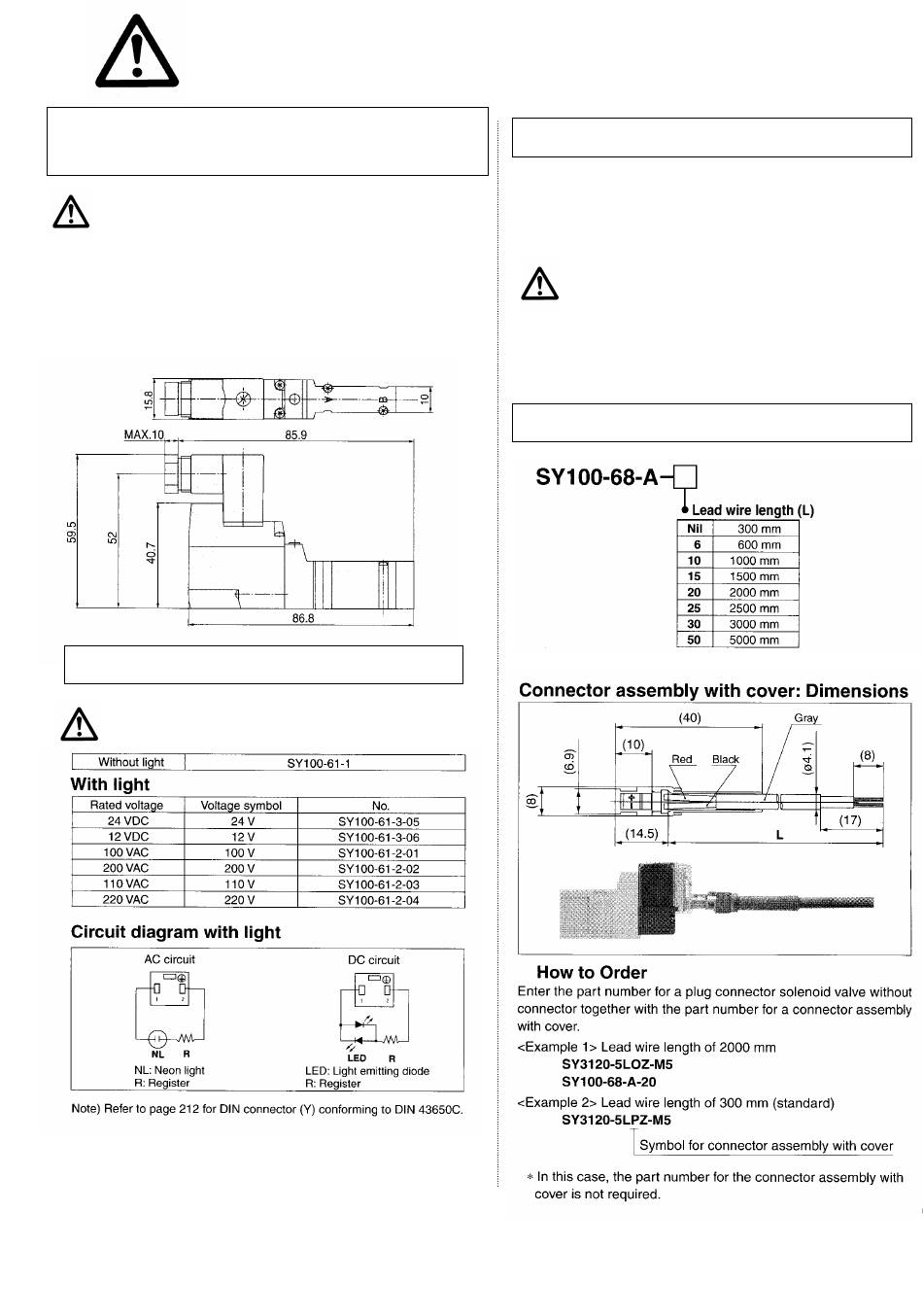

How to Use DIN Terminal Connector
Caution
SMC can provide a DIN style terminal connector (body ported type,
sub-plate type) for the series SY300 and SY3000. This cannot be
assembled to a standard manifold since the DIN connector
(15.8mm) exceeds that of the valve body (10mm). Contact SMC if you
wish to use with a manifold. Please also note: That brackets F1, F2
cannot be mounted.
DIN connector Part No.
Caution
５０００・ ・ ・ ・ ７０００ ５０００ ５０００ ７０００ Ｓｅｒｉｅｓ ７０００ ７０００
width
-12-
Ｓｅｒｉｅｓ Ｓｅｒｉｅｓ Ｓｅｒｉｅｓ
Connector Assembly With Cover
Connector assembly with dust proof protective cover.
Effective to prevention of short circuit failure due to the entry of
foreign matter into the connector.
Simple and unencumbered appearance by adopting round-shaped
cord.
Caution
Chloroprene rubber for electrical use, which provides outstanding
weather resistance and electrical insulation, is used for the cover
material. However, do not allow contact with cutting oil, etc.
How to Order
SY3000*-OMJ0003-A
