EVF MOUNTING

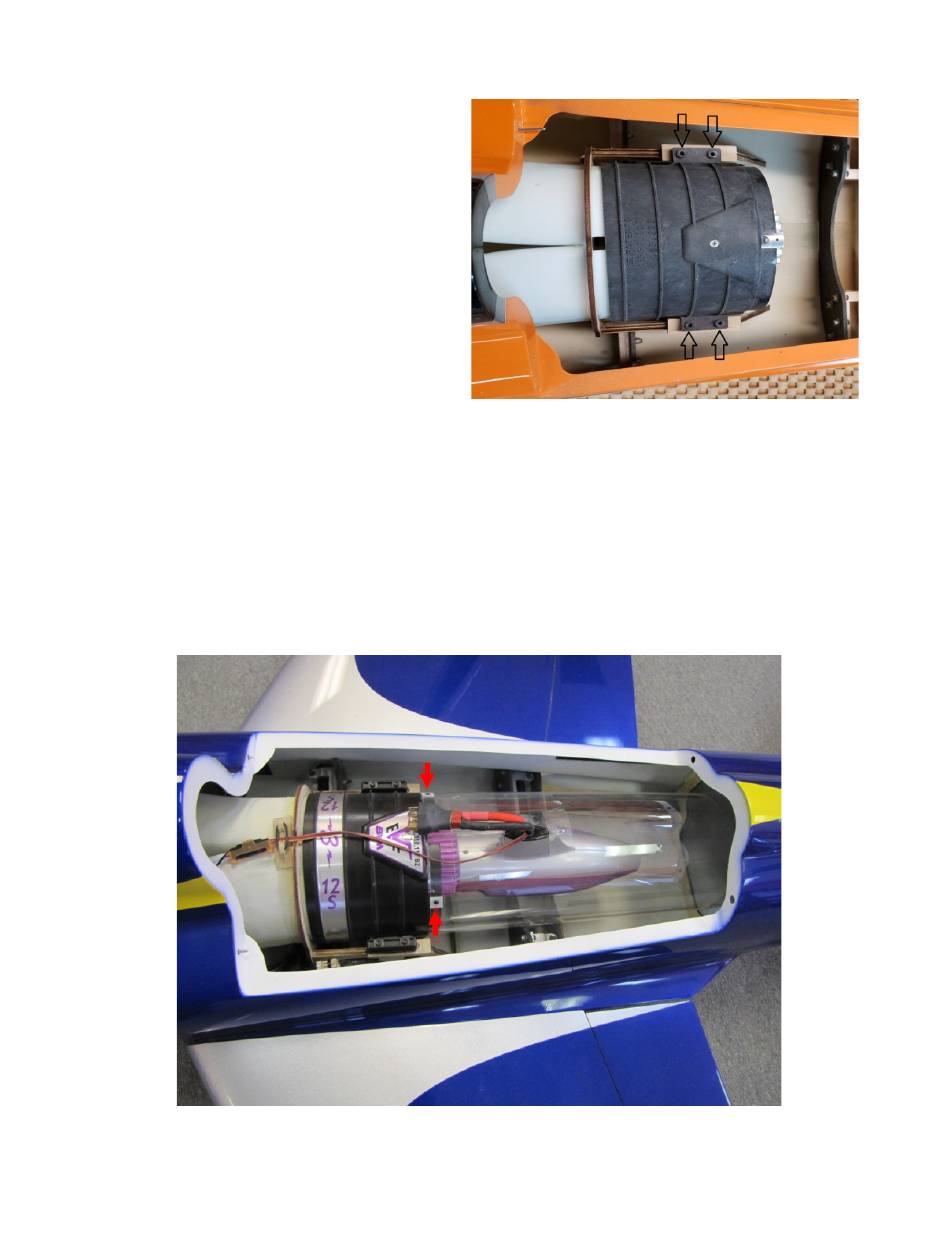

Slide the EVF Unit over the flange until
you feel it stop. Once this is done center
the EVF in the mount and drill and tap 4
holes for the 4-40 bolts that come with
the EVF Unit. Apply a drop of CA to
each hole then run the Tap into the
holes one more time.
NOTE: When running the fan for the first time
listen for any rubbing.

THRUST TUBE INSTALLATION

The thrust tube is already in the model when it comes. The only thing left for you to do is
drill 2 small 1/16 th holes, install button head screws, and tape the seam shut The thrust
tube has two laser cut holes in it already, this is your guide for drilling the EVF unit to
accept the 2 button head screws that hold it to the EVF unit.
