USER MANUAL
ENGLISH
Pixel Controller
V2
Product code: 44510
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pixel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SHOWTEC Pixel

Summary of Contents for SHOWTEC Pixel

  • Page 1 USER MANUAL ENGLISH Pixel Controller Product code: 44510 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2 Pixel Controller Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Pixel Controller Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................6 Warnings and Safety Instructions ........................
  • Page 4 Pixel Controller Pixel Type .............................27 Set Output ............................28 DMX ...............................28 Art-Net ..............................29 Kling-Net ...............................29 Slave ..............................30 Auto ..............................30 Manual ..............................31 Advanced Settings .............................31 Signal Hold ............................32 Pixel Reverse ............................32 Screen Timeout ...........................32 Screen Brightness..........................32 Software Version ..........................32 Invert Display ............................32 Factory Reset ............................32...

  • Page 5: Introduction

    Fig. 01 Intended Use This device is intended for use as a pixel controller. It is suitable only for indoor installation. It is not suitable for households. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

  • Page 6: Symbols And Signal Words

    Pixel Controller Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury.

  • Page 7: Safety

    Pixel Controller Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions...
  • Page 8 Attention This device shall be used only for the purposes it is designed for. This device is designed to be used as a pixel controller. Any incorrect use may lead to hazardous situations and result in injuries and material damage.

  • Page 9: Requirements For The User

    Pixel Controller Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged.

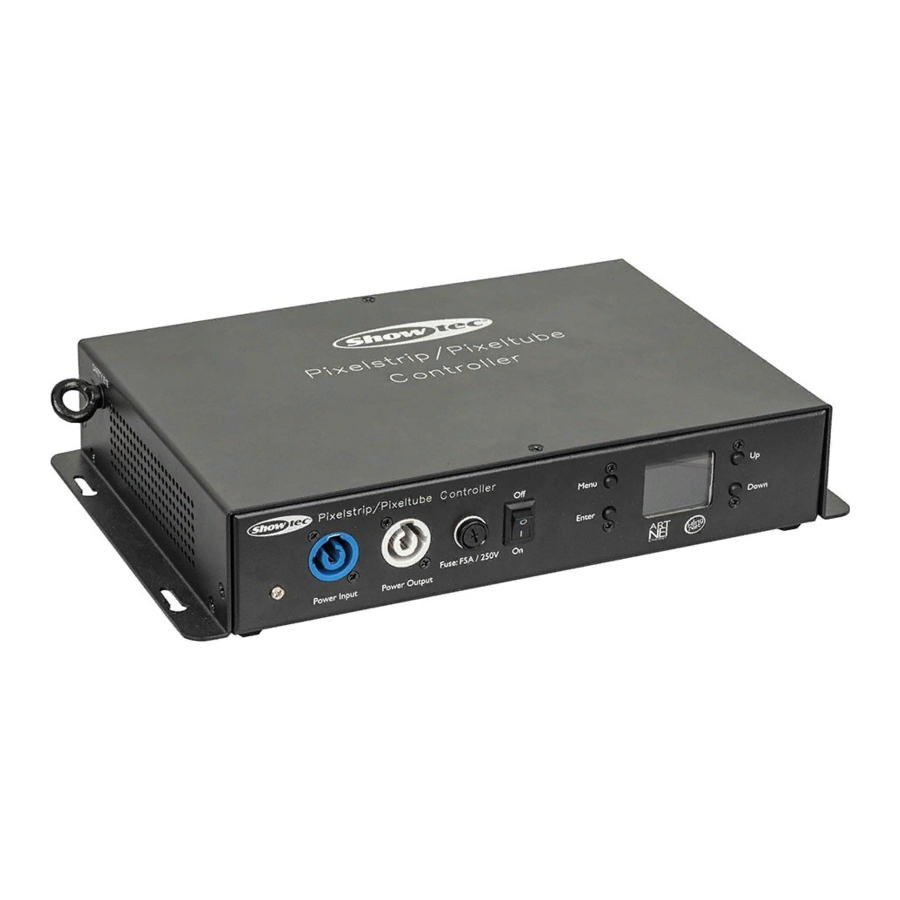

  • Page 10: Description Of The Device

    Description of the Device The Pixel Controller is suitable only for indoor installation (e.g. in hotels or theaters, in order to create a good ambience in a lobby) and it can be used only with the Pixelstrips 20 and 40, Pixeltubes 16 and 32 or PixelDots.

  • Page 11: Side View

    3-pin/5-pin DMX connectors IN, 2 x Art-Net RJ45 connectors IN/OUT Output connections: 3-pin/5-pin DMX connectors OUT, 4 x dedicated RJ45 connectors OUT Maximum cable length: 10 m (CAT-5/CAT-6) from the Pixel Controller to the Pixelstrip/Pixeltube/PixelDot Maximum output length: Pixelstrip 20/40: 4 m per output; 16 m per controller Pixeltube 16/32: 5 m per output;...

  • Page 12: Compatibility

    Pixel Controller Compatibility Attention The Pixel Controller is designed to be operated ONLY with the Pixelstrip 20/40, Pixeltube 16/32 or PixelDot. The Pixel Controller is delivered without the Pixelstrip/Pixeltube/PixelDot. You need to purchase these devices separately. Product code: 44501 (Pixelstrip 20, 50 cm)

  • Page 13: Installation

    Pixel Controller Installation 4.1. Safety Instructions for Installation Attention Make sure there is enough space for ventilation around the device. ● Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage.

  • Page 14: Connecting To Power Supply

    Pixel Controller Fig. 06 4.5. Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device.

  • Page 15: Power Linking Of Multiple Devices

    You need a DMX serial data link to run light shows of one or more devices using a DMX-512 controller or to run synchronized shows of two or more devices set in a master/slave operating mode. The Pixel Controller has 3-pin and 5-pin DMX signal IN and OUT connectors. The pin assignment is as follows: ●...

  • Page 16: Dmx Cables

    Pixel Controller 5.2.2. DMX Cables Shielded twisted-pair cables with 3-pin/5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network.

  • Page 17: Master/Slave Setup

    The Pixel Controller supports master/slave control mode. You can connect the Pixelstrip 20/40 (max. 4 m per output), Pixeltube 16/32 (max. 5 m per output) or PixelDots (max. 40 devices per output) to the Pixel Controller. In the example below, the Pixelstrip 40 is connected to the Pixel Controller.

  • Page 18: Dmx Linking

    You can connect the Pixelstrip 20/40 (max. 4 m per output), Pixeltube 16/32 (max. 5 m per output) or PixelDots (max. 40 devices per output) to the Pixel Controller. In the example below, the Pixelstrip 40 is connected to the Pixel Controller.

  • Page 19: Dmx Addressing

    The Pixel Controller has many different personalities, depending on what device is connected to it: Pixelstrip, Pixeltube or PixelDot. For example, if you want to connect multiple Pixel Controllers on one data link and use them in 7-channel mode, follow the steps below: Set the starting address of the 1 device on the data link to 1 (001).

  • Page 20: Art-Net/Kling-Net Setup

    5.3.3. Art-Net/Kling-Net Setup The Pixel Controller has 2 RJ45 connectors. Either connector can be used as an input and as throughput. You can connect the Pixelstrip 20/40 (max. 4 m per output), Pixeltube 16/32 (max. 5 m per output) or PixelDots (max.

  • Page 21: Art-Net Settings

    Pixel Controller 5.3.4. Art-Net Settings To run your device using Art-Net protocol: Configure the network address of your computer/lighting controller in the correct range (IP 2.x.x.x, 10.x.x.x or 192.168.x.x and Subnet 255.0.0.0). To change the IP address of the device, refer to 6.6.2.1.

  • Page 22: Universe Numbering

    (0–15) 32766 32767 Make sure that you do not have any overlapping channels in order to control each Pixel Controller correctly. If two or more devices are addressed similarly, they will work similarly. Note: If you are using an Art-Net controller that supports Art-Net I or Art-Net II, the Art-Net net must be set to 0.

  • Page 23: Operation

    This device must be used only for the purposes it is designed for. This device is intended for professional use as a pixel controller. It is suitable only for indoor installation. This device is not suitable for households and for general lighting.

  • Page 24: Control Panel

    Start-up Upon start-up the display will show the following screen: When you press the MENU button, the Pixel Controller will show its main menu : Note: If no button is pressed, the display will turn off. Press any button to turn the display on. See 6.6.4.3.

  • Page 25: Menu Overview

    Pixel Controller Menu Overview Product code: 44510...

  • Page 26: Main Menu Options

    DMX Address Network Settings Pixel Type / Set Output / DMX / Art-Net / Kling-Net / Slave / Auto / Manual Signal Hold / Pixel Reverse / Screen Timeout / Screen Brightness / Software Version / Invert Display / Factory Reset Press the UP/DOWN buttons to navigate through the main menu.

  • Page 27: Network Settings

    Pixel Controller Network Settings In this menu you can set the network settings. 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to confirm. The display will show: Set Manual/DHCP 01) Press the UP/DOWN buttons to select MANUAL/DHCP.

  • Page 28: Control Modes

    Pixeltube 16/32 PixelDot 03) Press the ENTER button to confirm your choice. The Pixel Controller will reset and load the options necessary for the correct functioning of the selected device. Note: Do not combine Pixelstrips, Pixeltubes and PixelDots on the same Pixel Controller at the same time.

  • Page 29: Set Output

    01) When the display shows SETOUTPUT, press the ENTER button to open the menu. The display will show the available output options, depending on what device was chosen in 6.6.3.1. Pixel Type on page 02) Press the UP/DOWN buttons to select one of the available output modes.

  • Page 30: Art-Net

    01) When the display shows ARTNET, press the ENTER button to open the menu. The display will show the available Art-Net options, depending on what options were chosen in 6.6.3.1. Pixel Type on page 27 and in 6.6.3.2. Set Output on page 28: 02) Press the UP/DOWN buttons to select UNIVERSE and press the ENTER button to confirm.

  • Page 31: Slave

    Pixel Controller Slave In this menu you can set the device as a slave. 01) When the display shows SLAVE, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select YES or NO. If you choose YES, the device will react the same as the master device.

  • Page 32: Manual

    Pixel Controller Manual In this menu you can run Manual mode. 01) When the display shows MANUAL, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select one of the 5 options: DIMMER: Dimmer brightness (0–255, from dark to brightest)

  • Page 33: Signal Hold

    Pixel Controller Signal Hold In this menu you can determine the behaviour of the Pixel Controller in case of a DMX failure. 01) Press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to select one of the 2 options: BLACK: If DMX signal is lost, the device will black its output out.

  • Page 34: Dmx Channels

    DMX Channels The available DMX channel modes depend on the device connected to the Pixel Controller (see 6.6.3.1. Pixel Type on page 27) as well as on the selected output mode (see 6.6.3.2. Set Output on page 28). Pixelstrip 20/40...

  • Page 35: 120, 240, 360, 480 Channels

    Pixel Controller 120, 240, 360, 480 Channels Function Value Setting Red (pixel 1) 000–255 From low to high intensity (0–100 %) Green (pixel 1) 000–255 From low to high intensity (0–100 %) Blue (pixel 1) 000–255 From low to high intensity (0–100 %) Red (pixel 2) 000–255...

  • Page 36: 480 Channels (Art-Net)

    Pixel Controller 480 Channels (Art-Net) 480 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 37: 960 Channels (Art-Net)

    Pixel Controller 960 Channels (Art-Net) 960 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 38: 1440 Channels (Art-Net)

    Pixel Controller 1440 Channels (Art-Net) 1440 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 39: 1920 Channels (Art-Net)

    Pixel Controller 1920 Channels (Art-Net) 1920 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 40: Pixeltube 16/32

    Pixel Controller Pixeltube 16/32 7 Channels 7 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) 000–004 Strobe off Strobe 005–255 From low to high frequency 000–255 From low to high intensity (0–100 %) Green 000–255...

  • Page 41: 96, 192, 288, 384, 480 Channels

    Pixel Controller 96, 192, 288, 384, 480 Channels Function Value Setting Red (pixel 1) 000–255 From low to high intensity (0–100 %) Green (pixel 1) 000–255 From low to high intensity (0–100 %) Blue (pixel 1) 000–255 From low to high intensity (0–100 %) Red (pixel 2) 000–255...

  • Page 42: 384 Channels (Art-Net)

    Pixel Controller 384 Channels (Art-Net) 384 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 43: 768 Channels (Art-Net)

    Pixel Controller 768 Channels (Art-Net) 768 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 44: 1152 Channels (Art-Net)

    Pixel Controller 1152 Channels (Art-Net) 1152 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 45: 1536 Channels (Art-Net)

    Pixel Controller 1536 Channels (Art-Net) 1536 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 46: 1920 Channels (Art-Net)

    Pixel Controller 1920 Channels (Art-Net) 1920 CH Function Value Setting Red (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Green (pixel 1, universe 0) 000–255 From low to high intensity (0–100 %) Blue (pixel 1, universe 0) 000–255...

  • Page 47: Pixeldot

    Pixel Controller PixelDot 7 Channels 7 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) 000–004 Strobe off Strobe 005–255 From low to high frequency 000–255 From low to high intensity (0–100 %) Green 000–255 From low to high intensity (0–100 %)

  • Page 48: 30, 60, 90, 120 Channels

    Pixel Controller 30, 60, 90, 120 Channels Function Value Setting Red (PixelDot 1) 000–255 From low to high intensity (0–100 %) Green (PixelDot 1) 000–255 From low to high intensity (0–100 %) Blue (PixelDot 1) 000–255 From low to high intensity (0–100 %) Red (PixelDot 2) 000–255...

  • Page 49: 120 Channels (Dmx And Art-Net)

    Pixel Controller 120 Channels (DMX and Art-Net) 120 CH Function Value Setting Red (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Green (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Blue (PixelDot 1, output 1) 000–255...

  • Page 50: 240 Channels (Dmx And Art-Net)

    Pixel Controller 240 Channels (DMX and Art-Net) 240 CH Function Value Setting Red (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Green (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Blue (PixelDot 1, output 1) 000–255...

  • Page 51: 360 Channels (Dmx And Art-Net)

    Pixel Controller 360 Channels (DMX and Art-Net) 360 CH Function Value Setting Red (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Green (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Blue (PixelDot 1, output 1) 000–255...

  • Page 52: 480 Channels (Dmx And Art-Net)

    Pixel Controller 480 Channels (DMX and Art-Net) 480 CH Function Value Setting Red (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Green (PixelDot 1, output 1) 000–255 From low to high intensity (0–100 %) Blue (PixelDot 1, output 1) 000–255...

  • Page 53: Troubleshooting

    Pixel Controller Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 54: Maintenance

    Pixel Controller Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded.

  • Page 55: Replacing The Fuse

    Pixel Controller 8.3.1. Replacing the Fuse DANGER Electric shock caused by short-circuit ● Do not bypass the thermostatic switch or fuses. ● For replacement use fuses of the same type and rating only. Power surges, short-circuit or incorrect electrical power supply may cause a fuse to burn out. If the fuse burns out, the device will not function anymore.

  • Page 56: Deinstallation, Transportation And Storage

    Pixel Controller Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device.
  • Page 57 Pixel Controller Product code: 44510...
  • Page 58 Pixel Controller Product code: 44510...
  • Page 59 Pixel Controller Product code: 44510...
  • Page 60 ©2021 Showtec...
