- Page 1 MANUAL ENGLISH PLE-30-080 Chainhoist Controller Ordercode: 70237 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backwards Rotation / Down ............................9 Idle Position (0) ................................9 Emergency Stop ................................9 Pin Assignment for a 16-pin Harting socket......................10 Maintenance ..................................10 Troubleshooting ................................11 Connection Diagram ..............................12 Declaration of Conformity ............................13 Product Specifications ..............................14 Dimensions ..................................15 Ordercode: 70237... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Chainhoist Controller ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... - Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Improper installation can cause serious damage to people and property ! Ordercode: 70237... -
Page 6: Return Procedure
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: 70237... -
Page 7: Description Of The Device

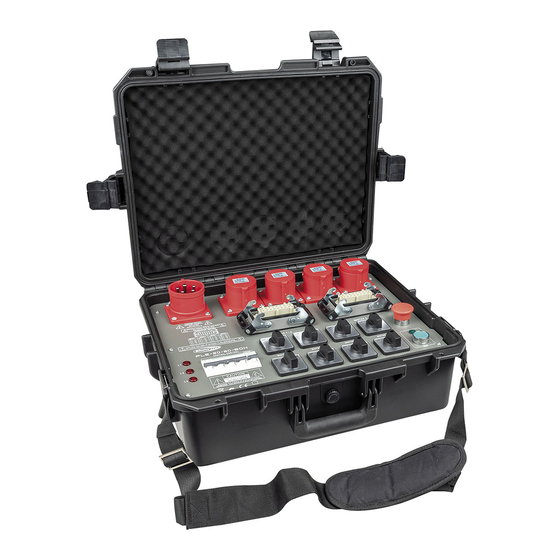

PLE-30-080 Chainhoist Contoller Description of the device Features The Showtec Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. ● The controller is mounted in an strong and convenient ABS case ● Each of the 8 hoists can be selected individually to go up or down or to be deselected as long as... - Page 8 09) Mains switch 3 phase short circuit breaker (4x 10A D) 10) L1, L2, L3 Phase failure indication neon lamps Setup Possibilities PLE-30-080 (70237) 1. 4x red CEE for Motor 1-4 2. 1x Harting for Motor 1-4 3. 1x Harting for Motor 5-8 4.
-
Page 9: Functional Description
This device is meant for professional use and should only be used in a professional environment. Follow all warnings and guidelines in this manual Otherwise it could cause severe injuries or even death !!!. Ordercode: 70237... -
Page 10: Installation
When the chainhoist controller is powered on, select the desired motor and set the switch to the "0" position to access to the Idle position. All four outputs are isolated and no operation is possible. Emergency Stop In case of an emergency immediately press the RED emergency "STOP" button. Ordercode: 70237... -
Page 11: Pin Assignment For A 16-Pin Harting Socket
Pin Assignment for a 16-pin Harting socket Maintenance The Showtec Chainhoist Controller requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel clean with mild detergent and a soft cloth. -
Page 12: Troubleshooting
The surrounding temperature is too high/too low Place the chainhoist controller in a cooler/warmer place If the problem is not solved, immediately return your device unit to an authorised dealer. Ordercode: 70237... -
Page 13: Connection Diagram
PLE-30-080 Chainhoist Contoller Connection Diagram Ordercode: 70237... -
Page 14: Declaration Of Conformity
PLE-30-080 Chainhoist Contoller Declaration of Conformity Ordercode: 70237... -
Page 15: Product Specifications
Compact strong metal housing Mains Circuit Breaker 4x 10A D Circuit breaker (for Run switch + Stop button) 2A C Max. ambient temperature t 40°C Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.com Ordercode: 70237... -
Page 16: Dimensions
PLE-30-080 Chainhoist Contoller Dimensions Ordercode: 70237... - Page 17 PLE-30-080 Chainhoist Contoller Ordercode: 70237...
- Page 18 PLE-30-080 Chainhoist Contoller Ordercode: 70237...
- Page 19 PLE-30-080 Chainhoist Contoller Ordercode: 70237...
- Page 20 ©2020 Showtec...
