Crane operation
11.4 Operation of the rated capacity limiter
11.4.12
Export data
11 - 68

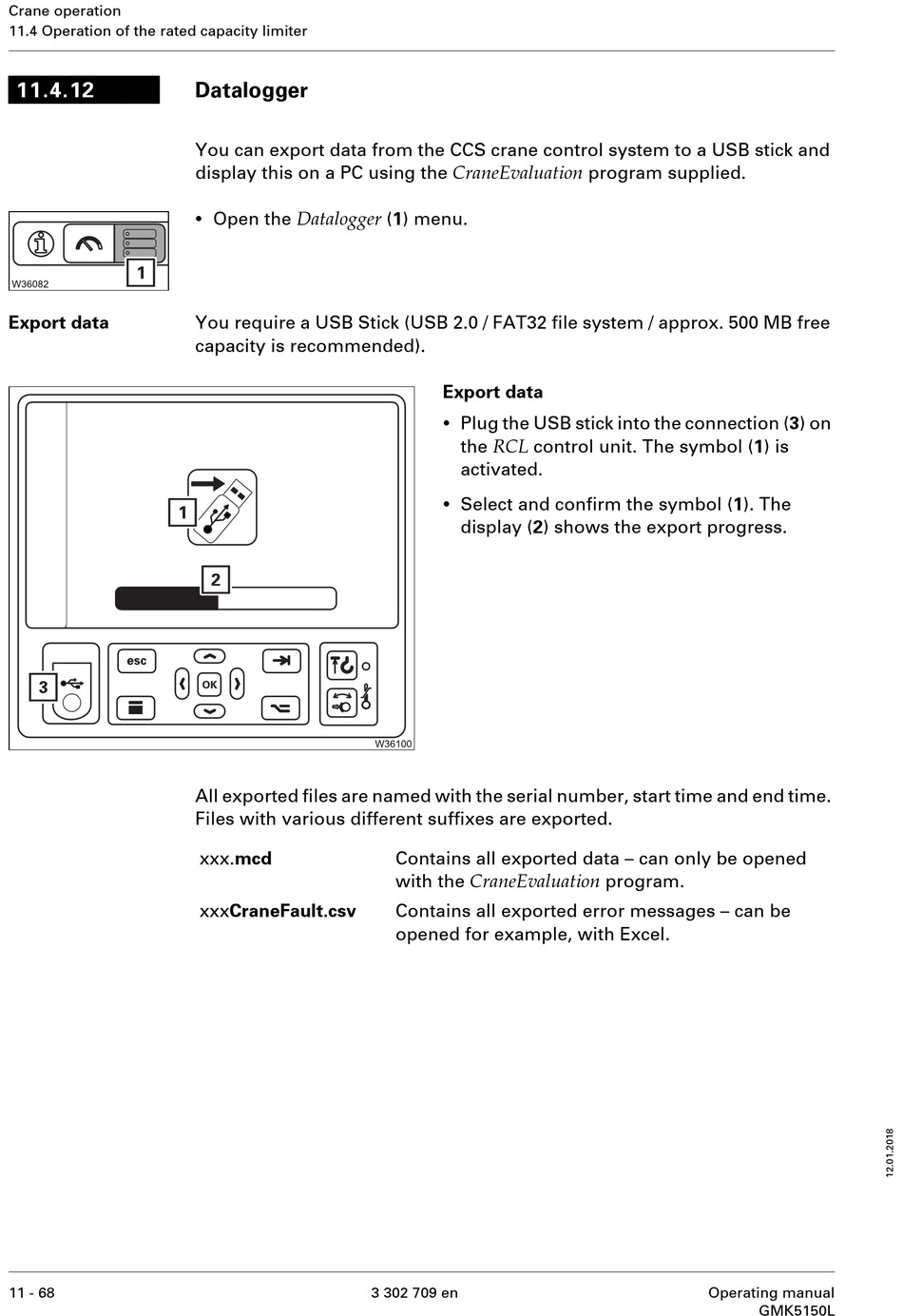

Datalogger

You can export data from the CCS crane control system to a USB stick and
display this on a PC using the CraneEvaluation program supplied.
•
Open the Datalogger (1) menu.
You require a USB Stick (USB 2.0 / FAT32 file system / approx. 500 MB free
capacity is recommended).
All exported files are named with the serial number, start time and end time.
Files with various different suffixes are exported.
xxx.mcd
xxxCraneFault.csv
Export data
•
Plug the USB stick into the connection (3) on
the RCL control unit. The symbol (1) is
activated.
•
Select and confirm the symbol (1). The
display (2) shows the export progress.
Contains all exported data – can only be opened
with the CraneEvaluation program.
Contains all exported error messages – can be
opened for example, with Excel.
3 302 709 en Operating manual
GMK5150L
