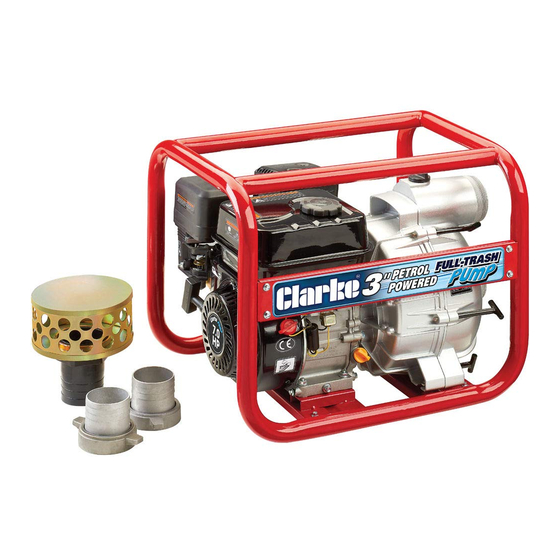

- Page 1 ENGINE DRIVEN 3” FULL TRASH PUMP MODEL NO: PF75 PART NO: 7230165 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0117 ISS 2...
- Page 2 2 x 3" Locking Rings 1 x Metal Inlet Strainer with 3" Hose adaptors 3 x Hose Clips Speak to your Clarke dealer If items are missing or damaged. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: WHEN USING PUMPS, ALWAYS FOLLOW BASIC SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. READ ALL INSTRUCTIONS BEFORE YOU OPERATE THIS PUMP AND SAVE THEM FOR FUTURE REFERENCE. 1. ALWAYS obey all safety precautions for the handling of fuel. 2. -
Page 4: General Safety In The Workplace
5. Always wear safety glasses. (Everyday glasses are not safety glasses). CARE OF PUMPS 1. The Clarke service department must replace damaged components. 2. Always examine the pump for damage that can effect the operation of the pump. Repair any damaged parts. - Page 5 3. Slide the hose on to the adaptor and lock in position with the hose clip supplied. • 3" Reinforced Hose is available from your Clarke Stockist (Part number - 7955030) 4. Install the strainer on to the other end of the hose following the picture on the right.
- Page 6 3. Slide the hose on to the adaptor and lock in position with the hose clip supplied. • 3" Reinforced Hose is available from your Clarke Stockist (Part number - 7955030) Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 7: Before Use
BEFORE USE PUMP PLACEMENT For best pump performance, place the pump near the water level, and use hoses that are no longer than necessary. That will enable the pump to produce the greatest output with the least self-priming time. As head (pumping height) increases, pump output decreases. The length, type, and size of the suction and discharge hoses can also significantly affect pump output. -
Page 8: Check The Engine Oil Level
• Oil capacity (See page 19). • We recommend you use SAE15W40 oil in this pump. available from your Clarke dealer. 5. Replace the oil filler cap. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 9: Recommended Fuel
ADD FUEL WARNING: REFUEL IN A VENTILATED AREA, AWAY FROM SOURCES OF IGNITION. WARNING: IF THE ENGINE IS HOT, LET IT COOL BEFORE REFUELING. WARNING: KEEP FUEL OUT OF THE REACH OF CHILDREN. RECOMMENDED FUEL Only use unleaded petrol. 1. Remove the fuel tank cap. •... -
Page 10: Operation
OPERATION WARNING: WHEN YOU OPERATE THE PUMP, THE EXHAUST MUFFLER WILL BE VERY HOT. WARNING: DO NOT OPERATE THE ENGINE IN A CLOSED SPACE, MAKE SURE THAT THERE IS SUFFICIENT AIRFLOW AROUND THE PUMP. PRIME THE PUMP 1. The pump MUST be primed before use. -
Page 11: Start The Engine
START THE ENGINE 1. MAKE SURE THE PUMP IS PRIMED (SEE PAGE 10) 2. Set the fuel valve to the ON position. 3. To start a cold engine, move the choke lever to the ‘OFF’ position. • To restart a warm engine, leave the choke lever in the ‘ON’... -
Page 12: Setting The Engine Speed
6. Pull the starting handle lightly until you start to feel resistance. Then pull up and away suddenly to start the engine. NOTE: You might need to do this more than once. WARNING: WHEN THE PUMP HAS STARTED, RELEASE THE STARTING HANDLE SLOWLY TO PREVENT INJURY/DAMAGE AS IT RETURNS. -
Page 13: Shut Down The Pump
SHUT DOWN THE PUMP To stop the pump in an emergency, set the engine switch to ‘OFF’. 1. Use the throttle lever to decrease engine speed to minimum. 2. Set the engine switch to “OFF”. 3. Turn the fuel valve to “OFF”. AFTER USE 1. -
Page 14: Maintenance
MAINTENANCE CLEARING BLOCKAGES 1. Remove the hoses and adaptors from the pump. 2. Remove the 6 locking rods. 3. Remove the front cover. 4. Clear debris and clean the inner parts using clean water. 5. Replace the front cover and secure using the 6 locking rods. -
Page 15: Changing The Engine Oil
• Fill until the oil touches the threads in the oil fill tube. • Oil capacity (0.6l). • We recommend that you use SAE15W40 oil in this pump available from your Clarke dealer. 6. Replace the oil filler cap/dipstick. ENVIRONMENTAL PROTECTION One of the most damaging sources of pollution is oil, do not throw away or pour it down drains. -
Page 16: Changing The Spark Plug
CHANGING THE SPARK PLUG Replace the spark plug after the first month or every 50 hours of use. 1. Remove the spark plug cap from the spark plug. 2. Use the spark plug spanner supplied to remove the spark plug. 3. -
Page 17: Changing The Air Filter
CHANGING THE AIR FILTER Clean the air filter after 50 hours of operation (or more often in unusually dusty conditions) as follows. 1. Unscrew the wingnut and lift off the air filter cover. 2. Remove the wingnut that holds the air filter in position. 3. -
Page 18: Troubleshooting
If a spark is present but engine will not start, consult your Clarke dealer. The engine stops No fuel in tank. Add fuel to the tank. -
Page 19: Environmental Protection
Damaged impeller. Disassemble the pump and replace the impeller. If you cannot correct the fault, speak to your local dealer or the Clarke International service department. ENVIRONMENTAL PROTECTION At the end of its working life, do not discard this pump or its components with general household waste. -
Page 20: Specification
SPECIFICATION Item Spec pump dimensions (L x W x H) 550 x 430 x 455 mm pump Weight (kgs) 28.25 kg Water classification Dirty / Clean (NOT SEWAGE) Max solids 28 mm Inlet/Outlet Size 3” Maximum Flow 1300l/min (78m /h) max Max Head 28 m Suction Head... -
Page 21: Exploded Diagrams And Parts List
EXPLODED DIAGRAMS AND PARTS LIST A full set of parts list and diagrams are available from the Clarke International service department. WATER PUMP ASSEMBLY NUMBER DESCRIPTION PART NUMBER HOSE HOOP ASSEMBLY ZGGMQGZ804530F6801 FILTER COVER ZGGMQGZ804530F6802 FILTER ZGGMQGZ804530F6803 BOLT ZGGMQGZ804530F6804 WASHER... - Page 22 WASHER ZGGMQGZ804530F6820 WATER PUMP IMPELLER ZGGMQGZ804530F6821 ZGGMQGZ804530F6822 WATER PUMP JOINT CUSHION ZGGMQGZ804530F6823 IMPELLER SEAL ZGGMQGZ804530F6824 PORCELAIN SEAL ZGGMQGZ804530F6825 MECHANISM SEAL ASSEMBLY ZGGMQGZ804530F6826 WATER PUMP JOINT ZGGMQGZ804530F6827 WASHER ZGGMQGZ804530F6828 BOLT ZGGMQGZ804530F6829 WATER PUMP ASSEMBLY ZGGMQGZ804530F6830 ENGINE FRAME ASSEMBLY NUMBER DESCRIPTION PART NUMBER ENGINE FRAME ASSEMBLY ZG51100V010110H700 DECORATIVE FRAME...
-
Page 23: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
