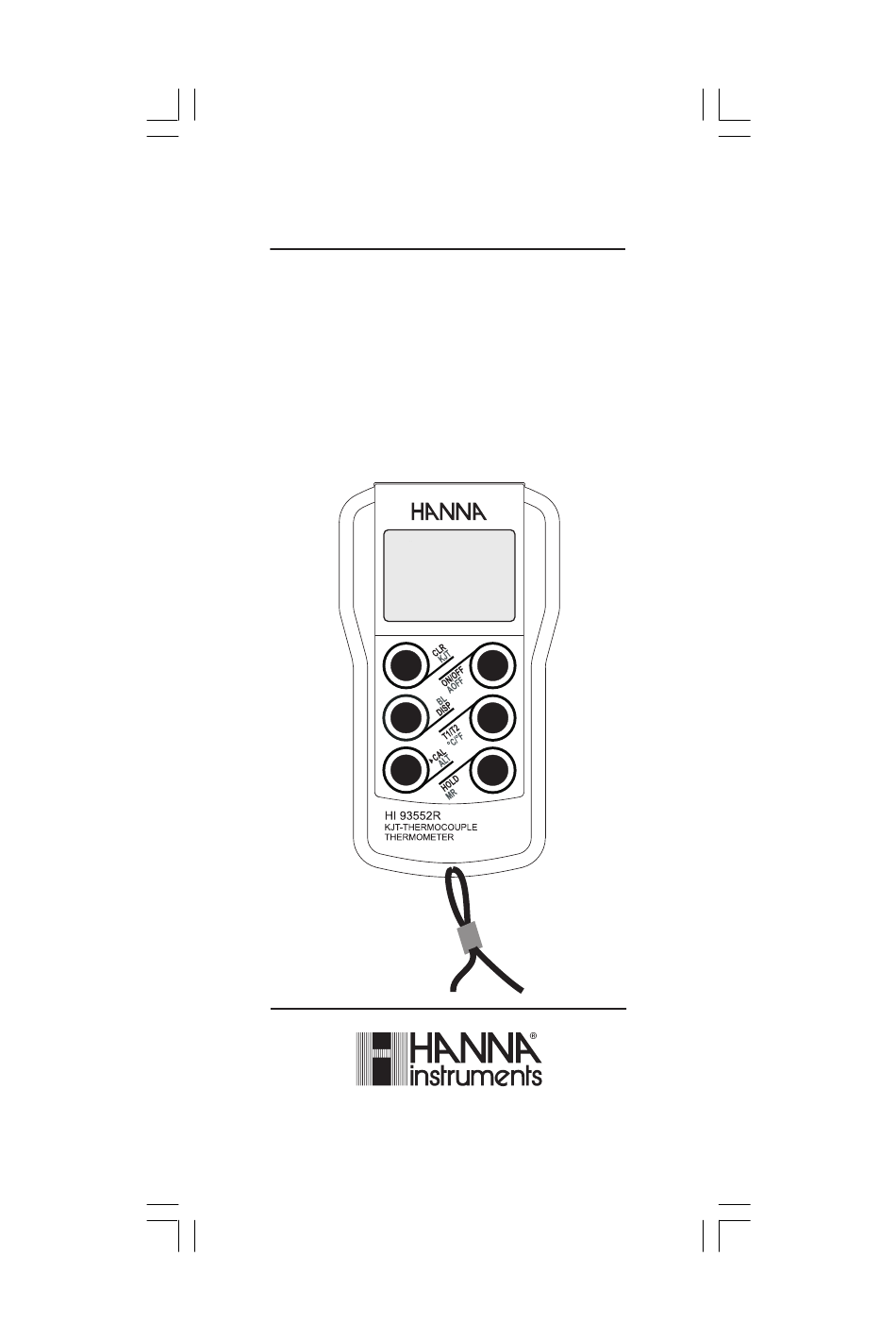

Instruction Manual
HI93551 • HI93551N
HI93551R
HI93542 • HI93552
HI93552R
K J T - Thermometers
w w w. h a n n a i n s t . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI93551 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hanna Instruments HI93551

  • Page 1 Instruction Manual HI93551 • HI93551N HI93551R HI93542 • HI93552 HI93552R K J T - Thermometers w w w. h a n n a i n s t . c o m...
  • Page 2: Table Of Contents

    If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization number from the Technical Service department and then send it with shipping costs prepaid.
  • Page 3: Preliminary Examination

    PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it carefully to make sure that no damage has occurred during shipping. If there is any damage, please contact your local Hanna Instruments Office.PC Each instrument is supplied with: •...
  • Page 4: Specifications Of Hi93551 And Hi93551N

    SPECIFICATIONS OF HI93551 & HI93551N SPECIFICATIONS Range (*) -200.0 to 999.9°C / 1000 to 1371°C -328.0 to 999.9°F / 1000 to 2500°F -200.0 to 999.9°C -328.0 to 999.9°F / 1000 to 1832°F -200.0 to 400.0°C -328.0 to 752.0°F Resolution 0.1°C (-149.9 to 999.9°C) 0.2°C (-200.0 to -150.0°C) / 1°C (1000 to 1371°C)
  • Page 5 HI93551 HI93551N Keyboard Functions: ON/OFF : turn the meter ON and OFF. HOLD : freeze the reading on display. °C/°F : change reading unit (°C or °F). KJT : select the thermocouple type. CLR : clear the HI and LO values.
  • Page 6: Specifications Of Hi93542 And Hi93552

    SPECIFICATIONS OF HI93542 & HI93552 SPECIFICATIONS Range (*) -200.0 to 999.9°C / 1000 to 1371°C -328.0 to 999.9°F / 1000 to 2500°F -200.0 to 999.9°C -328.0 to 999.9°F / 1000 to 1832°F -200.0 to 400.0°C -328.0 to 752.0°F Resolution 0.1°C (-149.9 to 999.9°C) 0.2°C (-200.0 to -150.0°C) / 1°C (1000 to 1371°C) 0.1°F (-24.9 to 999.9°F) / 0.2°F (-249.9 to -25.0°F) 0.3°F (-328.0 to -250.0°F) / 1°F (1000 to 2500°F)
  • Page 7 HI93542 HI93552 Keyboard Functions: ON/OFF : turn the meter ON and OFF. T1/T2 : select the reading channel (T1, T2 or T1-T2). HOLD : freeze the reading on display. In HI93552, the frozen value is also stored in non-volatile memory. CLR : clear the HI and LO values, reset the relative or average measurement.
  • Page 8: Specifications Of Hi93551R And Hi93552R

    SPECIFICATIONS OF HI93551R & HI93552R SPECIFICATIONS Range (*) -200.0 to 999.9°C / 1000 to 1371°C -328.0 to 999.9°F / 1000 to 2500°F -200.0 to 999.9°C -328.0 to 999.9°F / 1000 to 1832°F -200.0 to 400.0°C -328.0 to 752.0°F Resolution 0.1°C (-149.9 to 999.9°C) 0.2°C (-200.0 to -150.0°C) / 1°C (1000 to 1371°C) 0.1°F (-24.9 to 999.9°F) / 0.2°F (-249.9 to -25.0°F) 0.3°F (-328.0 to -250.0°F) / 1°F (1000 to 2500°F)
  • Page 9 HI93551R HI93552R Keyboard Functions: ON/OFF : turn the meter ON and OFF. T1/T2 : select the reading channel (T1, T2 or T1-T2). HOLD : freeze the reading on display. The frozen value is also stored in non-volatile memory. CLR : clear the HI and LO values, reset the relative or average measurement.
  • Page 10: Operational Guide

    (HI93552 and HI93552R), or set the switch located in the battery compartment (HI93542, see figure on page 10). THERMOCOUPLE TYPE SELECTION, KJT By pressing KJT (HI93551, HI93551N and HI93542) or (ALT+)KJT keys (HI93551R, HI93552 and HI93552R), the thermometer is set according to the connected thermocouple type. The corresponding symbol will be displayed, i.e.
  • Page 11 To save battery life, the meters are provided with an auto-off feature, which switches the meter off after 60 minutes of nonuse. In HI93551, HI93551N and HI93542 models, to disable this feature set the internal slide-switch located in the battery compartment (see...
  • Page 12 The HI93551R, HI93552 and HI93552R allow the user to select the auto-off time period through the front keyboard; press (ALT+) AOFF to enter the mode, then set the desired auto shut-off interval (8 min, 60 min, or disabled) with the ALT key; release all buttons, wait a few seconds and the meter will return to normal measurement mode.
  • Page 13 2-CHANNEL MODELS (HI93542, HI93552 & HI93552R) HI93542, HI93552 and HI93552R models can monitor two samples through two independent temperature channels (probes). The display shows the actual, Hi and Lo (or T1 and T2) values of the selected channel (T1, T2 or T1-T2). The corresponding tags light up to inform the user.
  • Page 14 The average mode will calculate the average for a period of up to 24 hours. If a different mode is selected for that channel, the average will no longer calculate and the value will be lost. At the end of the 24 hour period, the "AVG" tag will blink to indicate that sampling has stopped, and the displayed value is the last average calculated.
  • Page 15: Serial Port Communication

    32-character ASCII string, compatible with our optional HI92000 software. To allow our users access to the latest version of Hanna Instruments PC compatible software, we made the products available for download at http://software.hannainst.com. Select the product code and click Download Now.
  • Page 16: User Calibration

    USER CALIBRATION The HI93551N, HI93551R, HI93552 and HI93552R models can be calibrated at 0°C by using an ice bath. • Prepare an ice bath with approximately equal volumes of distilled water and chopped ice made from distilled water. • Immerse the temperature probe in the center of the ice bath, taking care not to touch the ice with the probe tip.
  • Page 17: Battery Replacement

    BATTERY REPLACEMENT When the battery level is below 5%, a warning symbol will blink on the LCD to indicate a low battery condition. If the battery level is low enough to cause erroneous readings, the Battery Error Prevention System (BEPS) turns the meter off. Immediately replace the batteries with new ones.
  • Page 18: Accessories

    ACCESSORIES K-TYPE THERMOCOUPLE PROBES with integral handle, 1 m (3.3') cable & mini-connector: HI766A Roller surface probe, max 320°C/600°F HI766B Surface probe, max 650°C/1200°F HI766B1 90º Surface probe, max 450°C/840°F HI766B2 Spring-loaded, surface probe, max 900°C/1650°F HI766B3 Spring-loaded, small surface probe with insulated shaft, max 200°C/390°F HI766C Penetration probe, max 900°C/1650°F...
  • Page 19 HI920011 Serial cable for PC connection CERTIFICATION All Hanna Instruments conform to the CE European Directives. Disposal of Electrical & Electronic Equipment. The product should not be treated as household waste. Instead hand it over to the appropriate collection point for the recycling of electrical and electronic equipment which will conserve natural resources.
  • Page 20 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MANKJT 06/19 Printed in ROMANIA...
