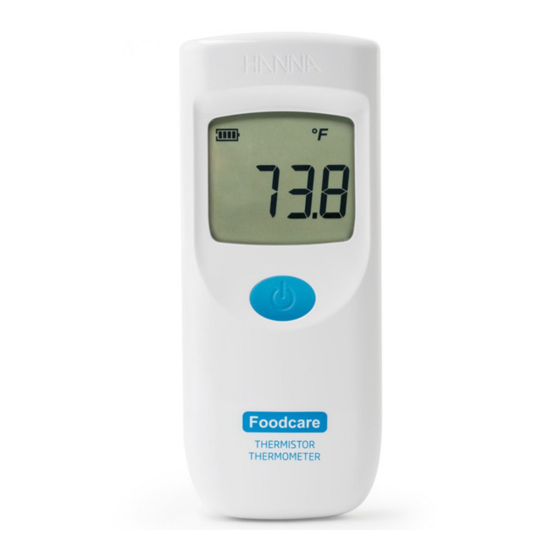

Hanna Instruments Foodcare HI 93501 Instruction Manual

Portable microprocessor thermometers
Hide thumbs Also See for Foodcare HI 93501:

Advertisement

Table of Contents

Enlarged version

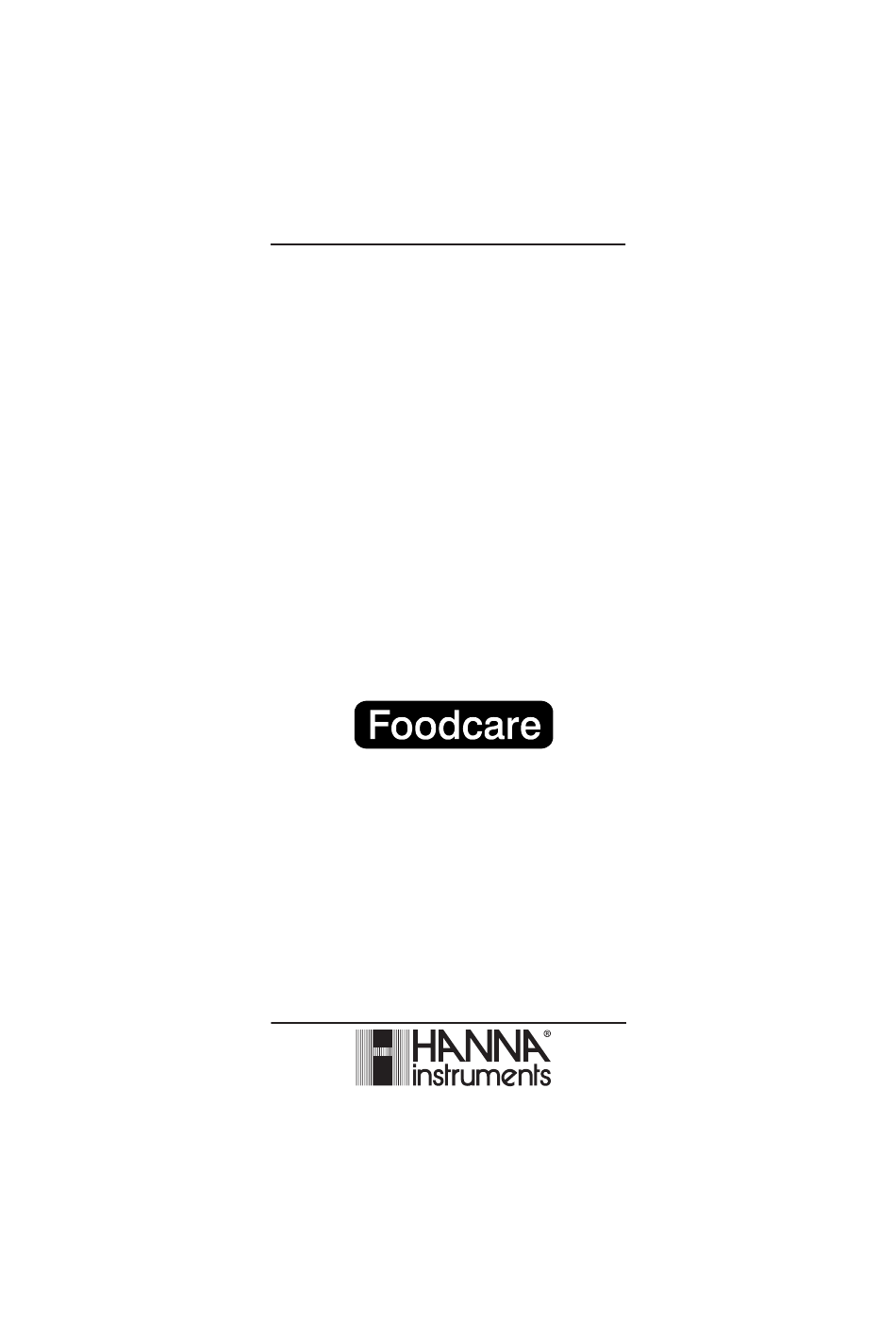

Instruction Manual
HI 9241
HI 93501
HI 93501S
HI 93503
HI 935007
Portable Microprocessor
Thermometers
w w w . h a n n a i n s t . c o m
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foodcare HI 93501 and is the answer not in the manual?

Questions and answers

Related Manuals for Hanna Instruments Foodcare HI 93501

Summary of Contents for Hanna Instruments Foodcare HI 93501

  • Page 1 Instruction Manual HI 9241 HI 93501 HI 93501S HI 93503 HI 935007 Portable Microprocessor Thermometers w w w . h a n n a i n s t . c o m...

  • Page 2: Table Of Contents

    If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization number from the Technical Service department and then send it with shipping costs prepaid.

  • Page 3: Preliminary Examination

    PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it to make sure that no damage has occurred during shipping. If there is any damage, notify your dealer or the nearest Hanna Customer Service Center. Each meter is supplied complete with: •...

  • Page 4: Specifications Of Hi 9241S

    SPECIFICATIONS OF HI 9241 Main features: • HI 765 probes series • Calibration Check feature • Remaining battery life indication / low battery detection • Auto-off capability • Waterproof casing Range -50.0 to 150.0 °C Resolution 0.1 °C Accuracy ±0.4 °C excluding probe error Typical EMC Deviation ±0.5 °C (with HI 765BL probe) Battery 3 x 1.5V AAA, approx.

  • Page 5: Specifications Of Hi 93501 & Hi 93501S

    SPECIFICATIONS OF HI 93501 & HI 93501S Main features: • HI 762 probes series • Range -50 to 150 °C • Calibration Check feature • Remaining battery life indication / low battery detection • Stability indicator (S model) • Hold feature (S model) •...

  • Page 6: Specifications Of Hi 93503

    SPECIFICATIONS OF HI 93503 Main features: • HI 765 probes series • Range -50 to 150 °C • Calibration Check feature • Remaining battery life indication / low battery detection • Stability indicator • Hold feature • Auto-off capability • Waterproof casing Range -50.0 to 150.0 °C Resolution...

  • Page 7: Specifications Of Hi 935007

    SPECIFICATIONS OF HI 935007 Main features: • Direct HI 766C K-thermocouple probe • Available in °C • Range -50.0 to 1350 °C • Remaining battery life indication / low battery detection • Auto-off capability • Waterproof casing Range -50.0 to 199.9°C 200 to 1350 °C Resolution 0.1 °C (up to 199.9 °C)

  • Page 8: Operational Guide

    OPERATIONAL GUIDE Each meter is supplied with batteries. Remove the battery cap, un- wrap the supplied batteries and install them while paying attention to their polarity (see also the "Battery replacement" section for more details). TAKING MEASUREMENTS Connect a suitable temperature probe to the meter (see pages 12-14 for a complete list of Hanna probes).
  • Page 9 CALIBRATION CHECK All the models are provided with auto- matic Cal-Check feature at start-up, which allows the user to check the instrument calibration status. If the meter is calibrated, the display will stabilize and show “0.0 °C” (±0.3 °C) in a few seconds. Contact your dealer or your nearest Hanna Service Center for recalibration, if necessary.
  • Page 10 WARNING MESSAGES NO PROBE message If the probe is not connected “NO PROBE” message is displayed. DAMAGED PROBE message When the readings are very far from the reading range, the probe can be dam- aged, “DAMAGED PROBE” message is displayed.

  • Page 11: Battery Replacement

    BATTERY REPLACEMENT When the remaining battery life is less than 10% the battery tag blinks on the display to warn the user. If the battery level is low enough to cause erroneous readings, the Battery Error Preven- tion System (BEPS) turns the meter off. Immediately replace the batteries with new ones.

  • Page 12: Temperature Probes

    TEMPERATURE PROBES Hanna offers a wide range of probes to meet your needs with air, liquid, penetration and surface measurements. All Hanna temperature probes are pre-calibrated at the factory and ready-to-use. These interchangeable probes make it possible to switch from one probe to another without requiring recalibration. Hanna probes are also available in different handle colors to avoid cross contamination during testing.
  • Page 13 HI 762PWL Penetration probe w/1 m (3.3') cable & white handle HI 762W Wire probe without handle for hard-to-reach places w/1 m (3.3') cable HI 762W/10 Wire probe, without handle for hard-to-reach places w/10 m (33') cable FOR HI 9241 AND HI 93503 HI 765A Air probe, w/1 m (3.3') cable &...
  • Page 14 places w/10 m (33') cable FOR HI 935007 HI 766C (*) Penetration, K-type thermocouple probe w/1 m (3.3') cable To be replaced only by authorized service technicians.
  • Page 15 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurement in microwave ovens. Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice.
  • Page 16 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office Printed in EUROPE MAN93501Y 10/10...

This manual is also suitable for:

Foodcare hi 9241Foodcare hi 93501sFoodcare hi 935007Foodcare hi 93503
